Engine - Oil Dipstick Incorrect

84mercedes01

TO: OUR MERCEDES-BENZ PASSENGER CAR DEALERS REF. NO. MBNA 01/4


DATE: April, 1984

SUBJECT: CHECEKING ENGINE OIL DIPSTICK MODEL 107.045


It is possible that engine oil dipsticks with an incorrect distance between the minimum and maximum marks were installed during August to November, 1983 production.
Affected Vehicles


Model Chassis End Number Range

107.045 A001218-A004444


If one of these vehicles is brought in for service or repairs, the oil dipstick must be checked. Dimension "A" (Figure 1) must be 39 mm.. Off dipsticks with A=30 mm must be replaced under warranty.

NOTE: Replacement of dipsticks must also be checked prior to installation.
Parts Information


Handle
Part Name Color Part Number


Oil dipstick Blue 116 010 18 72

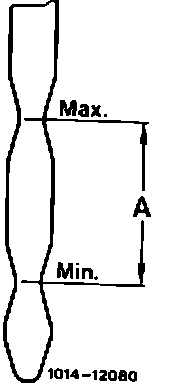

FIGURE 1:

IMPORTANT: All stock of oil dipsticks (Part no. 116 010 18 72) must be checked for the proper "A" dimension (Figure 1). Dipsticks with A=30 mm should be returned with AFA form MBNA 512.
