Mercedes Benz
>>
1984
>>
380SE (126.032) V8-3.8L (116.963)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seats
>>
System Diagram
>>
Power Seats
Power Seats

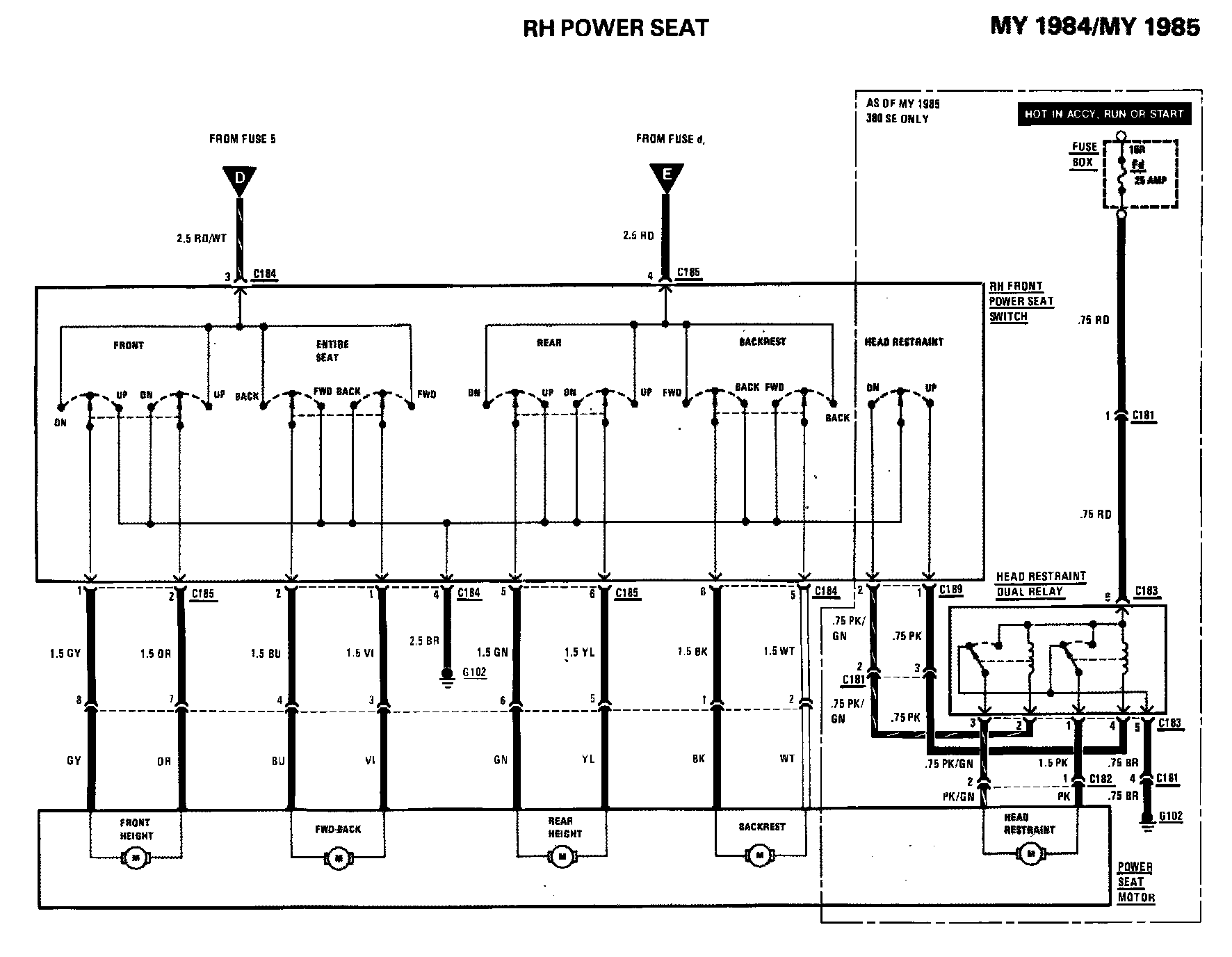

RH Power Seat Part 1:

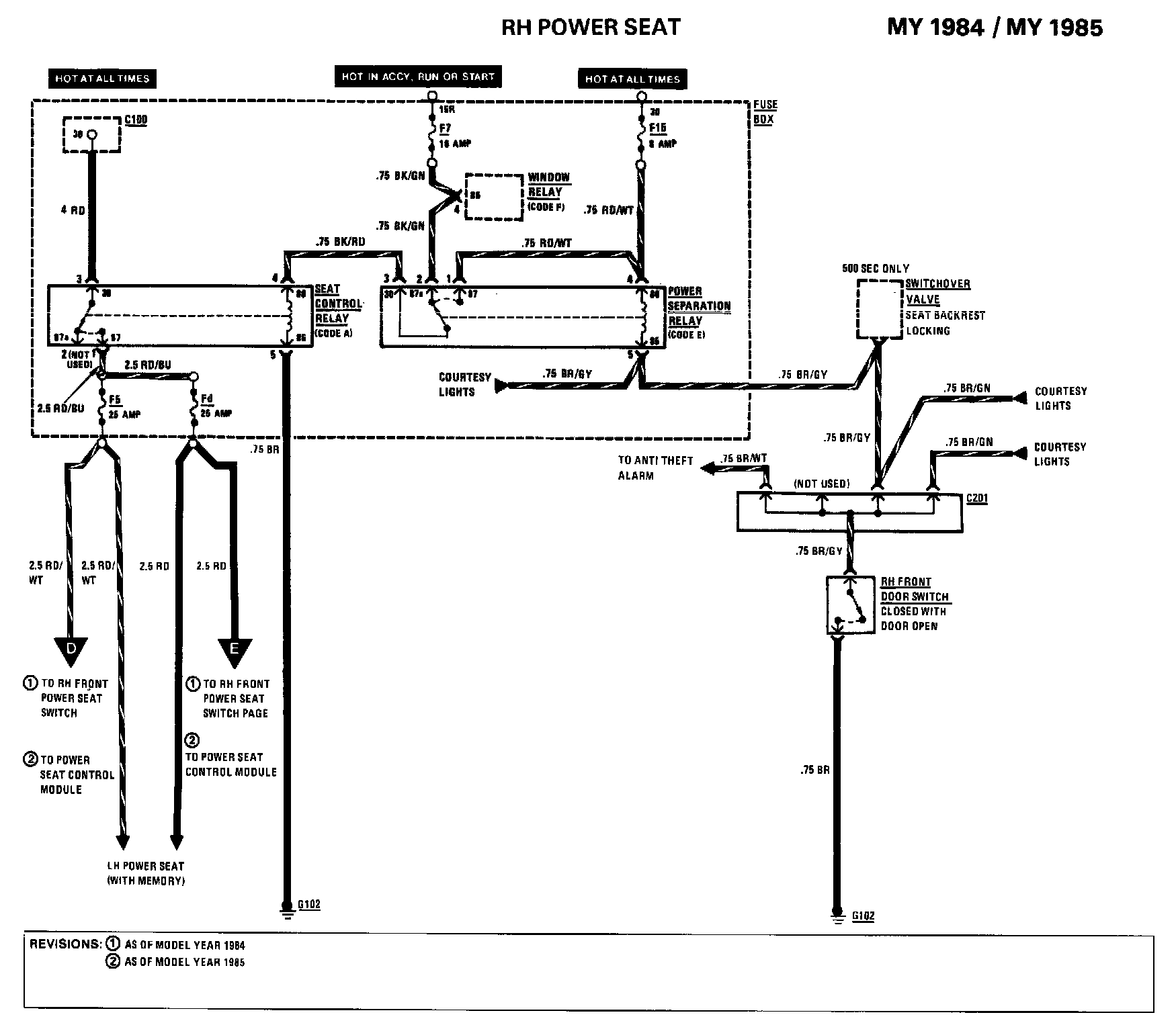

RH Power Seat Part 2:

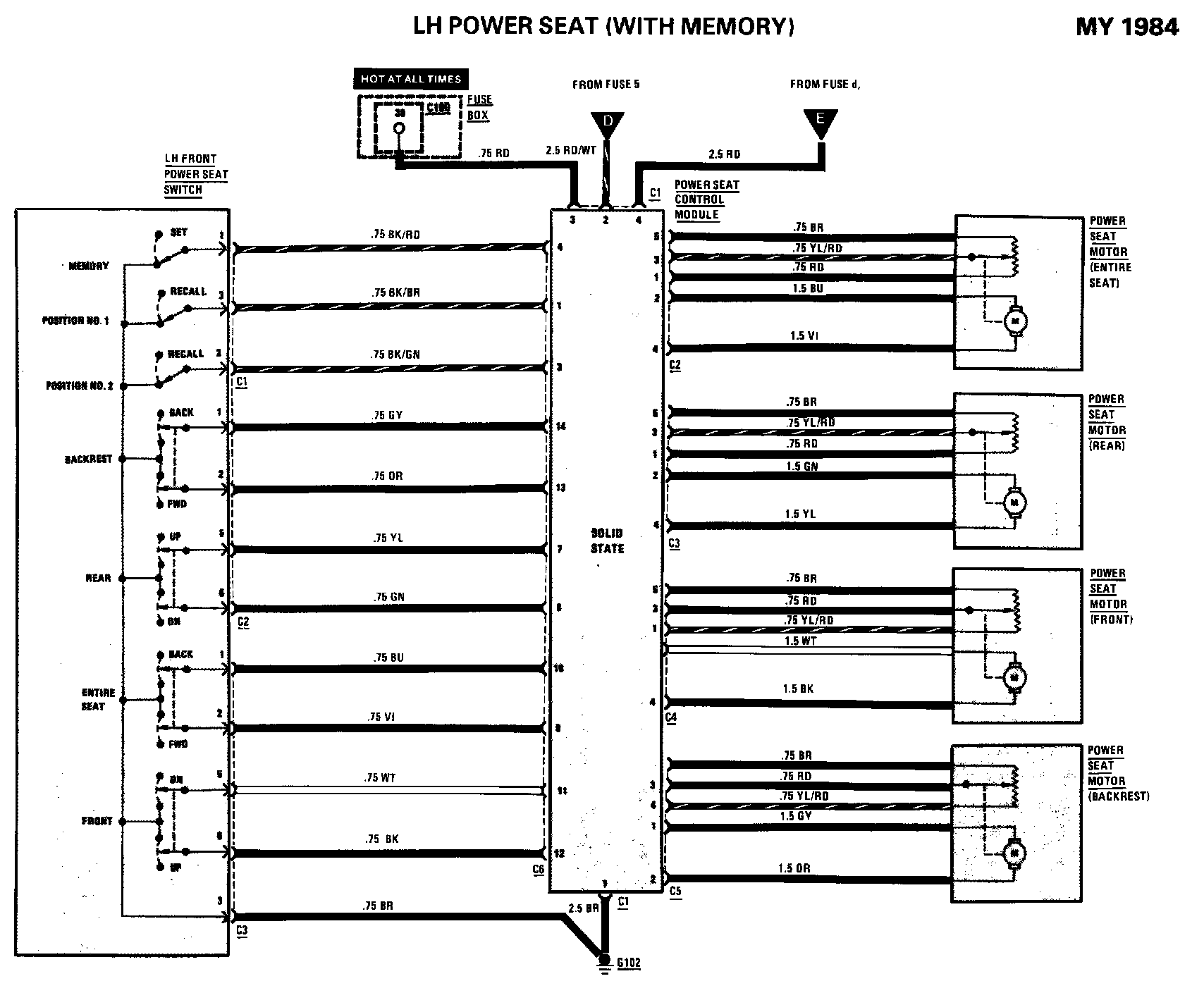

LH Power Seat (With Memory):
LH Power Seat (With Memory):
