Replacement

Tensioning

V-belt A Alternator - coolant pump

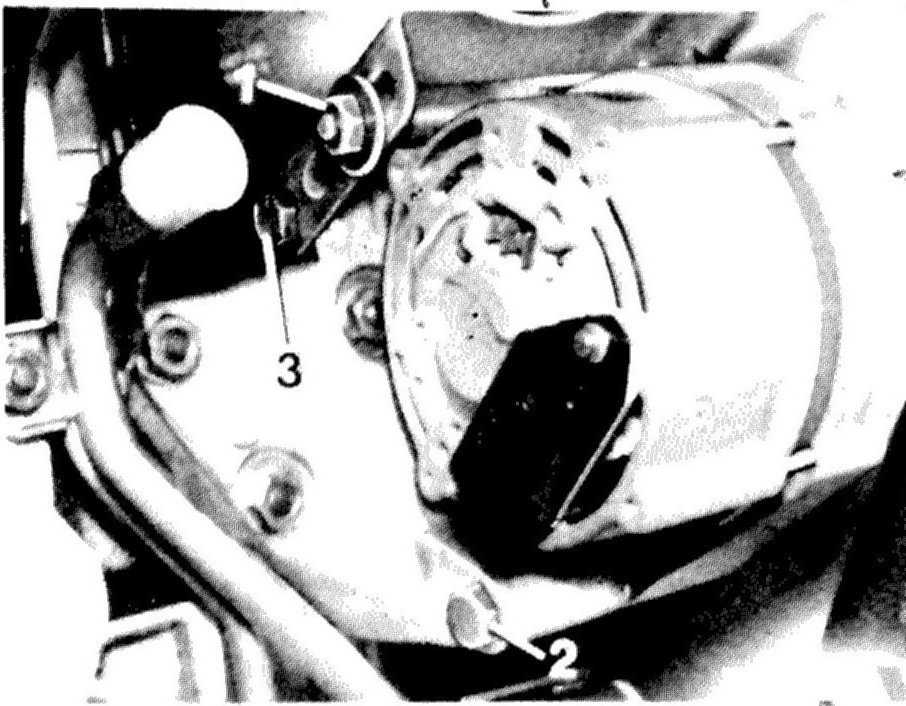

1 Loosen nut (1) and screws (2 and 3).

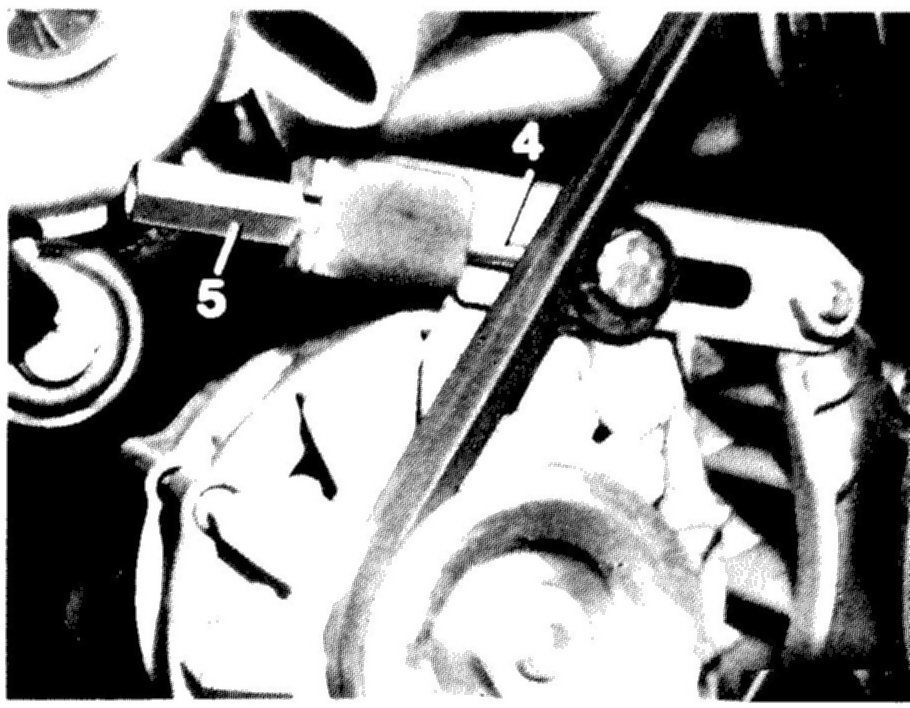

2 Tension V-belt by means of nut (5) of tensioning screw (4).
3 Tighten nut (1) and screws (2 and 3).
4 Continue turning nut (5) by approx. 1/4 to 1/2 turn (to tight seat).


V-belt B Refrigerant compressor

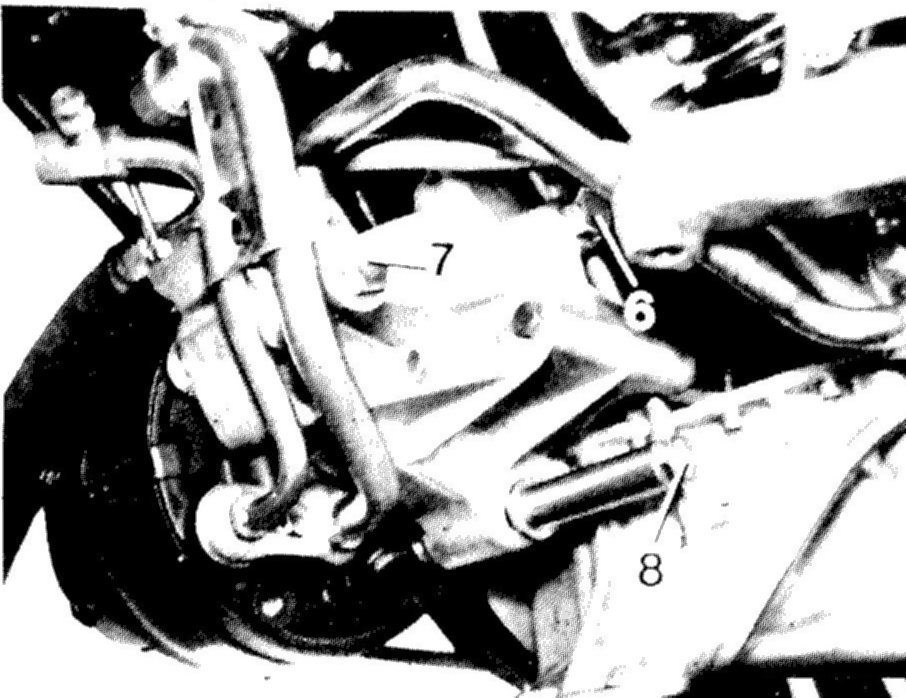

1 Loosen screws (6, 7 and 8).





2 Tension V-belt by means of nut (9) of tensioning screw (10).
3 Tighten screws (6, 7 and 8).


V-belt C Power steering pump

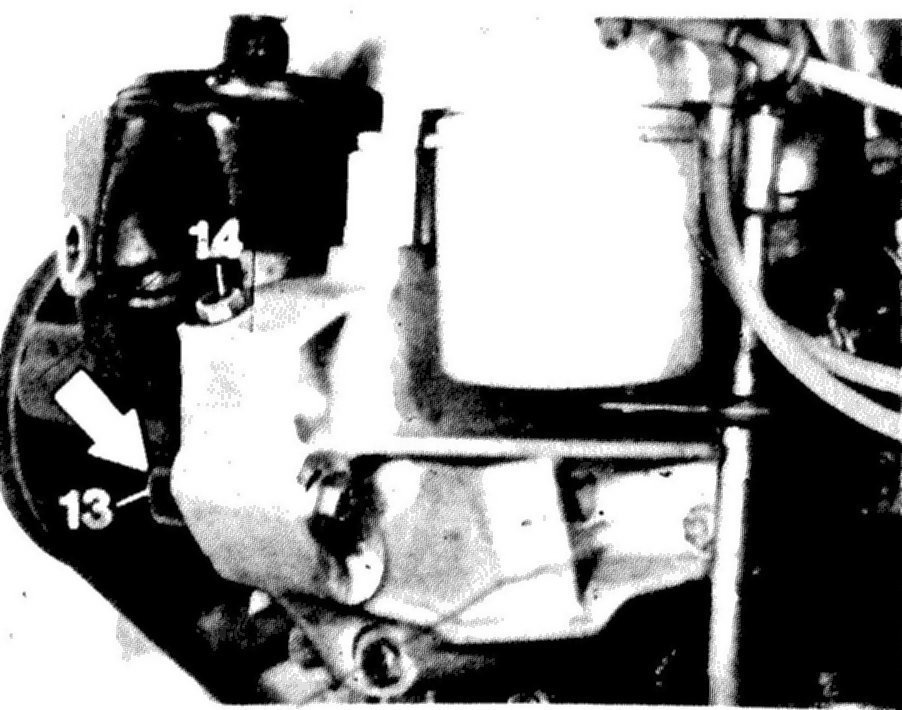

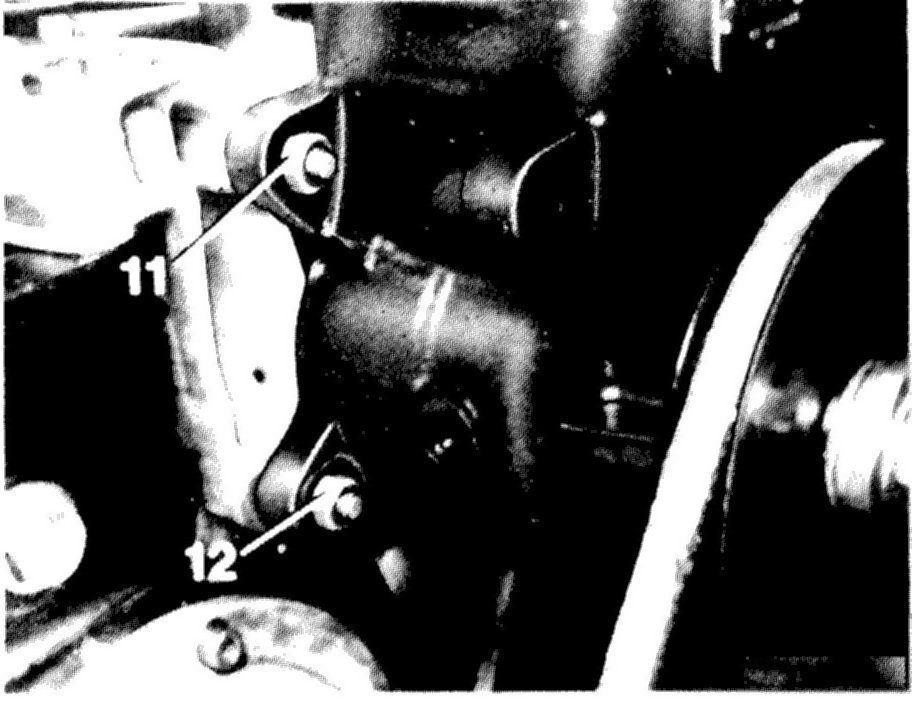

1 Loosen nuts (11, 12 and 13).





2 Tension V-belt by means of tensioning screw (14).
3 Tighten nuts (11, 12 and 13).
