Mercedes Benz
>>
1984
>>
300SD (126.120) L5-3.0L DSL Turbo (617.951)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
System Diagram
>>

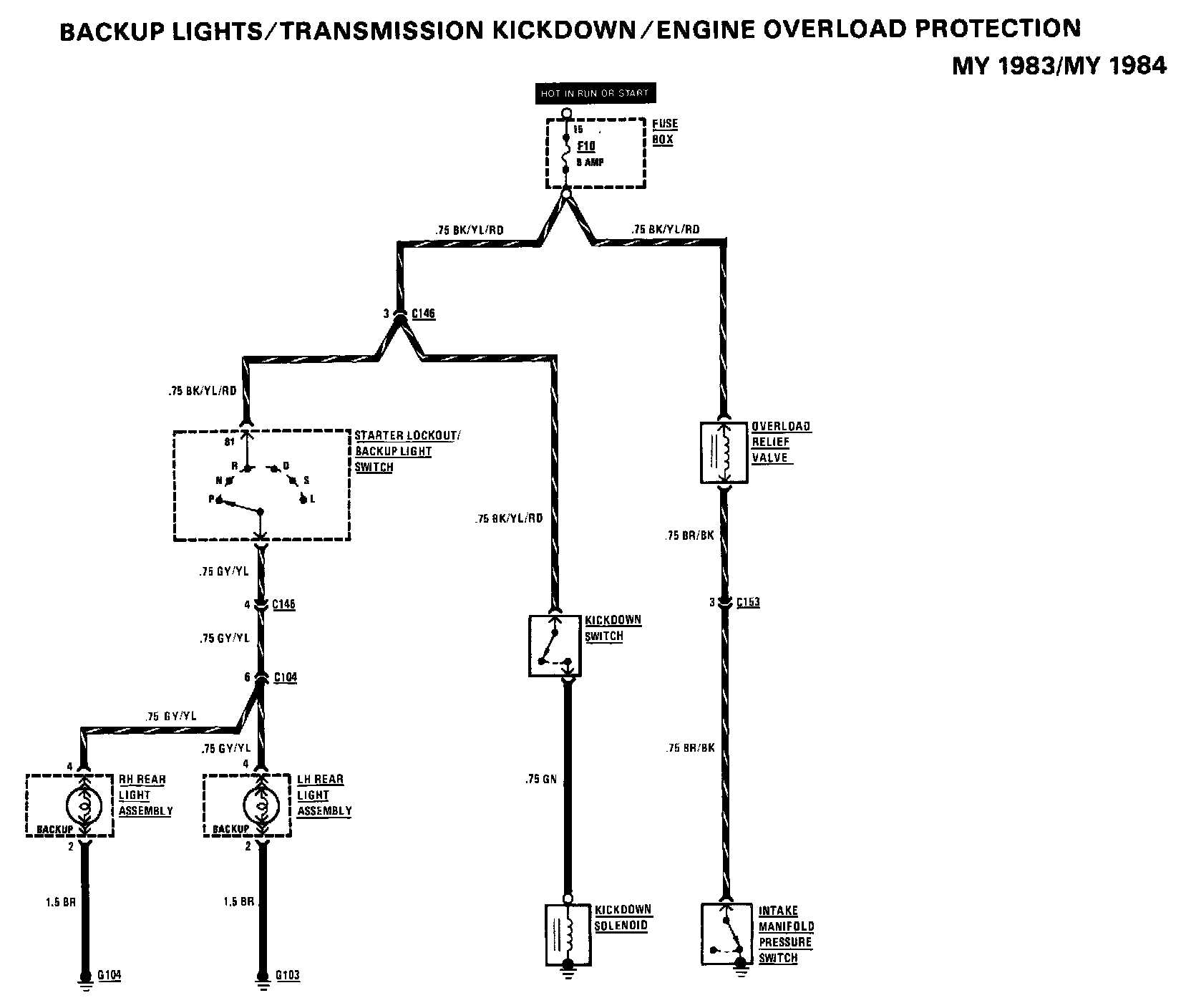

Backup Lights/Transmission Kickdown/Engine Overload Protection
Backup Lights/Transmission Kickdown/Engine Overload Protection
