Mercedes Benz
>>
1984
>>
190E 2.3 (201.024) L4-2.3L (102.961)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Testing and Inspection
>>
Testing Electrical Components of CFI System
>>
Test Specifications
>>

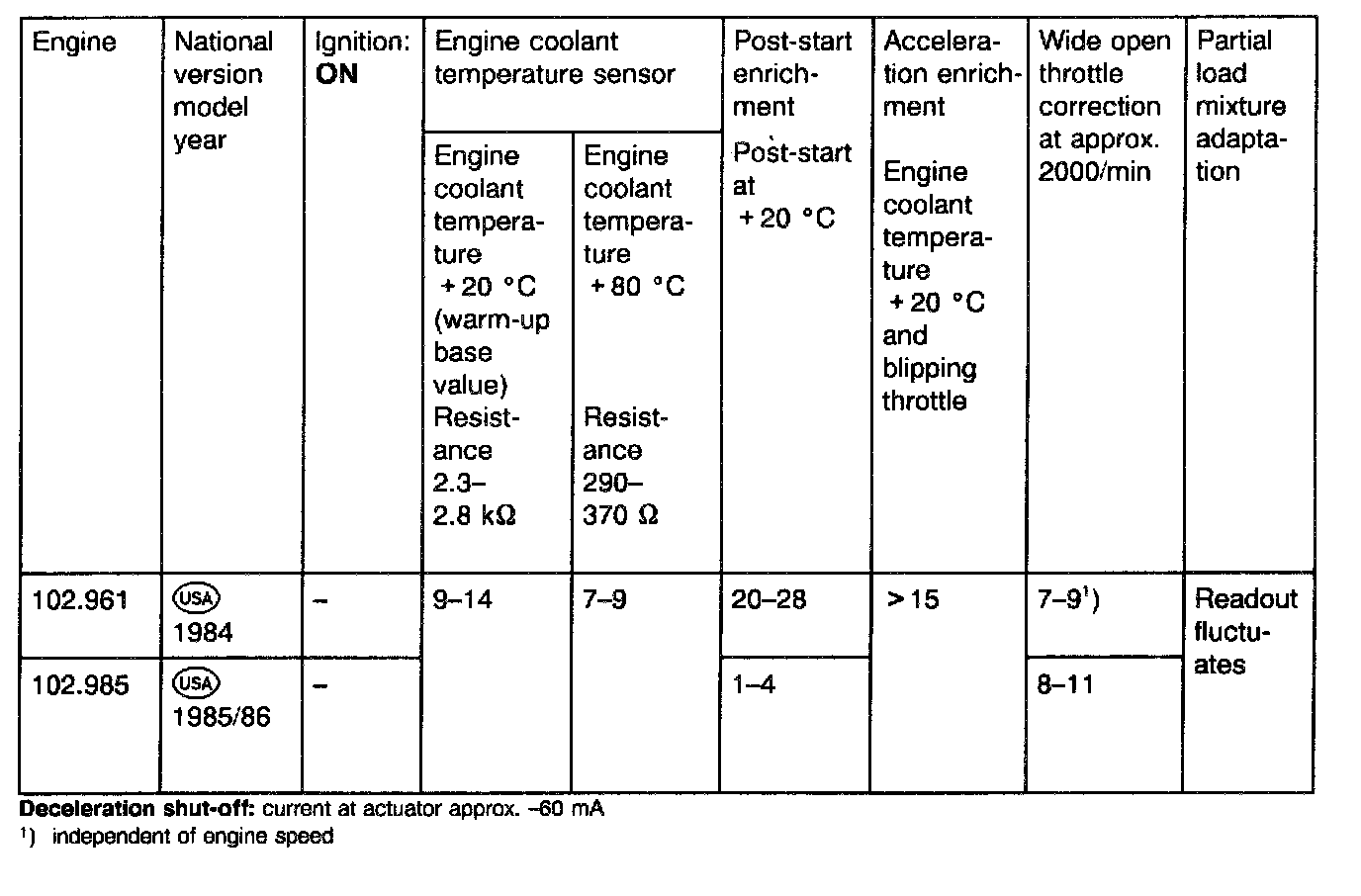

Electrical Test Data (current at actuator in mA)
Electrical Test Data (current at actuator in mA)
