Engine - Oil Capacity and Dipstick Modified

84mercedes01

TO: OUR MERCEDES-BENZ PASSENGER CAR DEALERS


DATE: August, 1984 REF. NO. MBNA 01/3

SUBJECT: A. MODIFIED OIL CAPACITY AND OIL DIPSTICK, ENGINE 617.95 MODELS 123.133/153/193 AND 126.120
B. MODIFIED ENGINE OIL DIPSTICK, ENGINE 601 MODEL 201.122

FIGURE 1:

A.. Modified Oil Capacity and Oil Dipstick, Engine 617.95


Since April 1984, the oil pan is filled with 6.5 liters (6.9 quarts) of oil. The maximum mark on the dipstick has been changed accordingly and the handle is now light brown (previously white).
Production Phase-In


As of end number
Model chassis engine

123.133
A149156
123.153

079031

123.193 F022506


126.120 A069495 065502


A = previous dipstick (white) L = 22 mm B = modified dipstick (lt. brown) L = 28 mm
CAUTION! During oil and filter change, note the dipstick handle color.
Oil Quantity


During off and Oil pan
Color of
filter change max./min.

dipstick handle

8.0 1 (8.5 qts.) 6.5/4.5 1 (6.9/4.8 qts.) Light brown
[previously 7.5 1 (7.9 qts.)] (previously 6.0/4.5 1 (previously white)

(6.3/4.8 qts.] Parts Information


Part Name Previous Part Number


New Part Number


Oil dipstick 617 010 06 72


617 010 08 72*


*When supplies of part no. 617 010 06 72 are used up, only part no. 617 010 08 72 will be supplied. The modified dipstick can be used in previous engines.

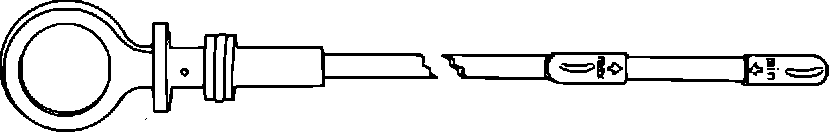

FIGURE 2 - MODIFIED DIPSTICK:

B. Modified Engine Off Dipstick, Engine 601 Model 201.122

Since May 1984, dipsticks with plastic tabs indicating the maximum and minimum engine oil levels have been installed. The modified dipstick can be used in previous 601 engines.

NOTE: The new dipstick is not yet available as a replacement part. Stock of the previous dipstick should be used up.

IMPORTANT: Engine oil capacity has not changed.
