Home >> Mercedes Benz >> 1984 >> 190D 2.2 (201.122) L4-2.2L DSL (601.921) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> Ground Distribution >> W9

W9

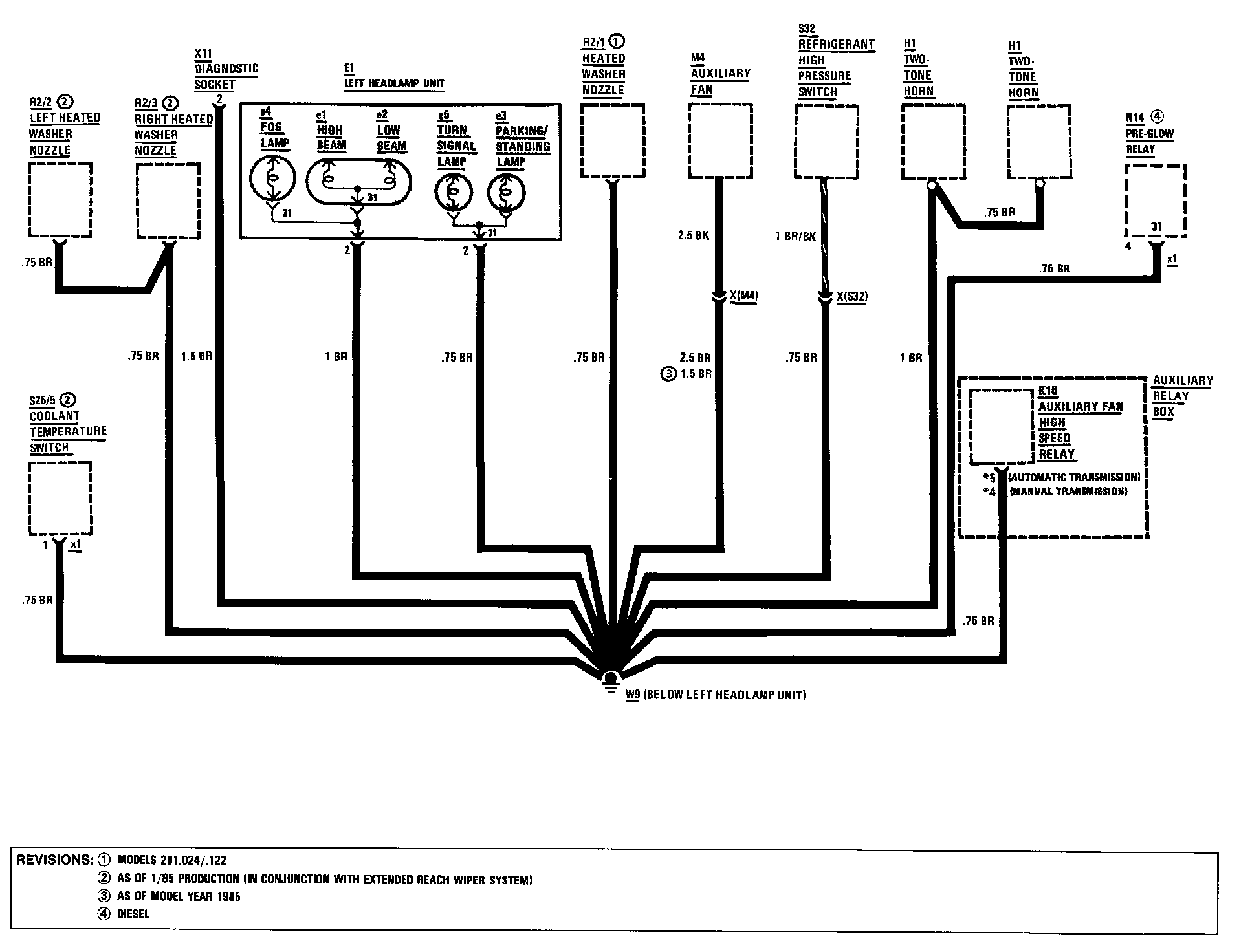

Ground Distribution, W9:
