Mercedes Benz
>>
1983
>>
300CD (123.153) L5-3.0L DSL Turbo (617.952)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Glow Plug System
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

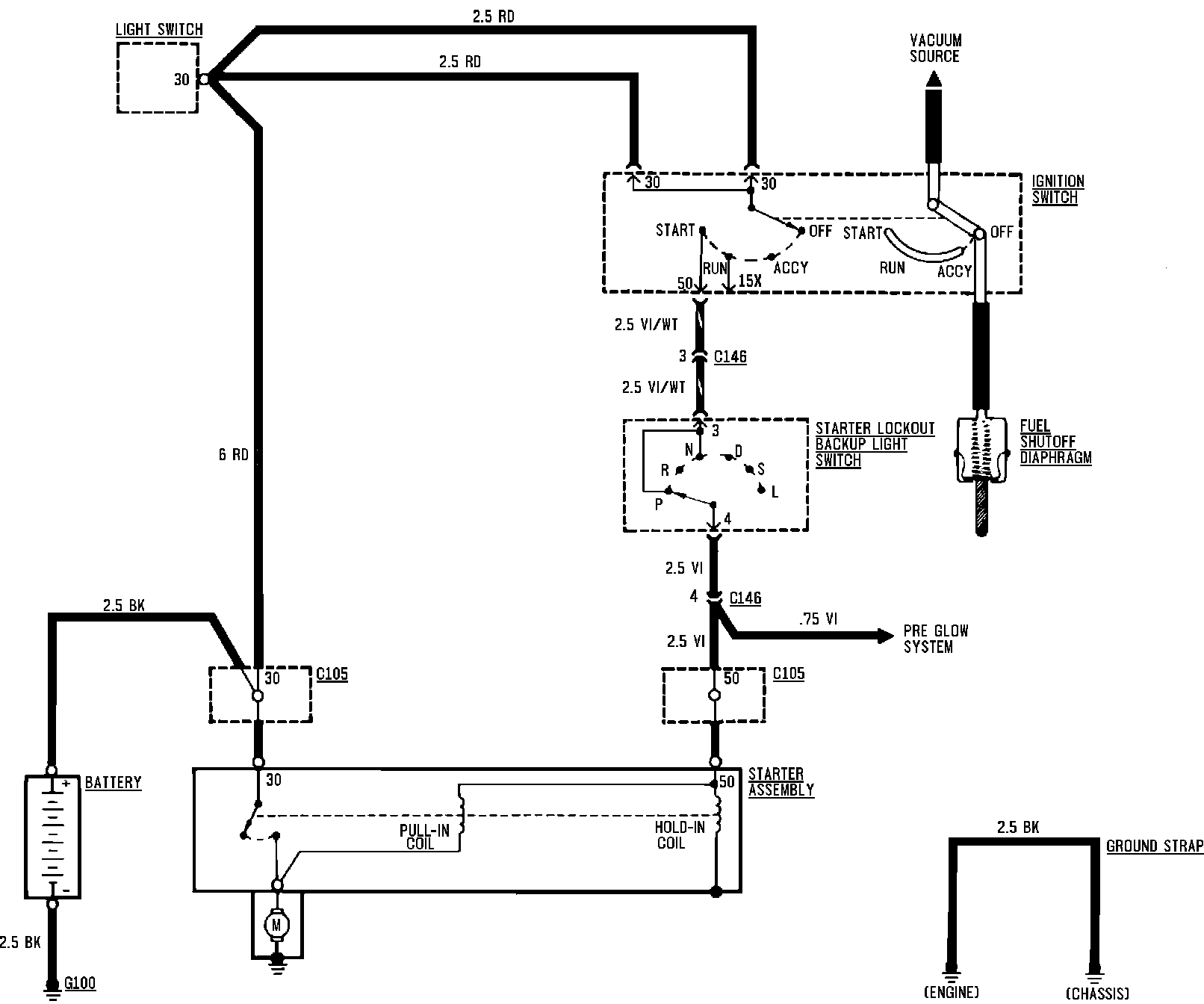

Start/Stop System (Ignition Switch - Also See Power Distribution):
