Air Register: Service and Repair

Right, Left Ring Nozzle

Removal
1. Remove respective cover under instrument panel.

Ring Nozzle:

2. Pull connecting hose from ring nozzle.

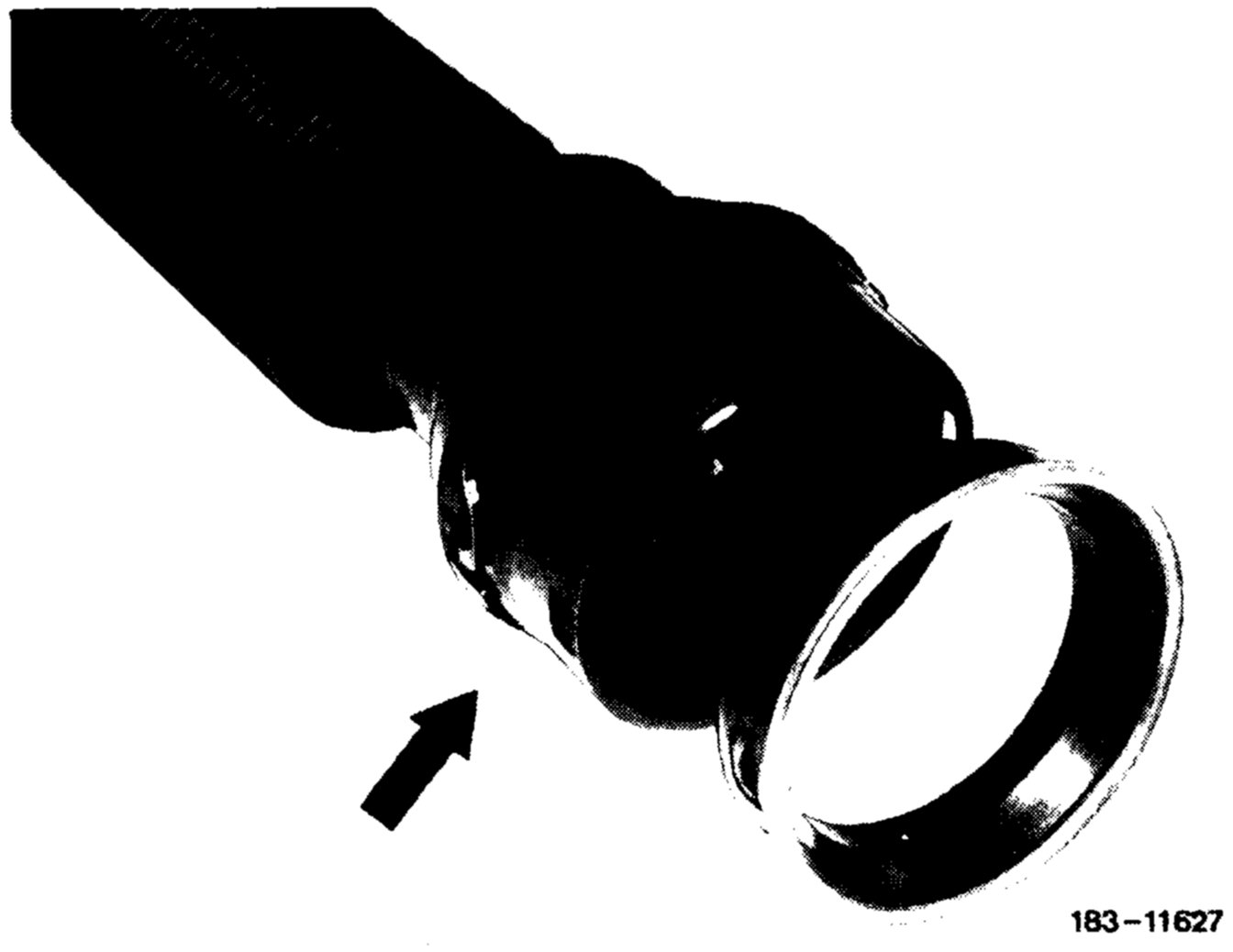

3. Turn ring nozzle lower half slightly while holding ring nozzle upper half in position.
4. Pull ring nozzle upper half out of instrument panel.

Installation
1. Insert ring nozzle upper half into instrument panel.

Ring Nozzle Link:

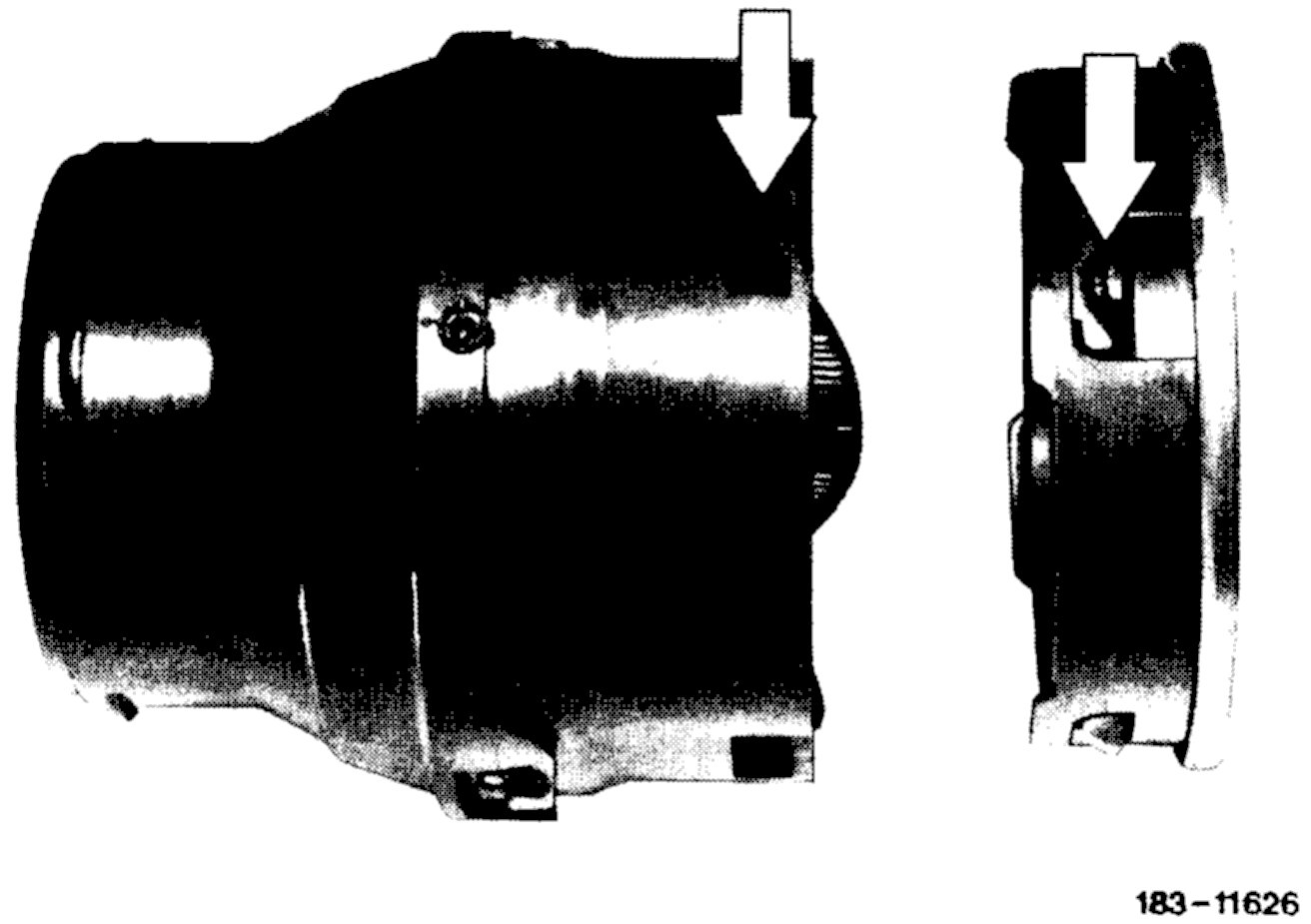

2. Push ring nozzle lower half from rear of instrument panel against upper half, making sure all four links will engage in recess provided.
3. Attach connecting hoses.
4. Mount lower cover.
