Mirrors - Replacement, Rear View Mirror Glass/Housing
84mercedes03TO:OUR MERCEDES-BENZ PASSENGER CAR DEALERS
DATE: February, 1984 REF. NO. 88/28
SUBJECT: A.. REMOVAL OF EXTERIOR REAR VIEW MIRROR GLASS
B. REPLACEMENT OF EXTERIOR REAR VIEW MIRROR HOUSING MODEL 126

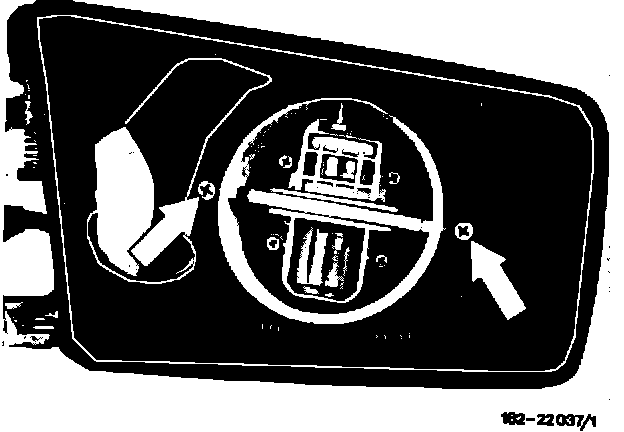

FIGURE 1:
A. Removal of Exterior Rear View Mirror Glass
CAUTION: To avoid damage to the motor drive or the mirror glass holder, be sure to unhook both ends of the retaining wire (Figure 1, arrows) before pushing out the glass.

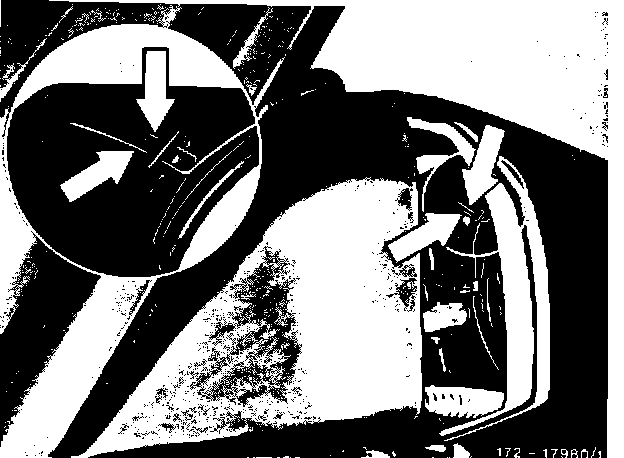

FIGURE 2:
B. Replacement of Exterior Mirror Housing
NOTE: The housing of the rear view mirror is available as a replacement part. If only the housing is damaged, it is not necessary to replace the entire rear view mirror assembly.
Mirror Housing Replacement
1. Remove mirror glass (see section A)
2. Remove mounting screws (Figure 2, arrows), remove housing and replace.
3. Hook-in both ends of retaining wire on new glass holder.
4. Push mirror glass on mounting ring until retaining wire is heard engaging.
Parts Information
Part Name Part Number
Left exterior mirror
housing (manual) 126 811 01 60*
Right exterior mirror
housing (electrical) 126 811 02 60*
*Include color code with order
Time Allowance
02 8816 01 Exterior Mirror Housing, Replace 0.3 hour
