Speedometer Replacement

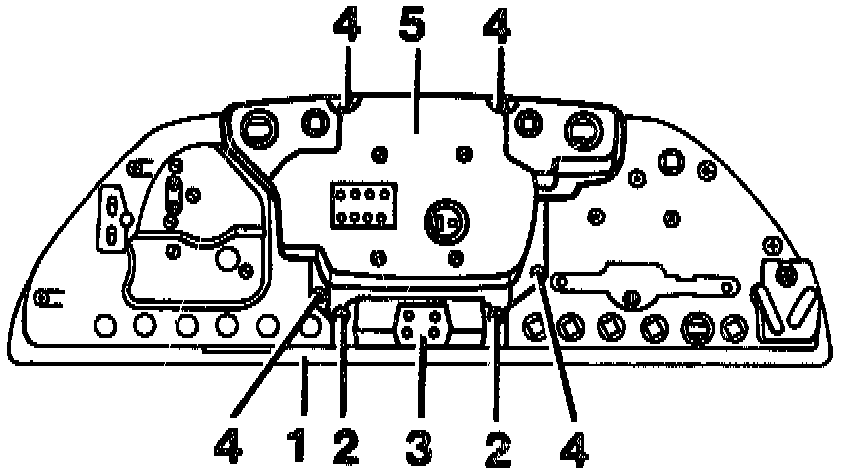

Removal:




- Remove instrument cluster (1). Remove/Install Instrument Cluster
- Remove screws (2).
- Remove outside temperature gauge (3).
- Remove screws (4).
- Remove speedometer (5).

Installation:
- Insert speedometer (5).
- Reinstall screws (4).
- Insert outside temperature gauge (3).
- Reinstall screws (2).
- Reinstall instrument cluster (1).

NOTE: When replacing the speedometer on vehicles with ASD or ASR it is necessary to install the function display from the speedometer removed in the new speedometer.
