Vacuum Reservoir HVAC: Service and Repair

Removal
1 Remove bulkhead on left below front fender.

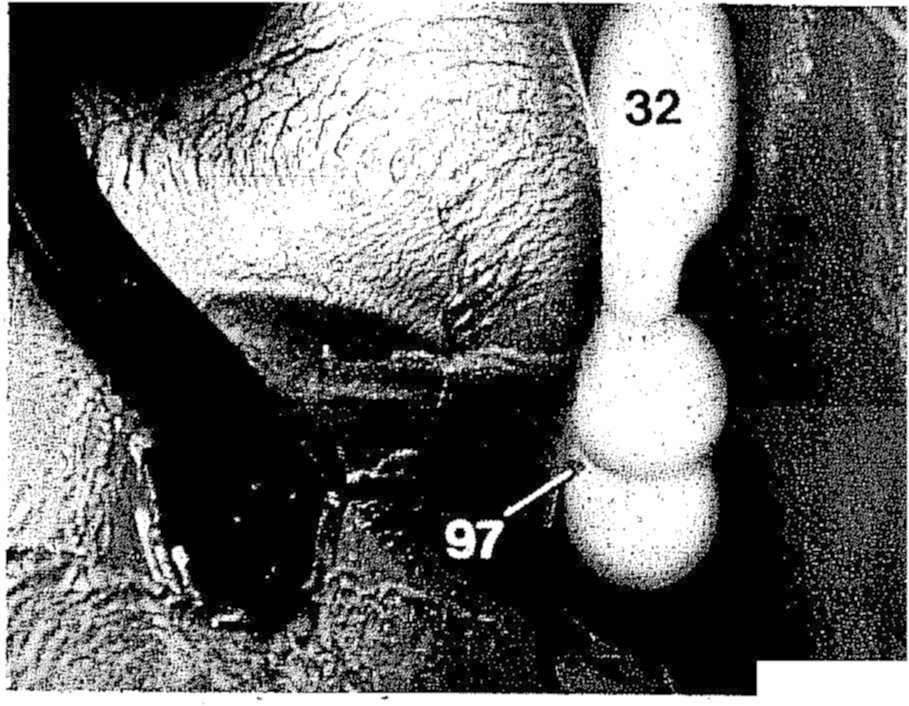

2 Remove screws (97) and take out vacuum reservoir downward.
3 Detach vacuum lines (see arrow).

Installation
For installation proceed vice-versa.
