Rear Compartment Nozzles

Register at Rear of Center Console

Removal

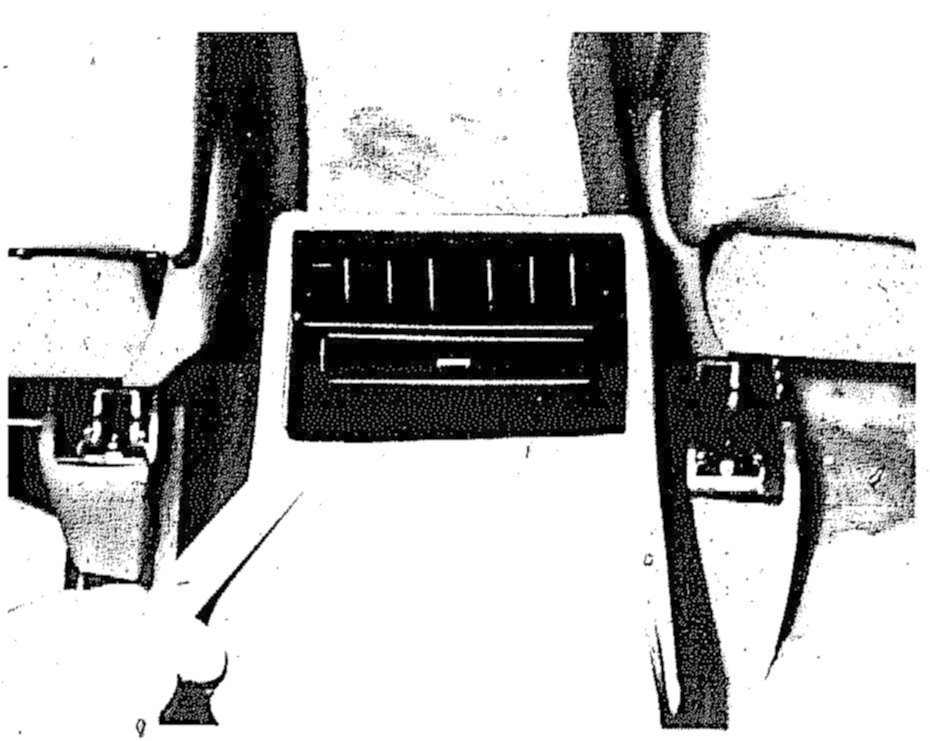

1 Press off operating lever button.





2 Unclip frame on bottom left and right and remove from center console.

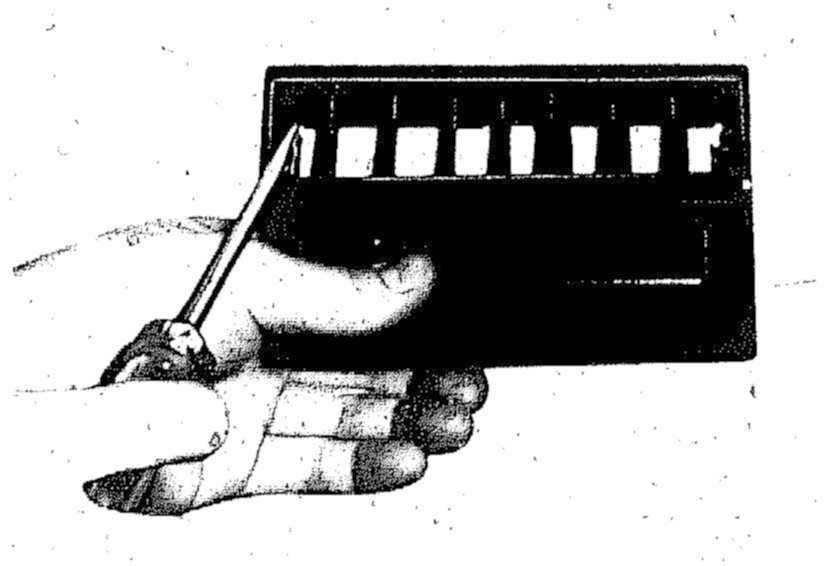

3 Press in retaining clamps on left and right and remove Venetian blinds to the rear.


Installation
4 The parts are installed in the reverse sequence.
