Cover at Fresh Air Inlet

Removal
1 Raise hood to 90 °C position.

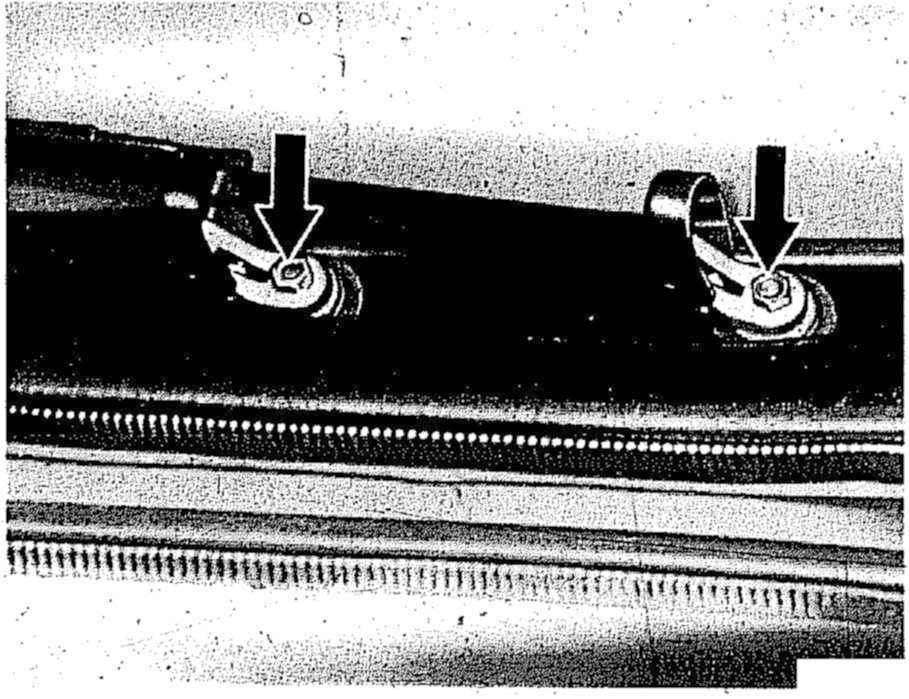

2 Raise cover cap on wiper arm left and right and remove nuts located below.
3 Raise wiper arms and detach. On the right hand side remove wiper blade beforehand.

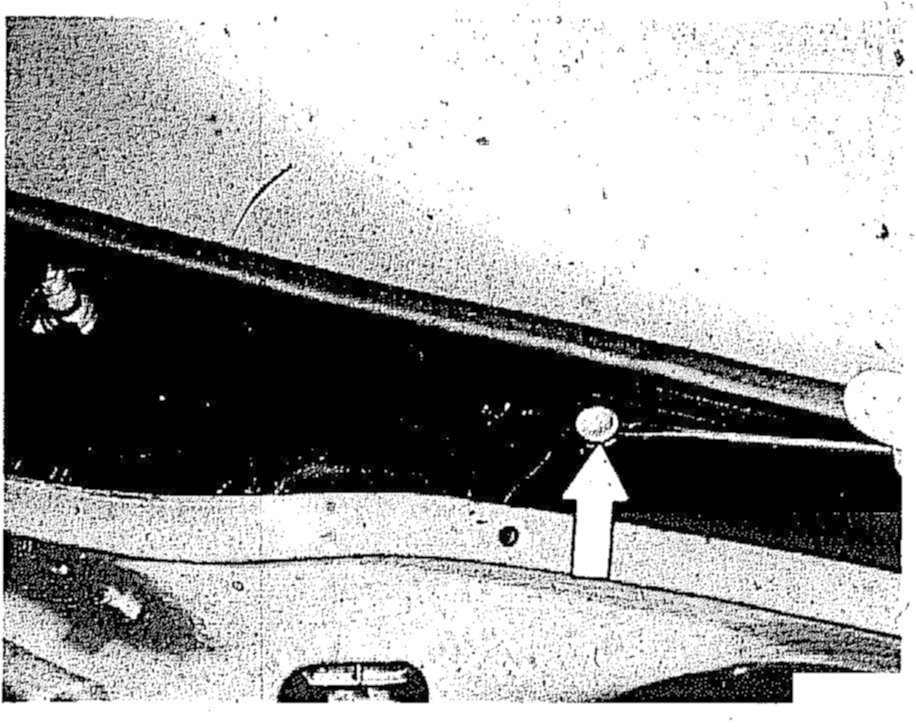

4 Remove seal above wiper axle on left and right.
5 Remove rubber seal on firewall upward.

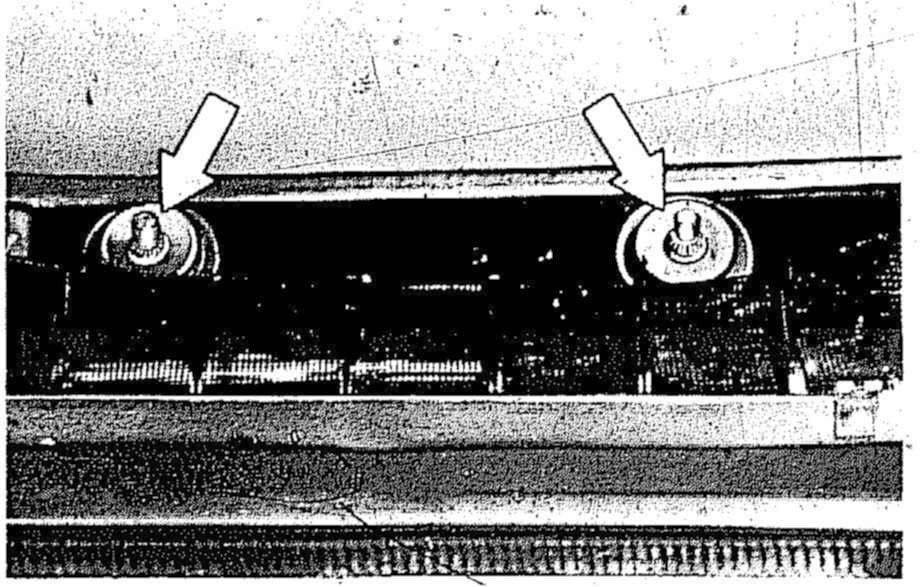

6 Press off clips for fixing cover above wiper motor.

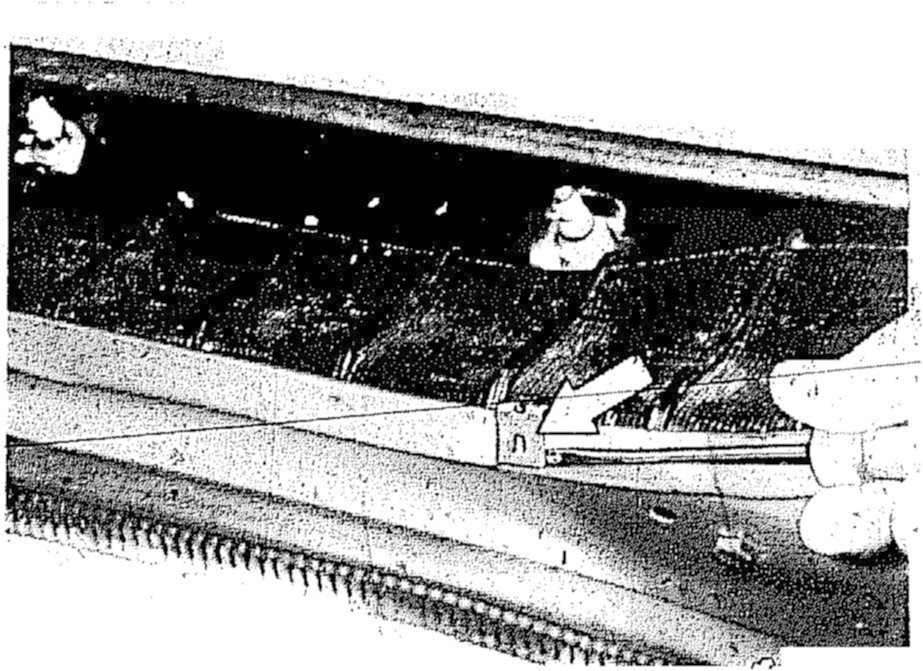

7 Press out plastic clips on parting point of cover.

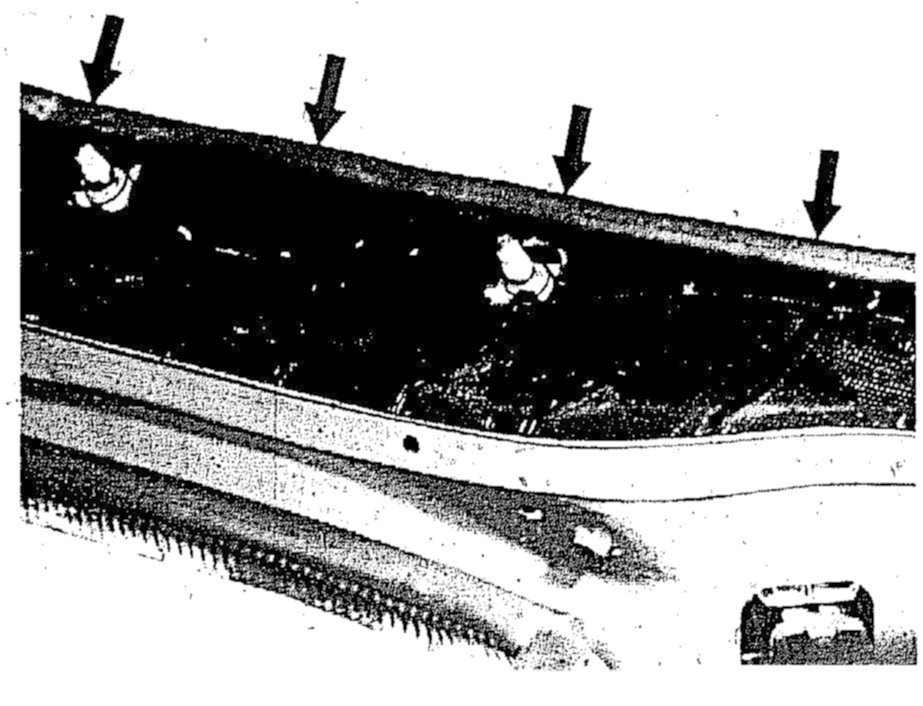

8 Remove rubber seal between cover and windshield.







9 Raise cover at front left and remove from windshield
10 Raise cover at front right and detach from windshield.

Installation
11 The parts are installed in the reverse sequence.
