Bowden Cable For Fresh Air on Left From Plug Connection

Removal


1 Remove cover on left below instrument panel
2 Loosen side facing on left of center console as far as necessary.

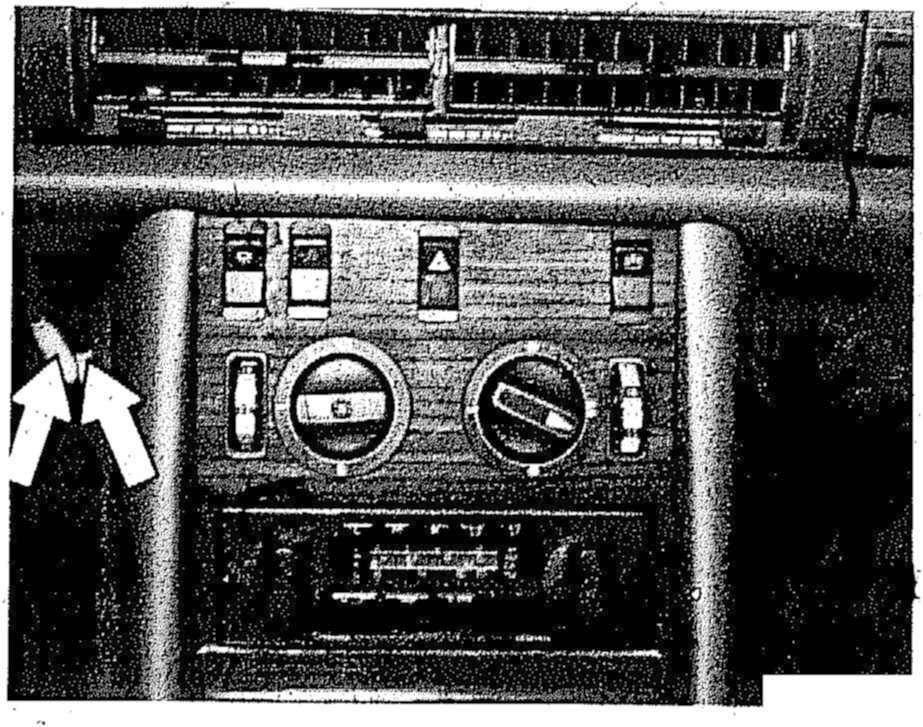

3 Detach Bowden cable (see arrow).

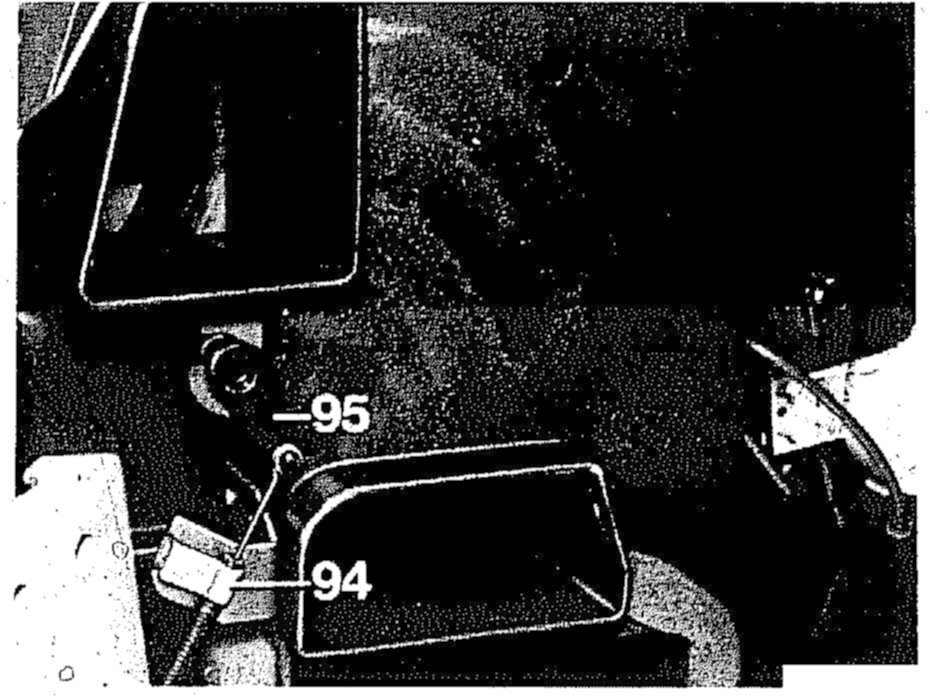

4 Lift off securing clamp (94) with screwdriver and detach Bowden cable at control lever (95).

Installation
5 Insert Bowden cable at control lever (95) and fit securing clamp (94).

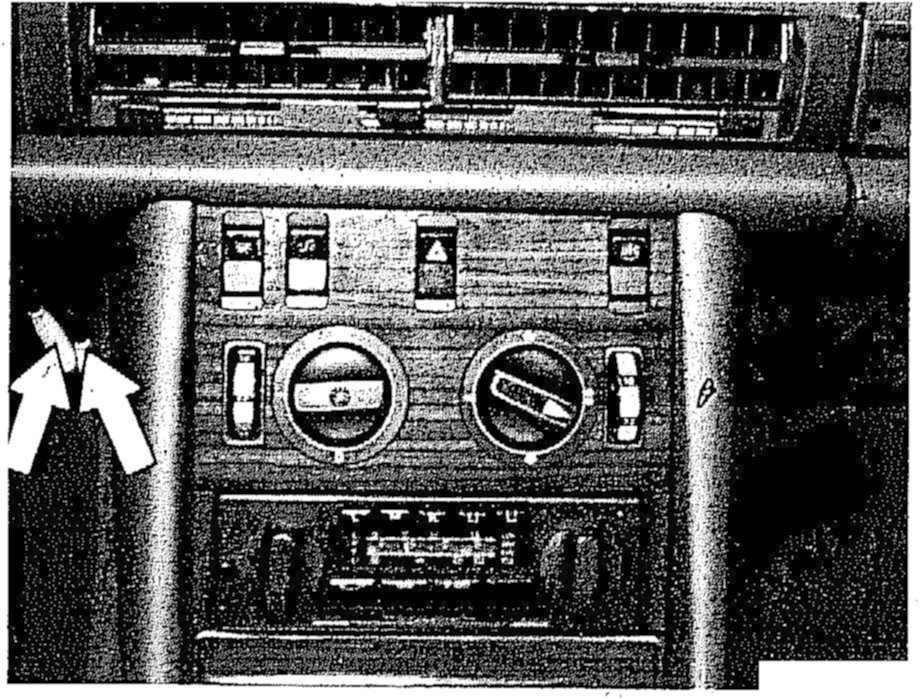

6 Insert Bowden cable. (see arrow).
7 Check function of left side nozzle flap, correctly adjusting Bowden cable if necessary by turning knurled screw.
8 Fit side facing on center console.
9 Install cover on left below instrument panel
