Mercedes Benz
>>
1982
>>
380SEC (126.043) V8-3.8L (116.963)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>

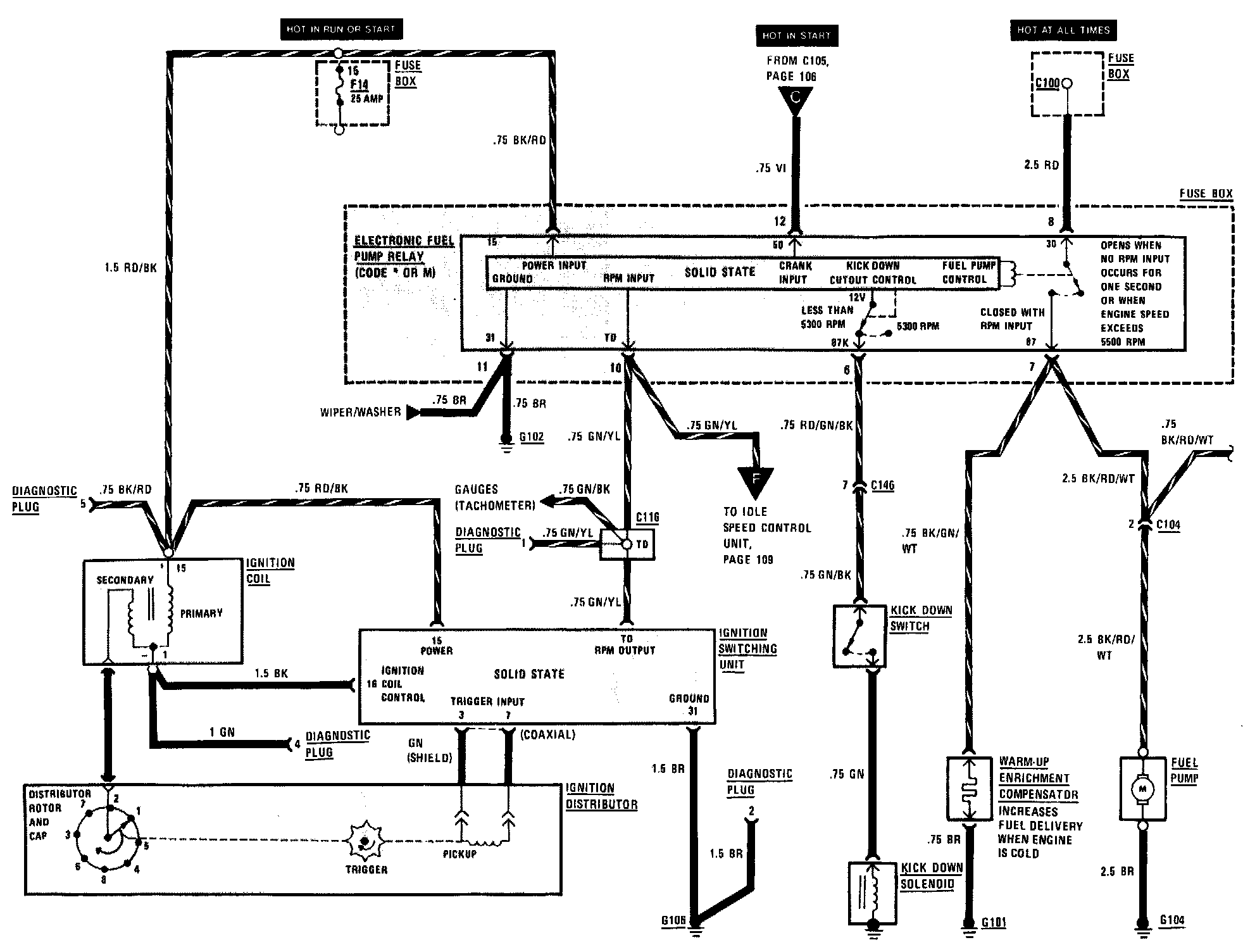

Part 2 of 4 : Ignition/Fuel Delivery/Transmission Kickdown
Part 2 of 4 : Ignition/Fuel Delivery/Transmission Kickdown
