Rear Bumper: Service and Repair

Rear bumper removal and replacement

Removal

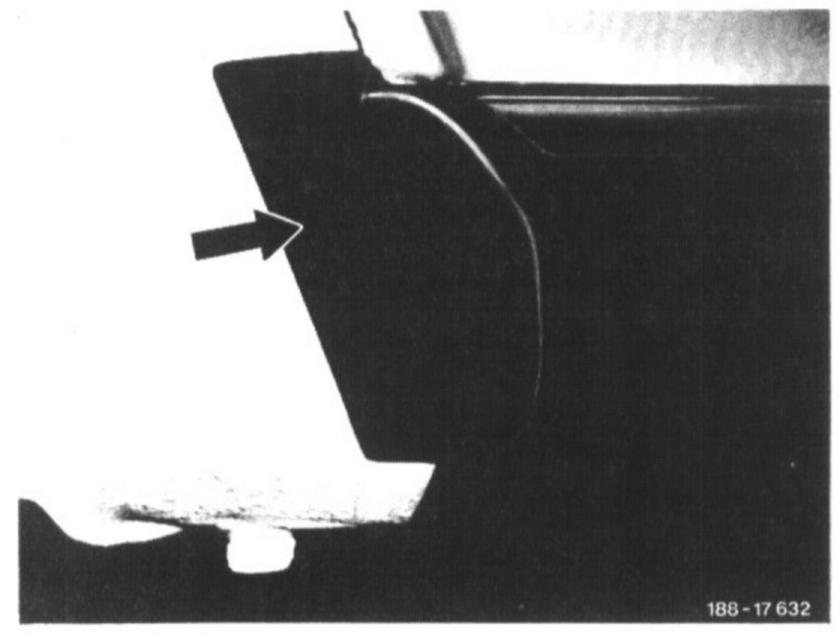

1. Remove cover in wheel house rear at left and right.

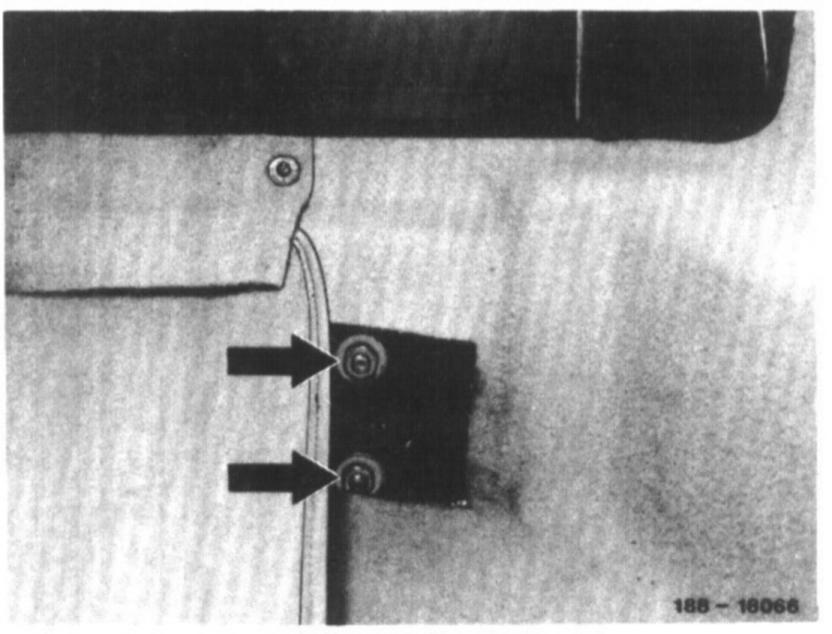

2. Unscrew fastening nuts in trunk at left and right
3. Pull out bumper toward the rear.

Installation

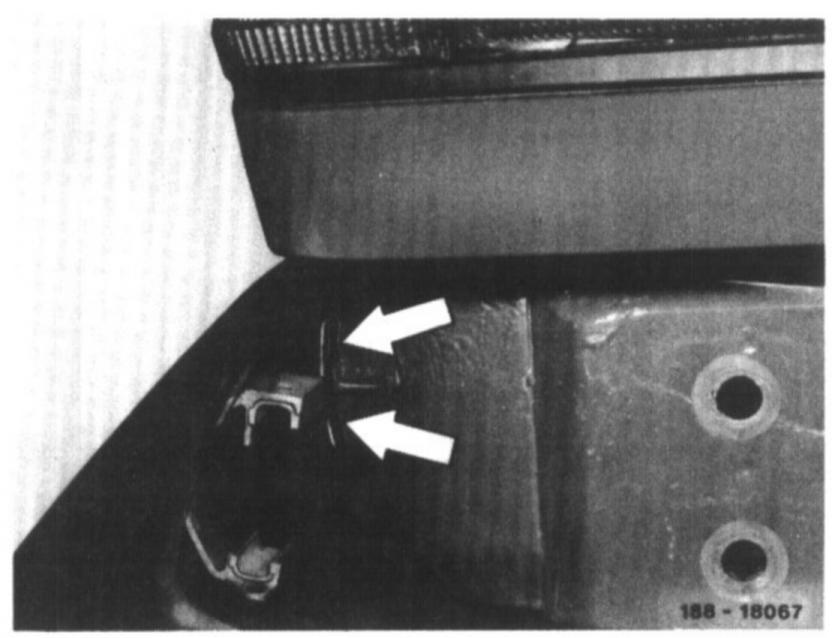

4. Introduce bumper at rear vent and push forward.
5. For further installation proceed vice versa.

Note: On vehicles with SA-trailer coupling, refinish bumper.
