Starter Motor: Service and Repair

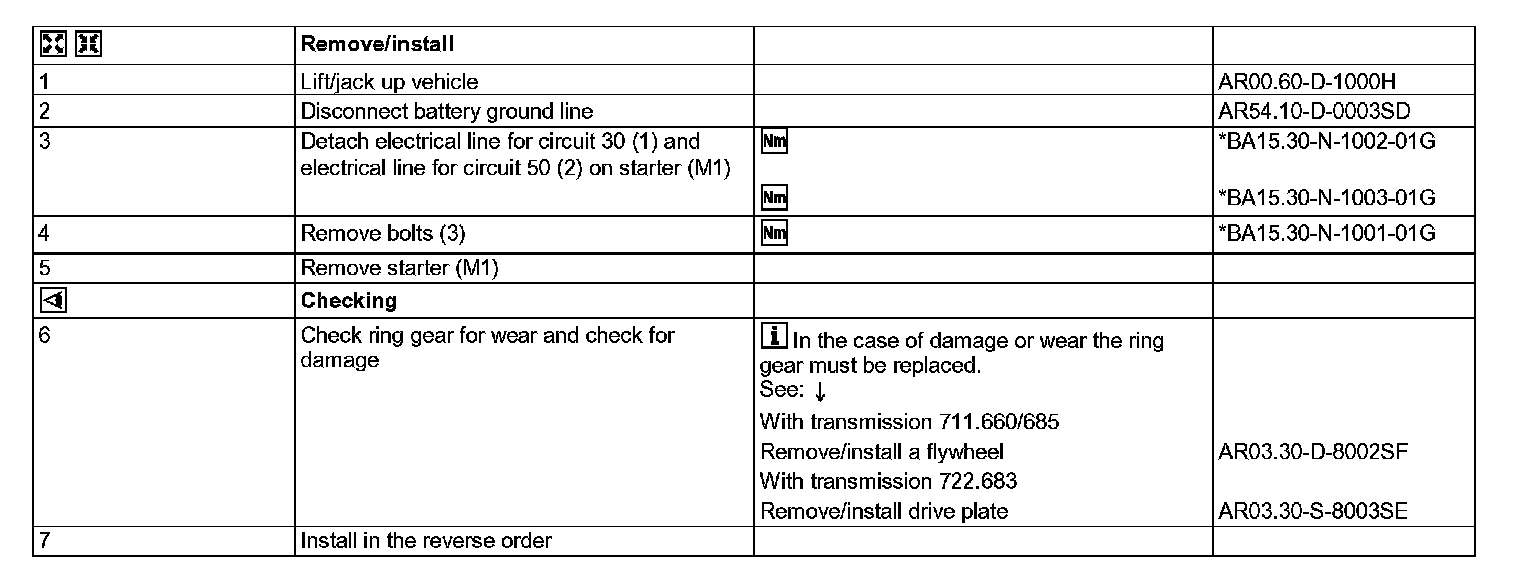

AR15.30-D-7100SF Remove/Install Starter

ENGINE 642.898 in MODEL 906 with TRANSMISSION 722.683







1 Electric line circuit 30
2 Electric cable circuit 50
3 Bolts

M1 Starter
