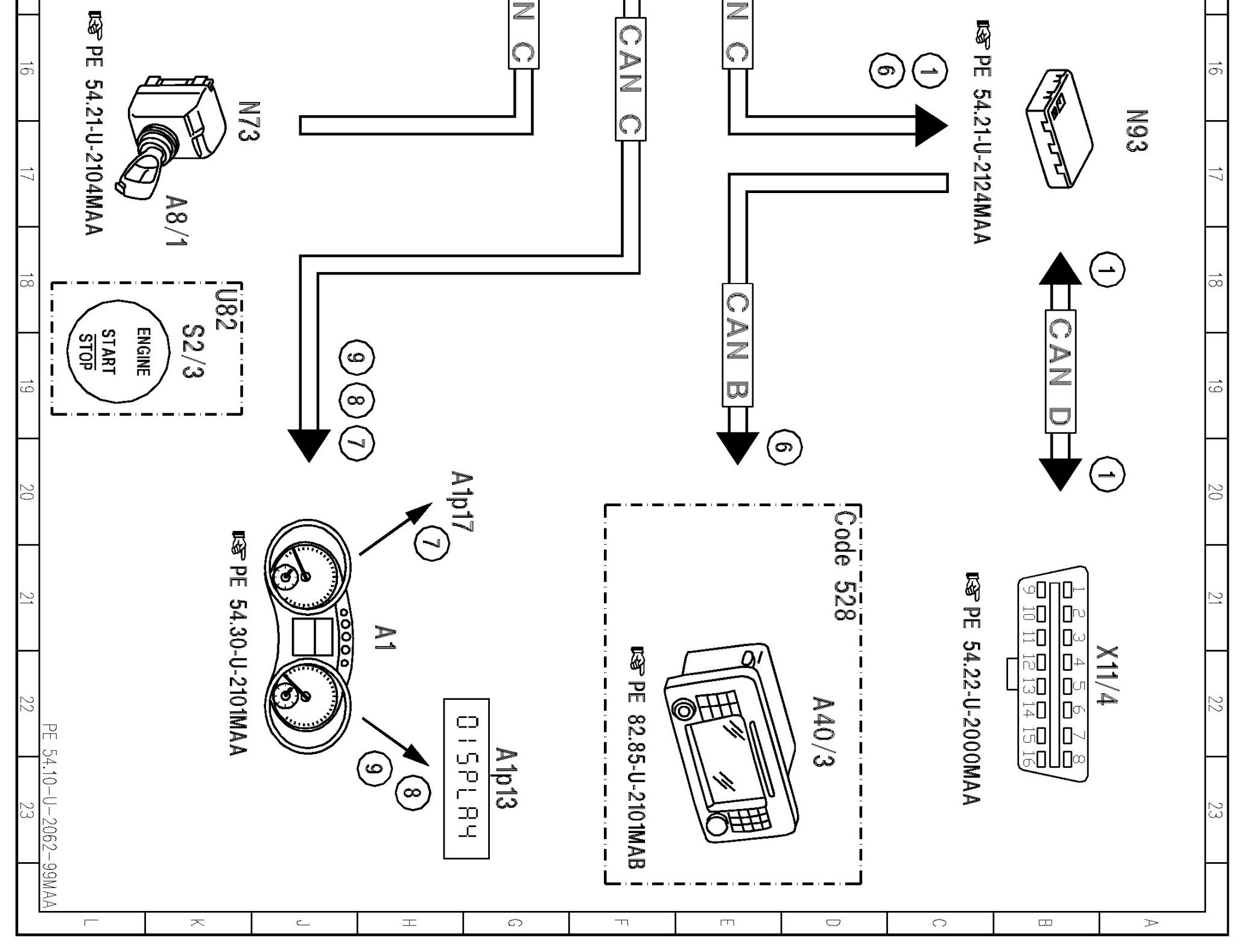

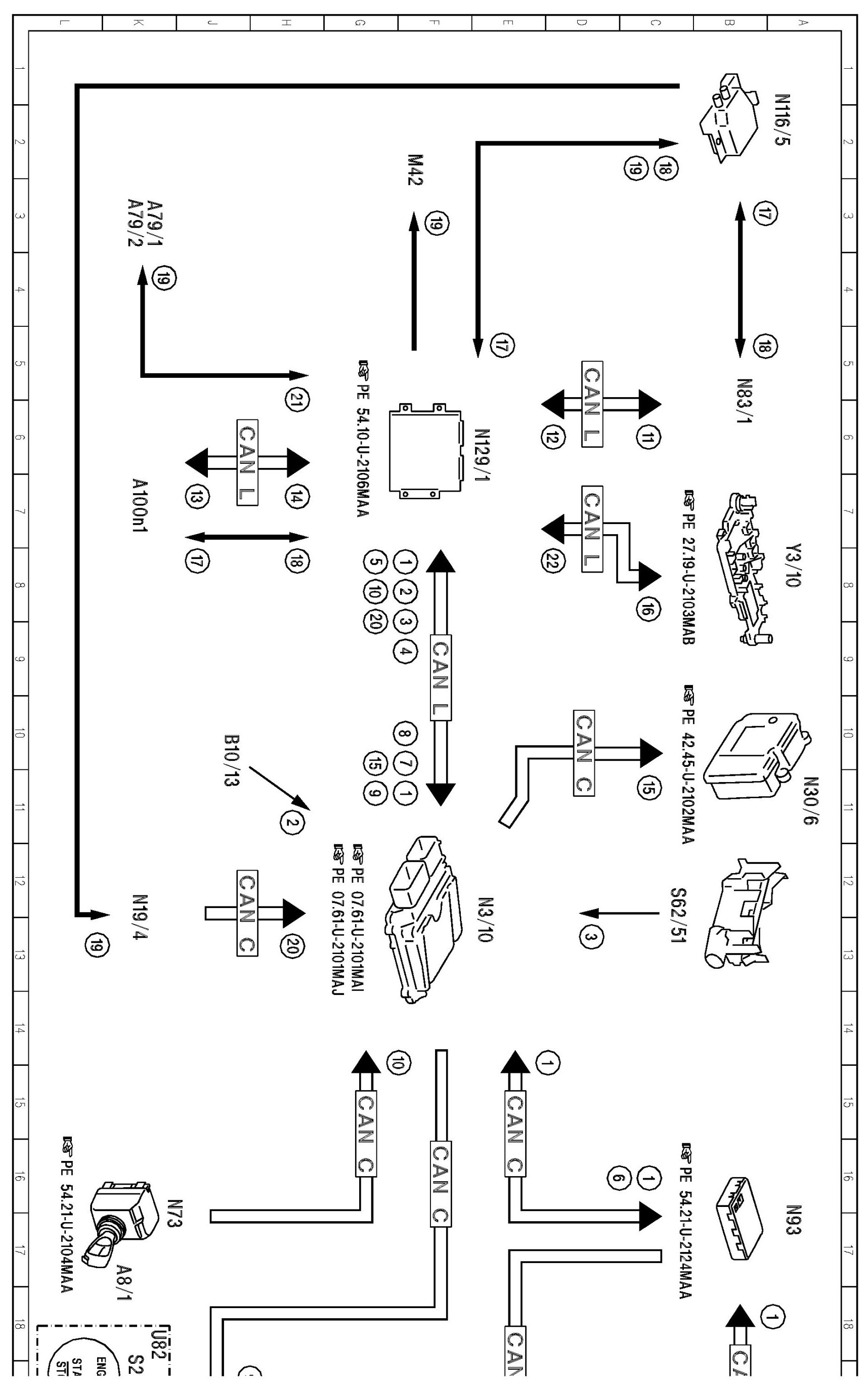

PE54.10-U-2062MAA Energy Management Electrical Function Schematic

PE54.10-U-2062MAA Energy Management Electrical Function Schematic
- Hybrid

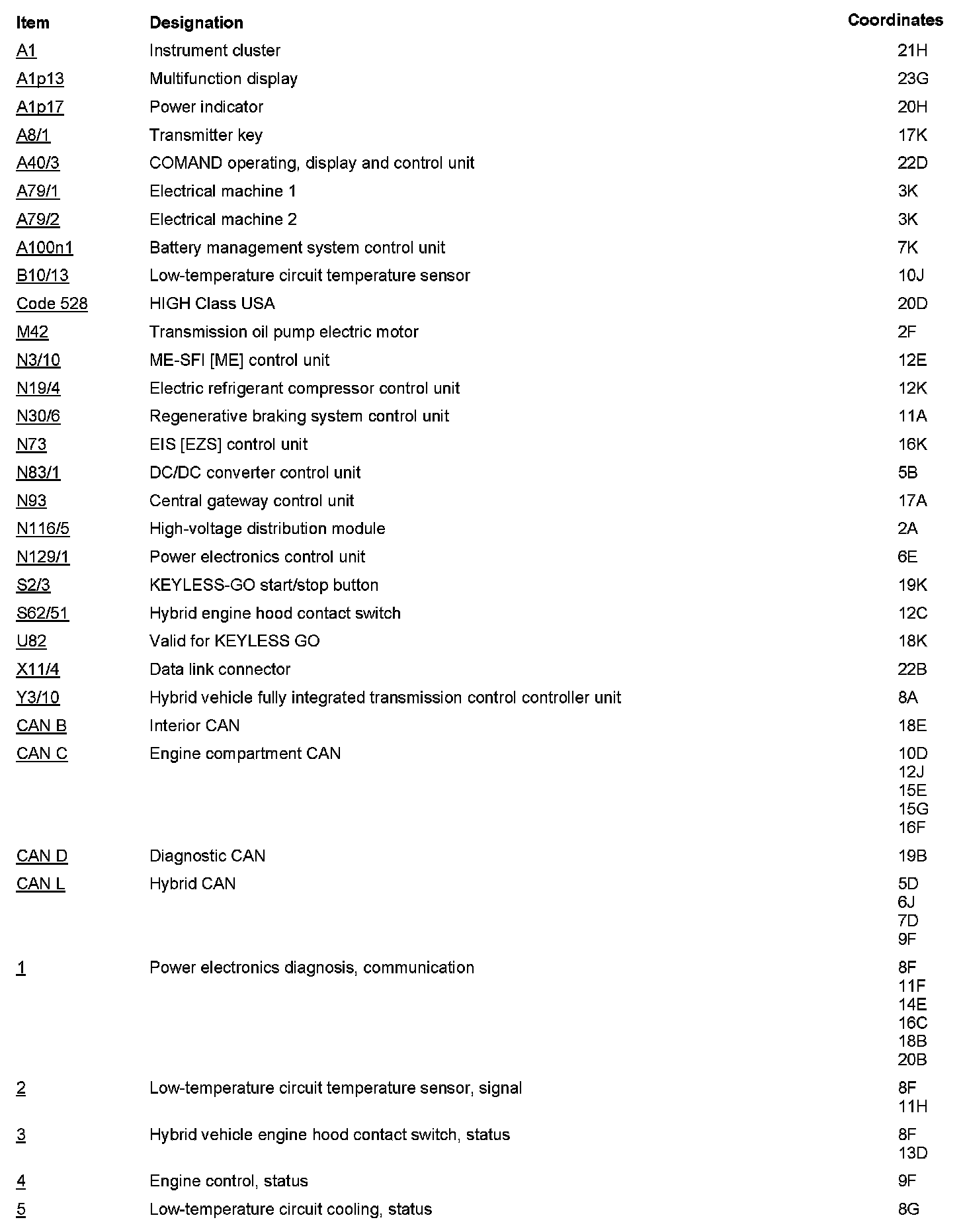

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
