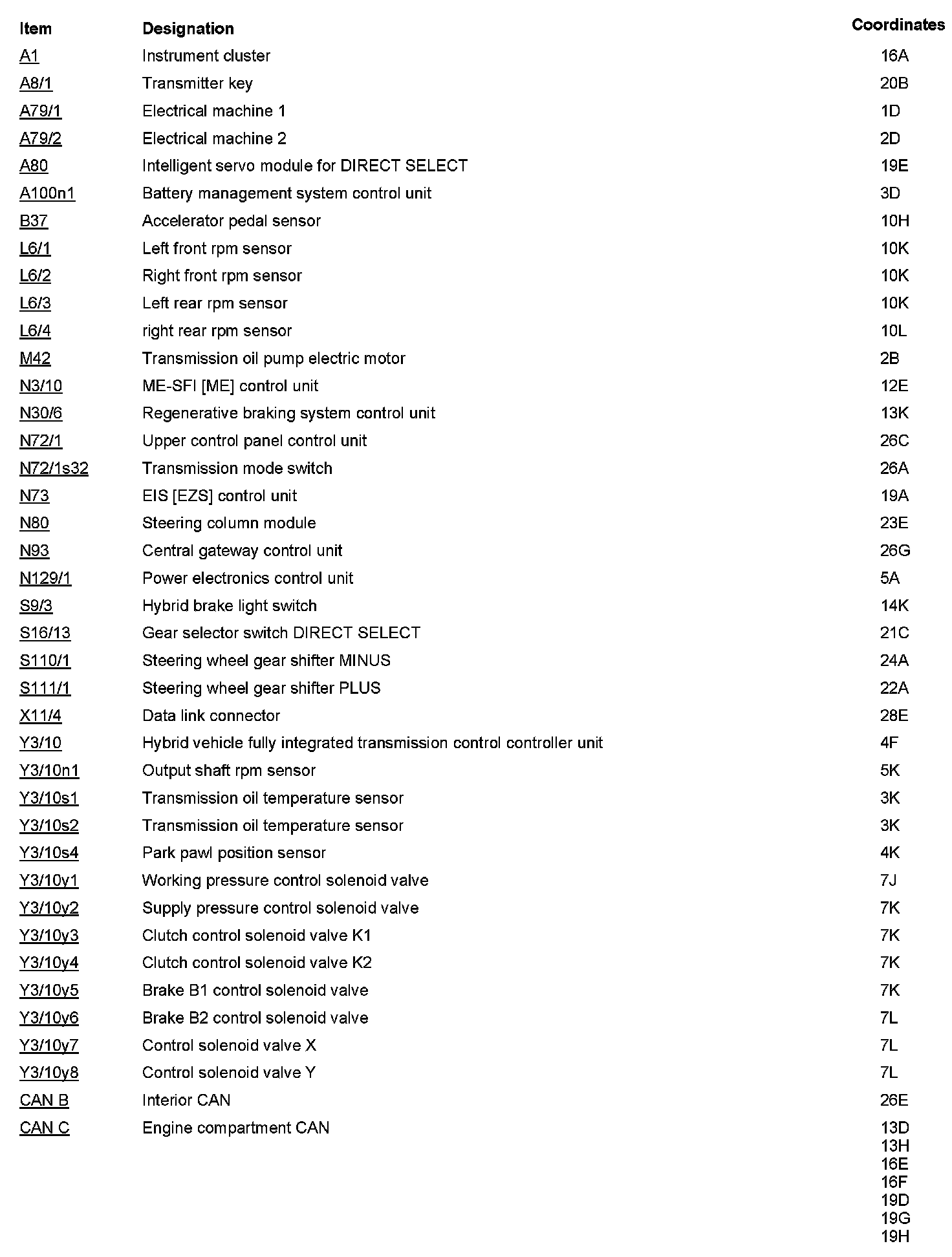

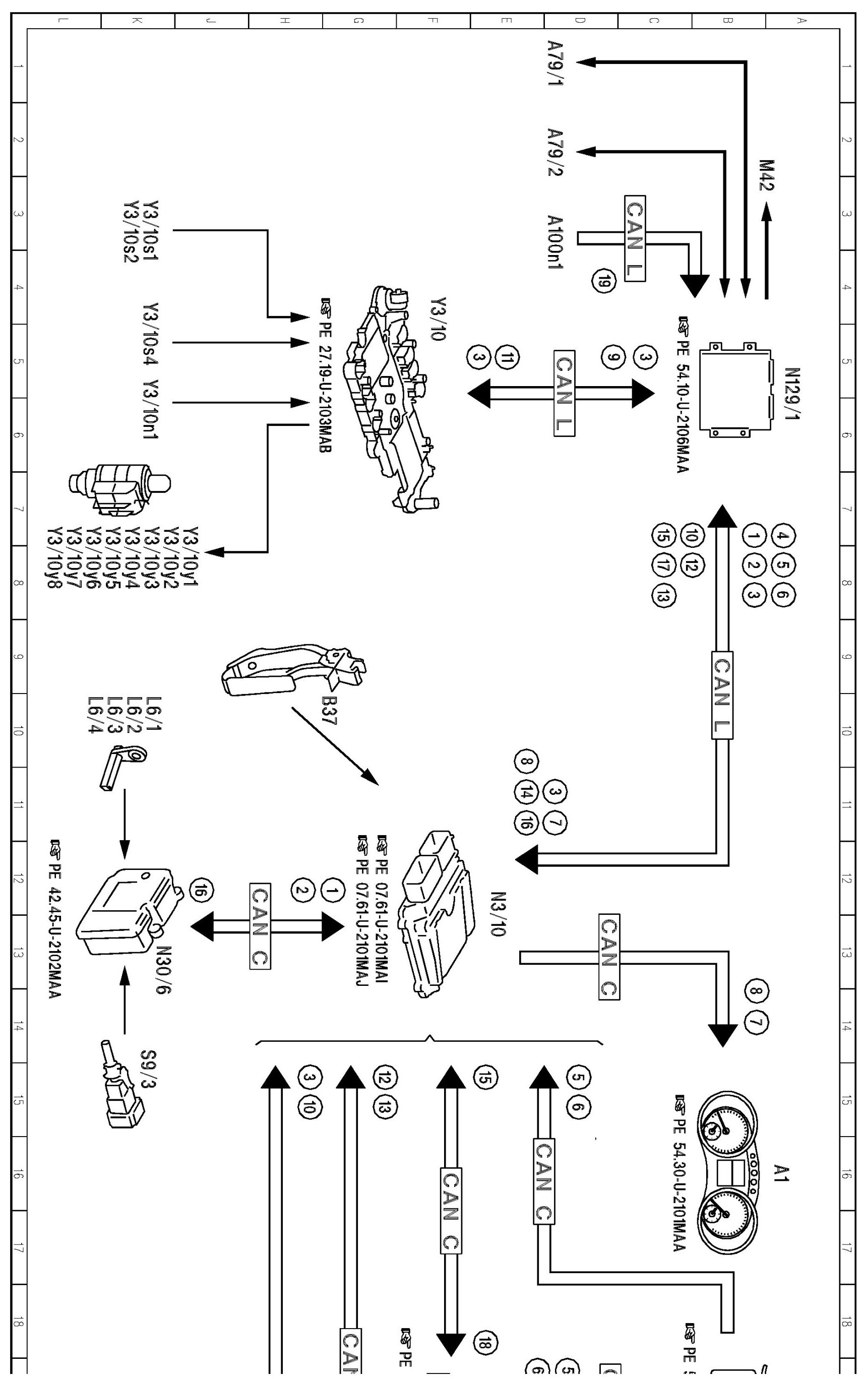

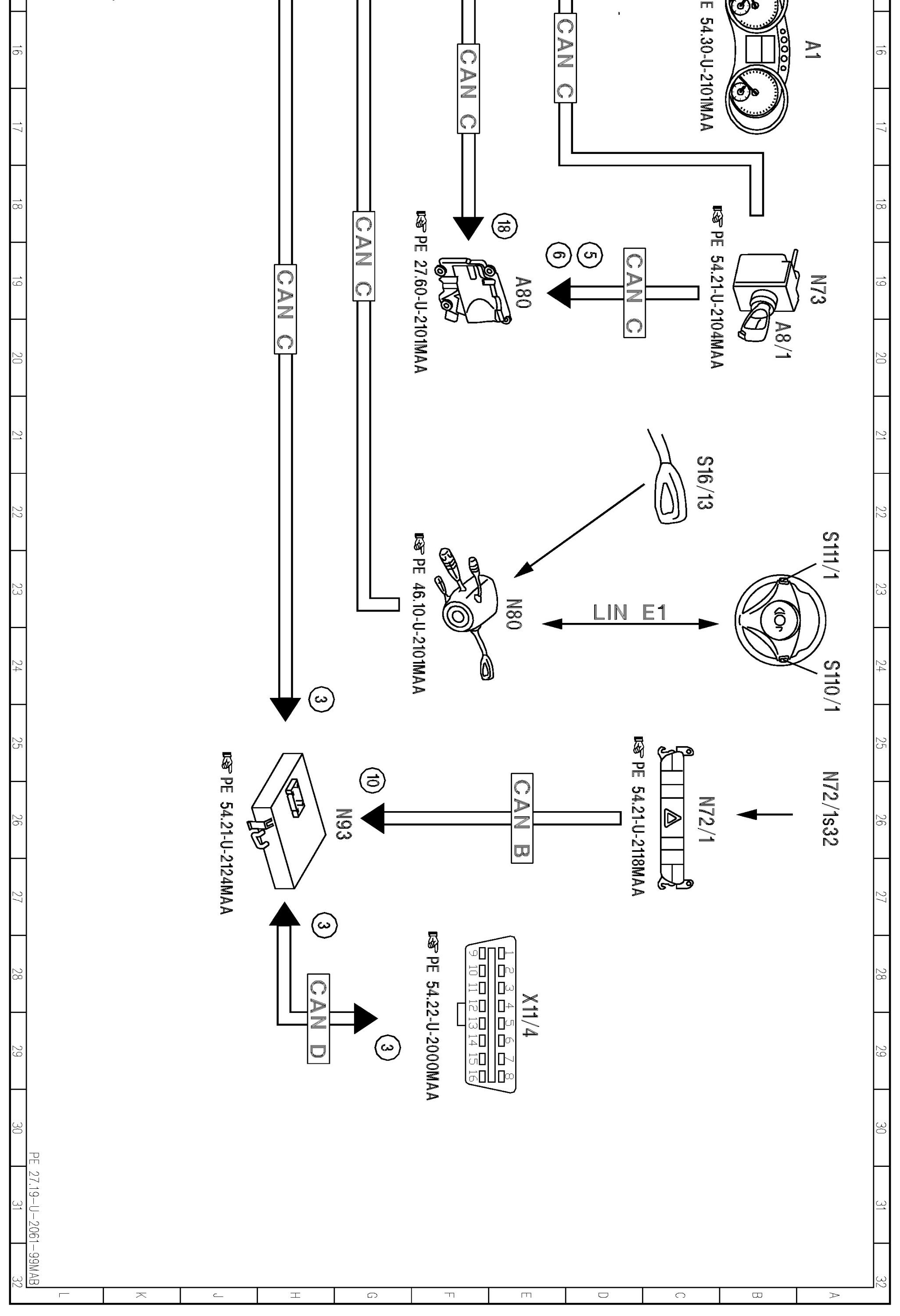

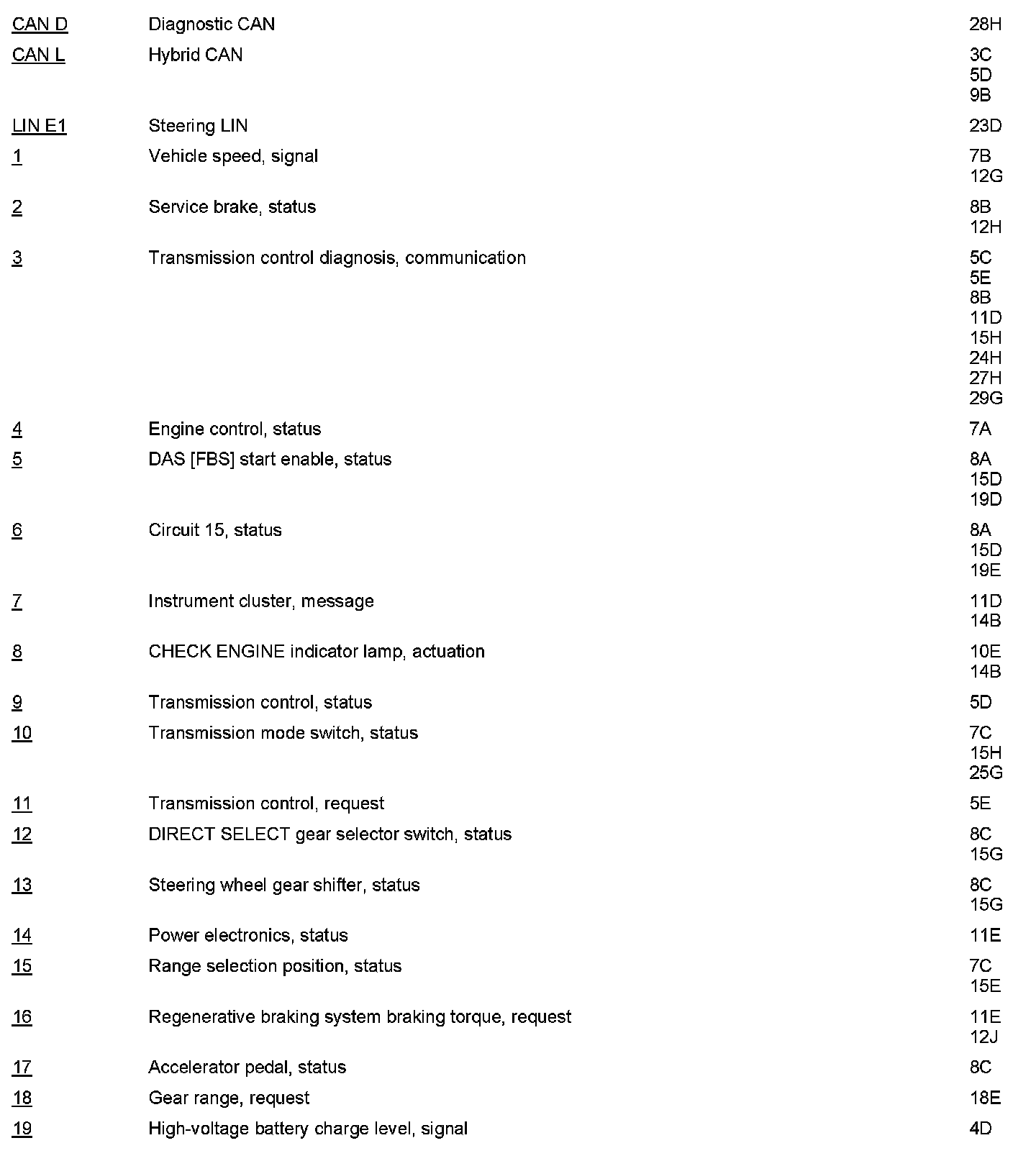

PE27.19-U-2061MAB Electrical Function Schematic, Fully Integrated Transmission Control

PE27.19-U-2061MAB Electrical Function Schematic, Fully Integrated Transmission Control
- TRANSMISSION 722.550


















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
