PE27.19-U-2057MAB Electrical Function Schematic For Shift Operation

PE27.19-U-2057MAB Electrical Function Schematic For Shift Operation
- TRANSMISSION 722.550

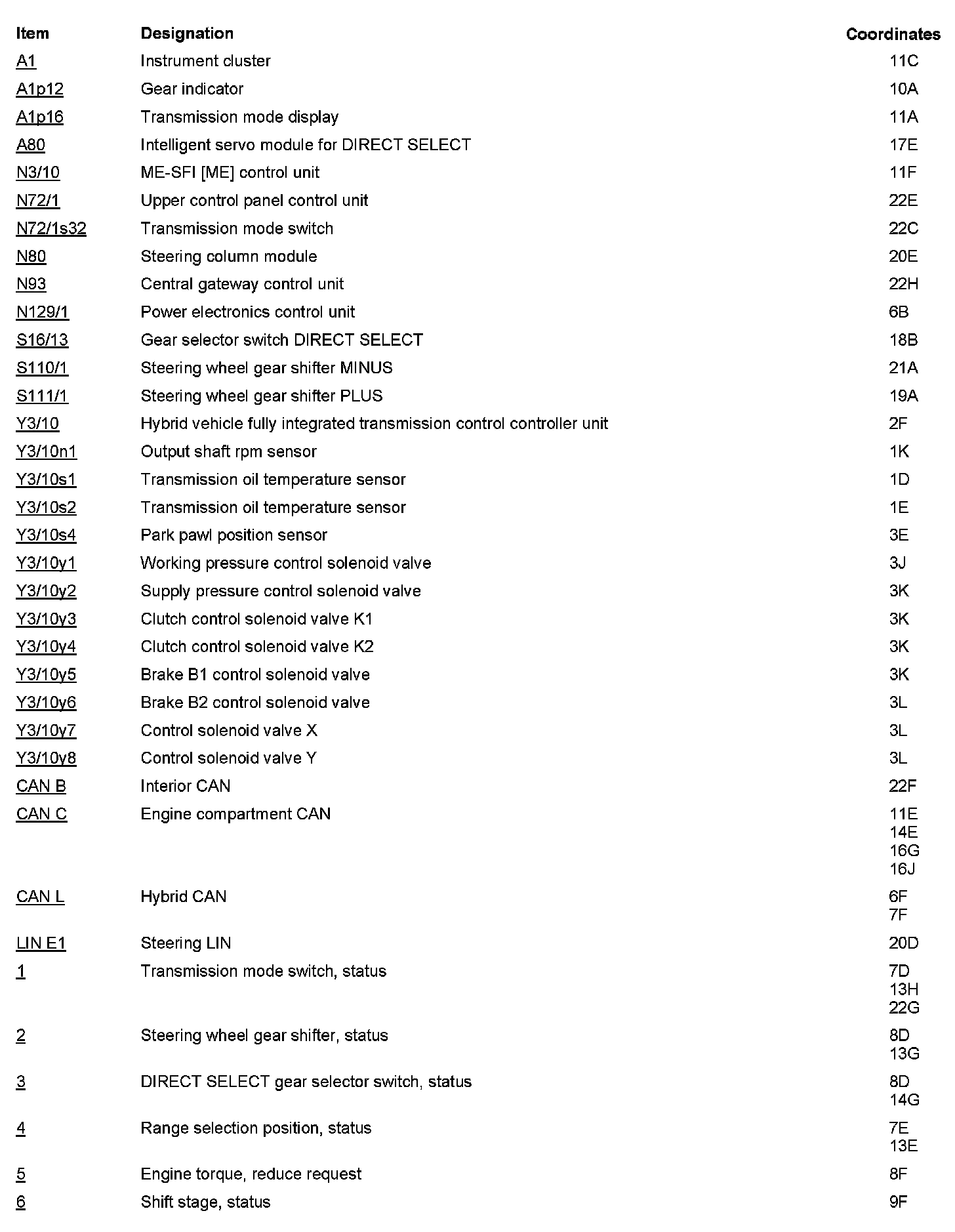

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
