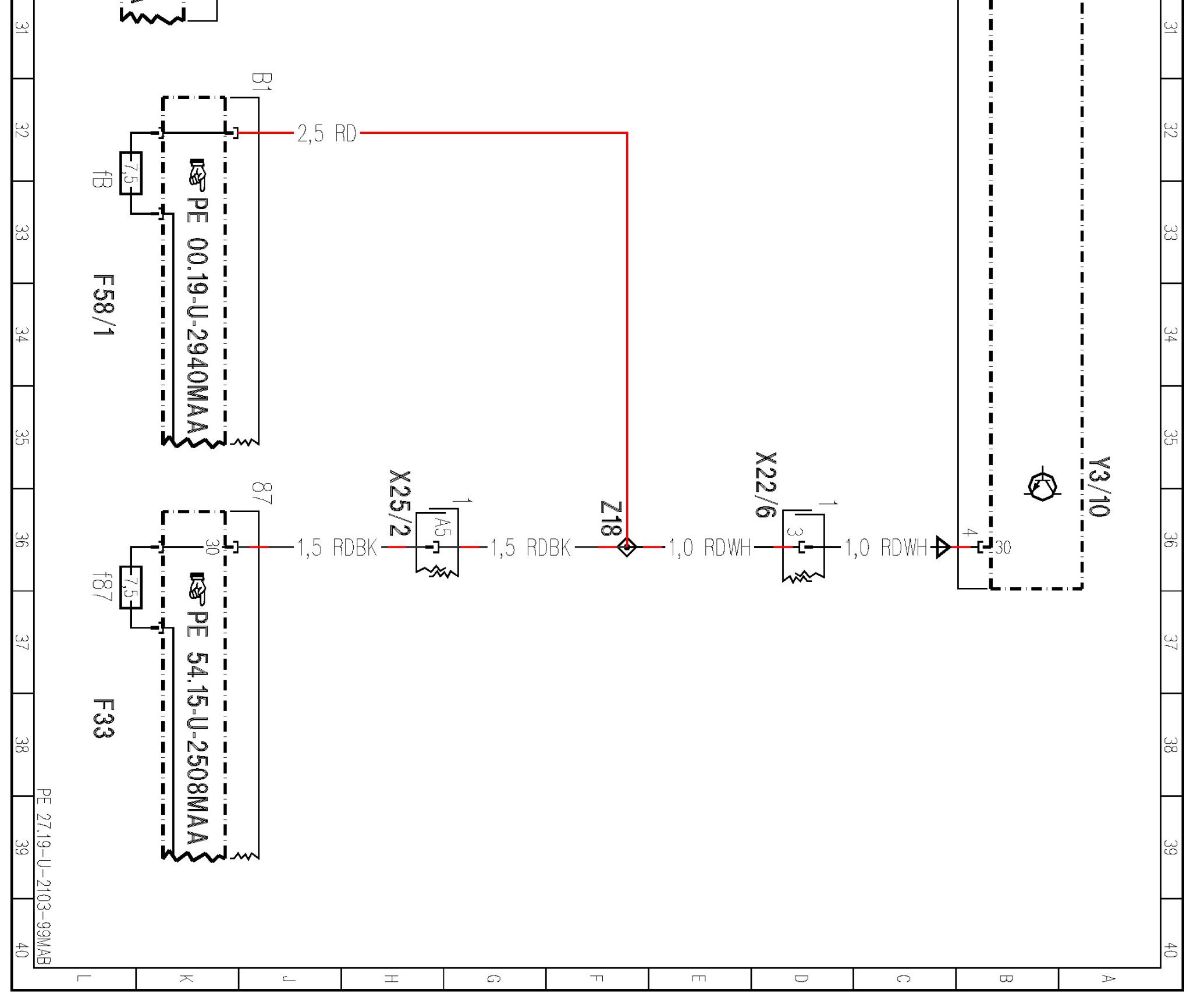

PE27.19-U-2103MAB Fully Integrated Transmission Control Control Unit



PE27.19-U-2103MAB Fully Integrated Transmission Control Control Unit
- TRANSMISSION 722.550
- Hybrid fully integrated transmission controller unit, Y3/10


















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
