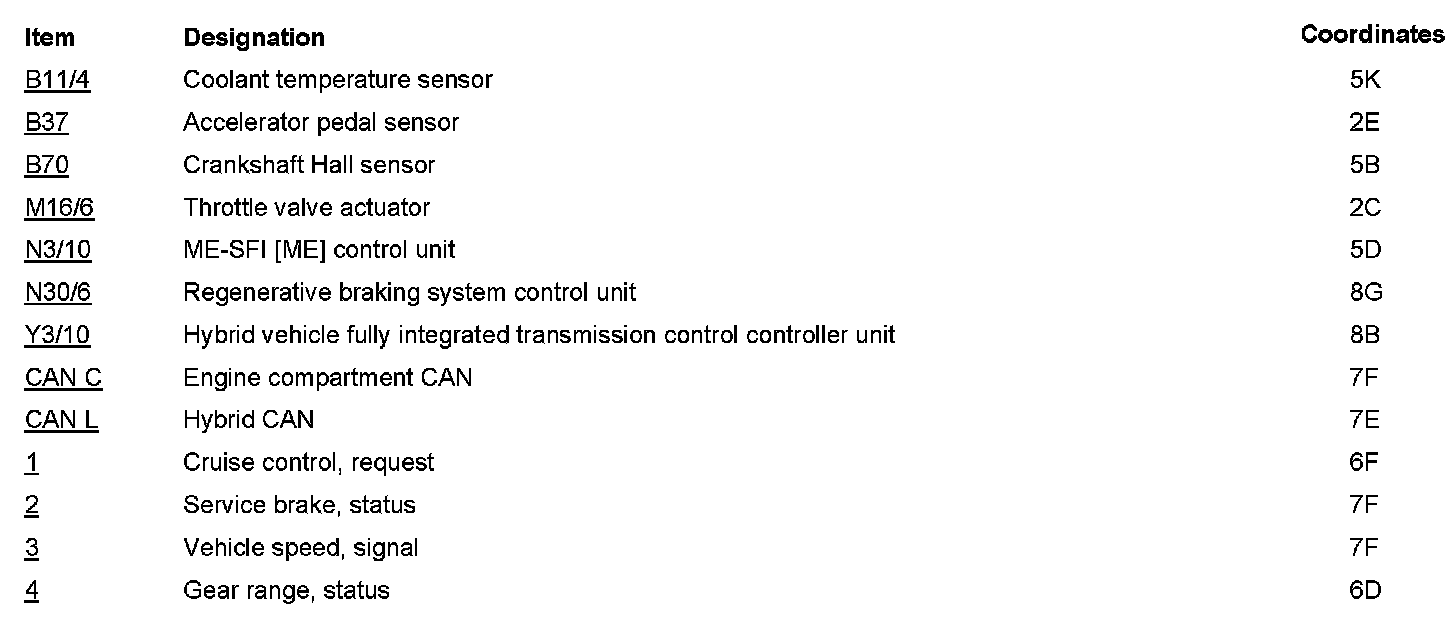

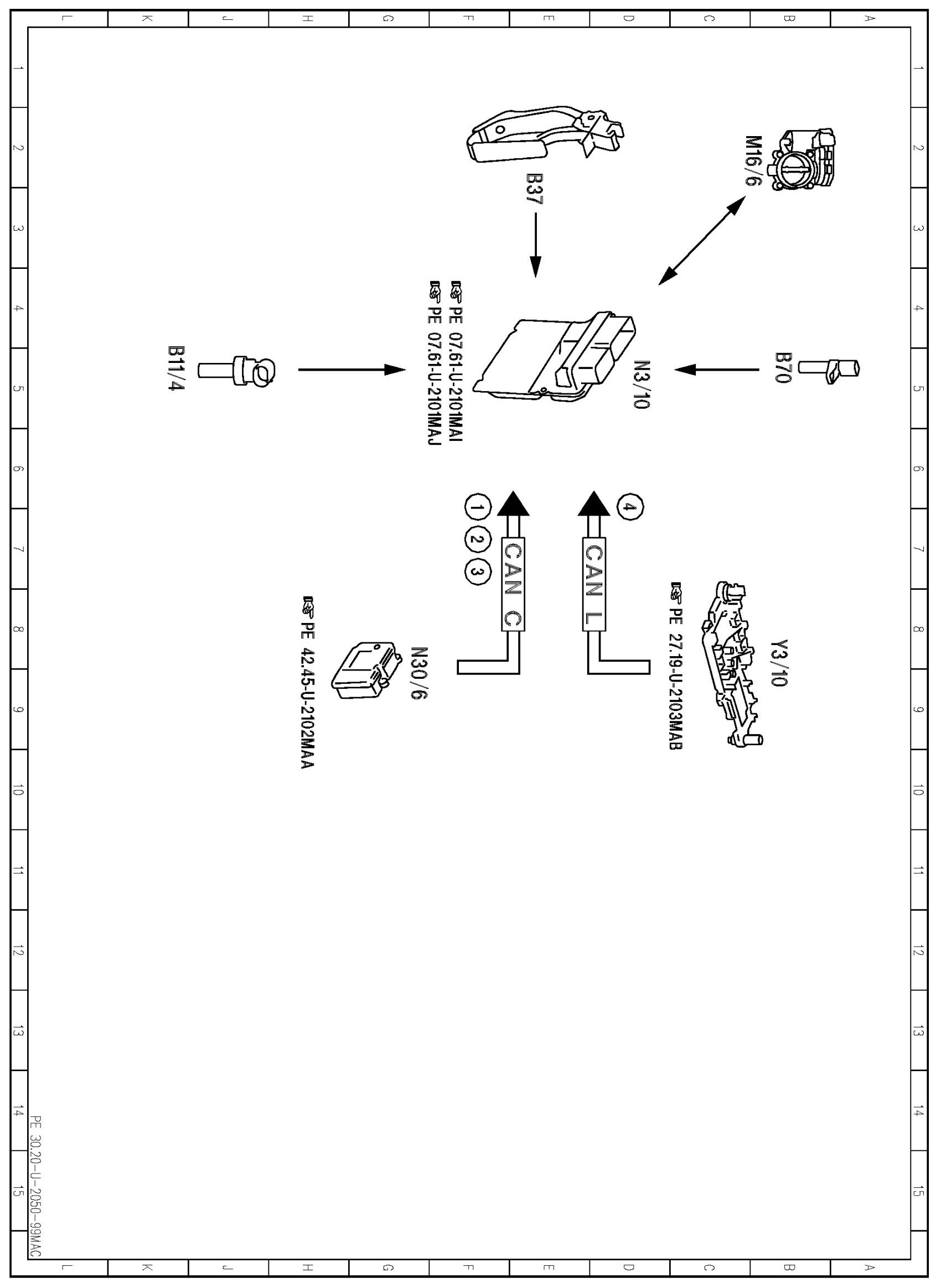

PE30.20-U-2050MAC Electrical Function Schematic For Electronic Accelerator

PE30.20-U-2050MAC Electrical Function Schematic For Electronic Accelerator











Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
