Hybrid Power Control Module: Service and Repair

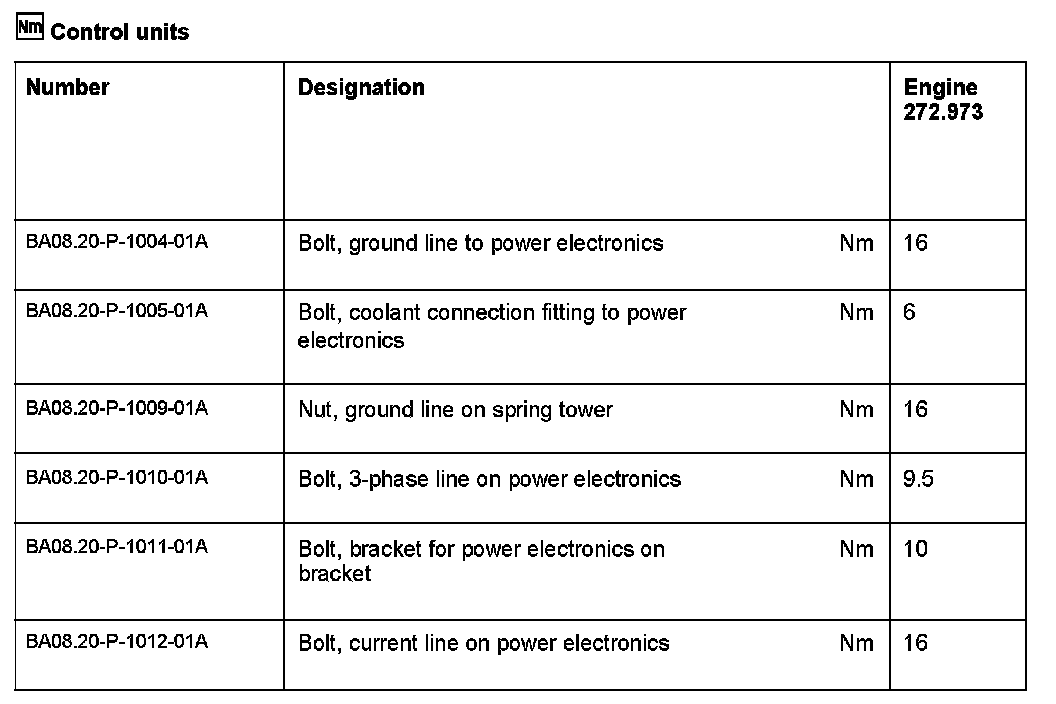

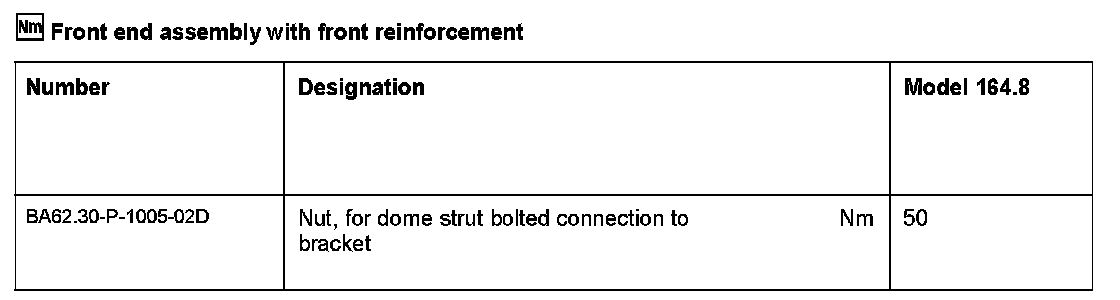

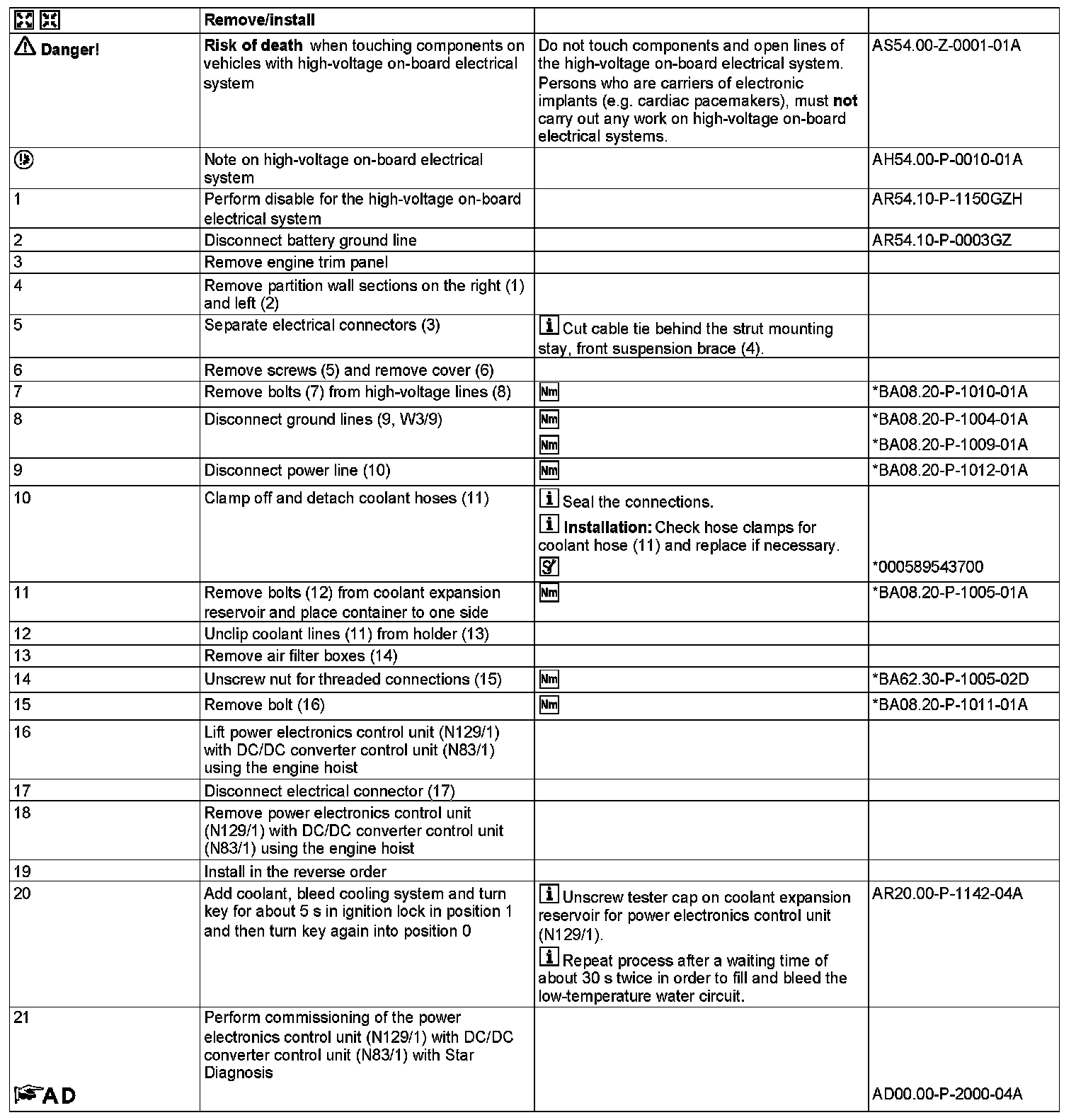

AR08.10-P-0011GZH Remove/install Power Electronics With Power Distributor
- ENGINE 272.973 in MODEL 164.195

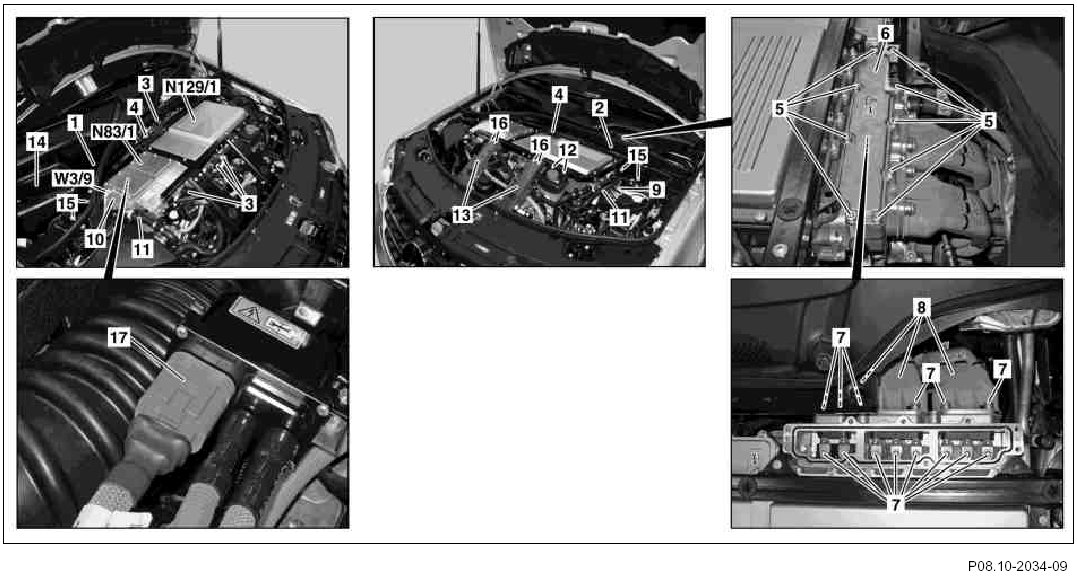

1 Partition wall section on the right
2 Partition wall section on the left
3 Electrical connectors
4 Strut tower brace
5 Bolts
6 Cover
7 Bolts
8 High-voltage lines
9 Ground cable
10 Power line
11 Coolant hoses
12 Bolts
13 Bracket
14 Air filter box
15 Nut for threaded connection
16 Bolts
17 Electrical connector
N83/1 DC/DC converter control unit
N129/1 Power electronics control unit
W3/9 Ground for DC/DC converter















000 589 54 37 00, Clamping device
