Mercedes Benz Truck
>>
2011
>>
ML 450 (164.195) V6-3.5L (272.973) Hybrid
>>
Repair and Diagnosis
>>
Hybrid Drive Systems
>>
Power Control System
>>
Voltage Converter
>>
Service and Repair
Voltage Converter: Service and Repair
AR54.10-P-1350GZH Remove/install DC/DC Converter

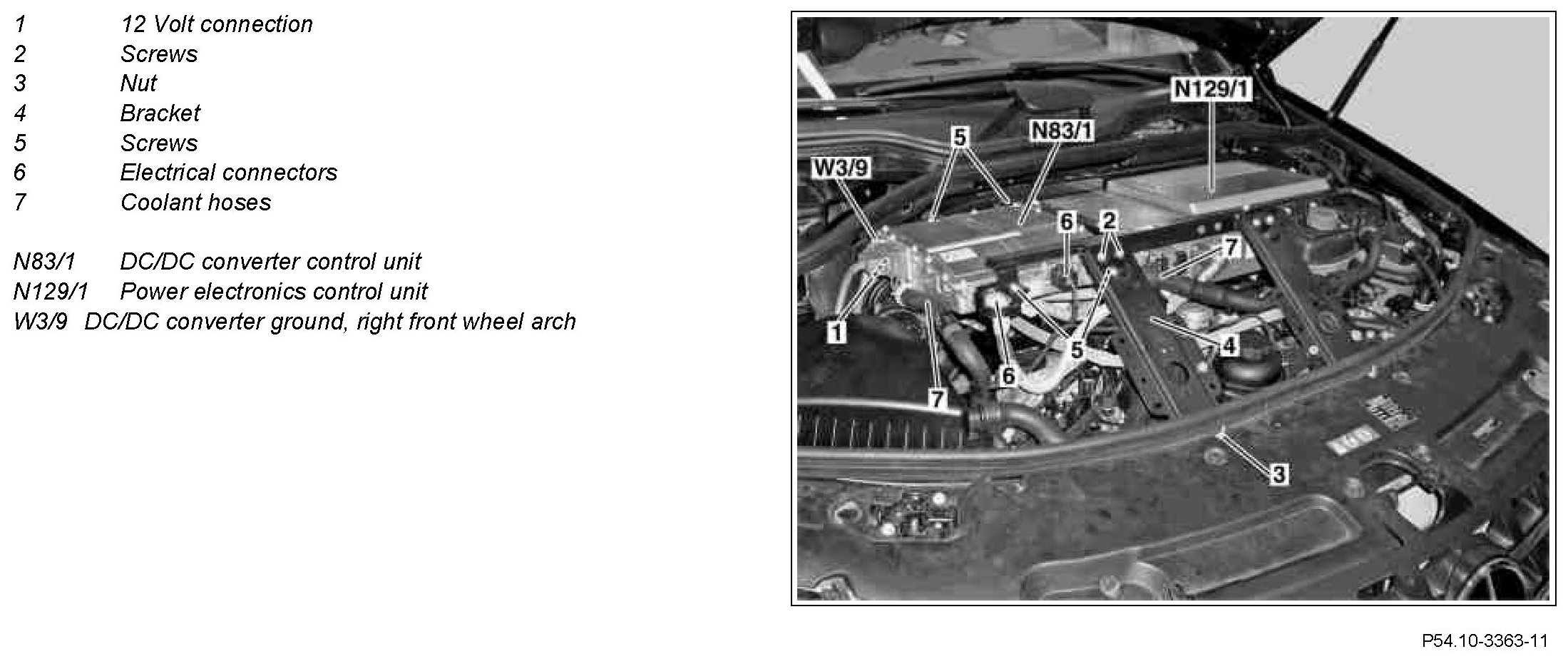

Component Identification:

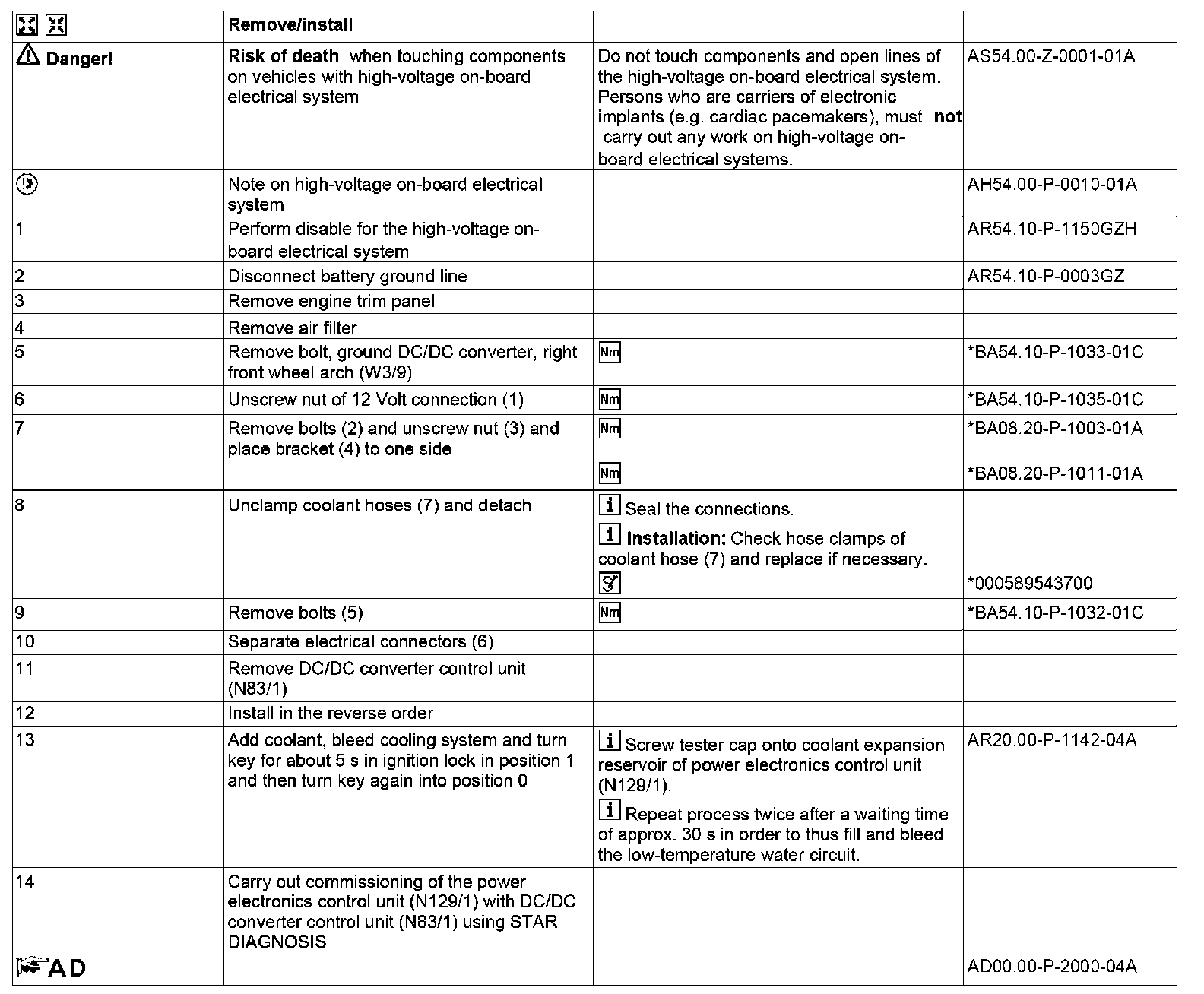

Steps 1-14:

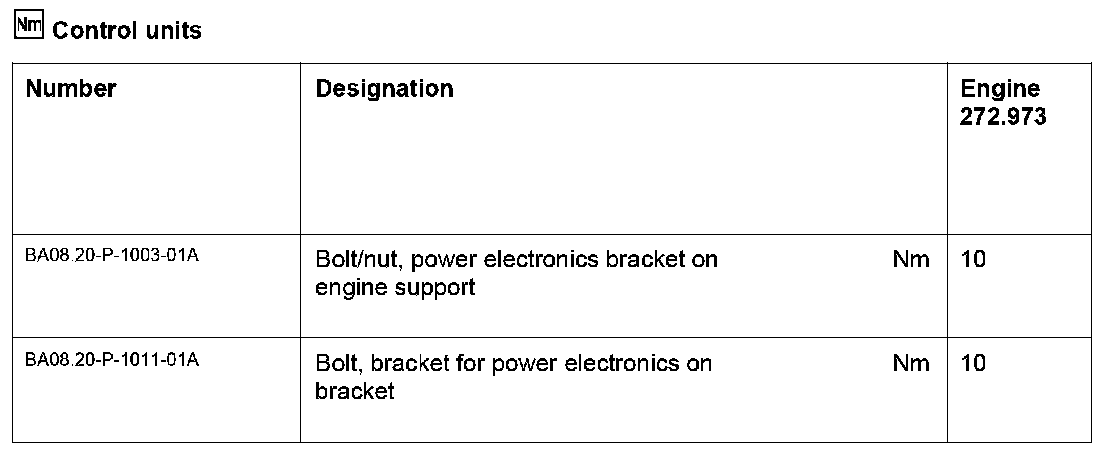

Control Units:

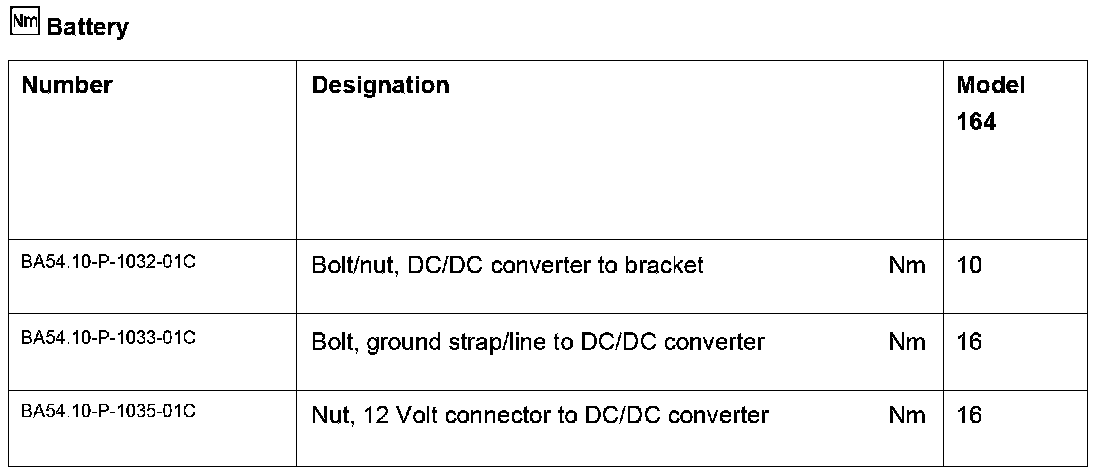

Battery:

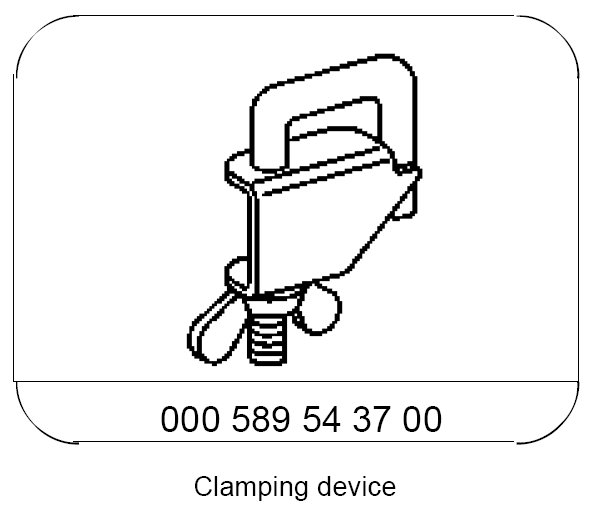

Special Tools:
