AR83.55-P-5300GZH Remove/Install Refrigerant Compressor



AR83.55-P-5300GZH Remove/install Refrigerant Compressor
- with CODE (580) Automatic air conditioning
- with CODE (581) Comfort automatic air conditioning

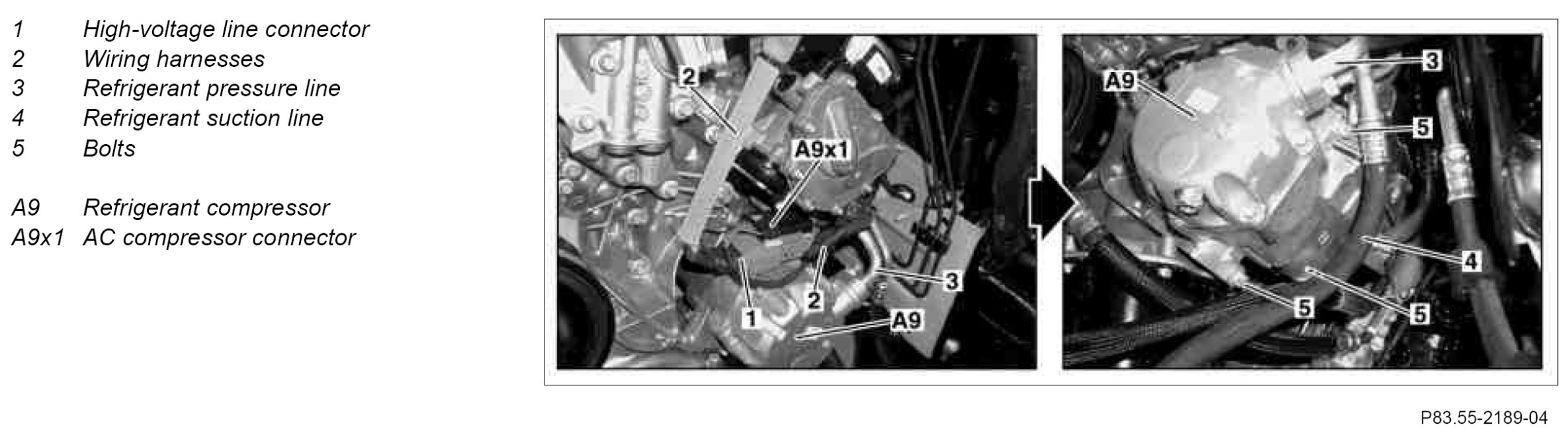

Component Identification:

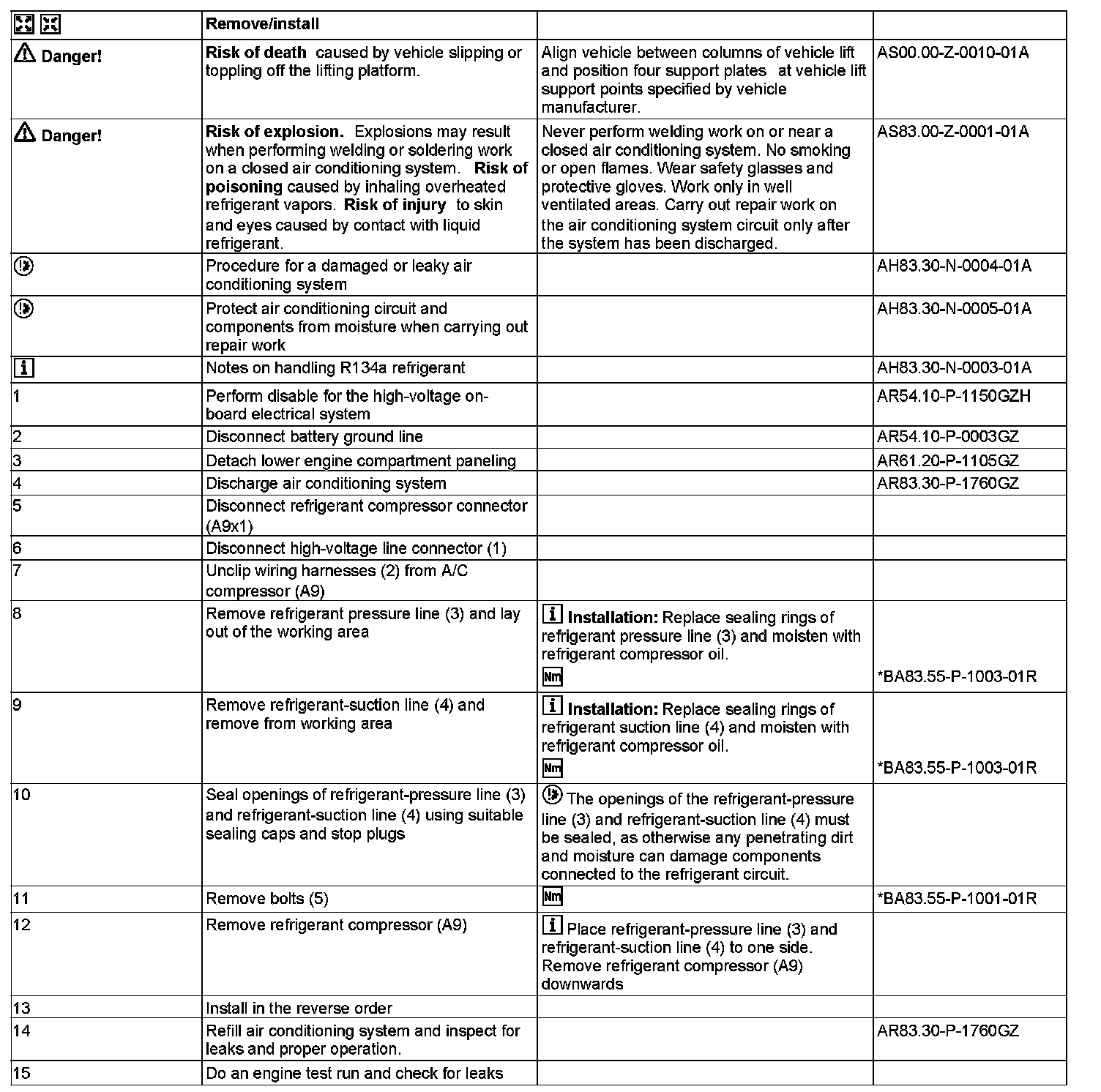

Steps 1-15:






Refrigerant compressor

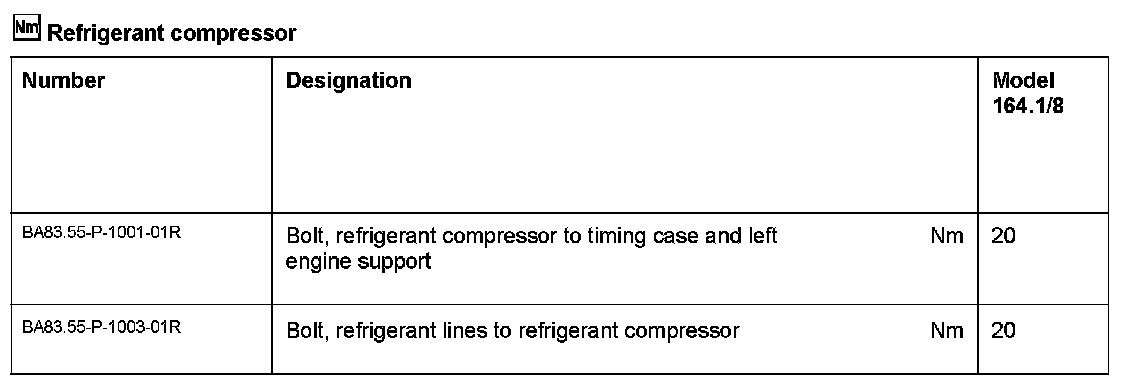

Refrigerant Compressor:

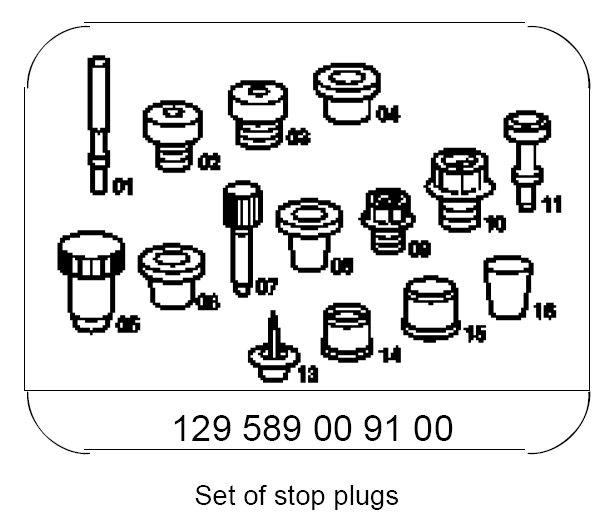

Special Tools:
