AR54.21-P-1263GZ Remove/Install Lower Control Panel Control Unit



AR54.21-P-1263GZ Removing And Installing Lower Control Panel Control Unit

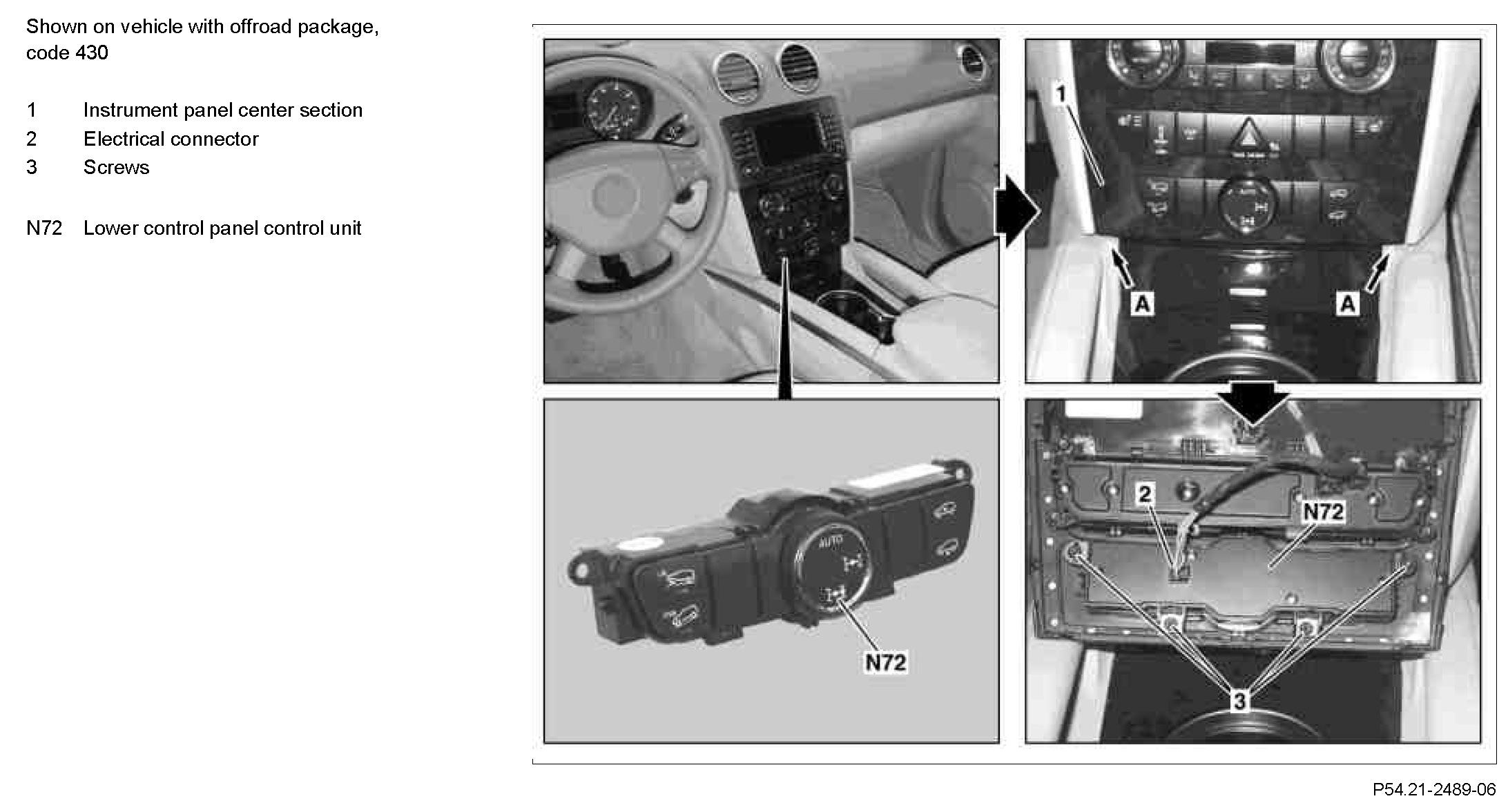

Component Identification:

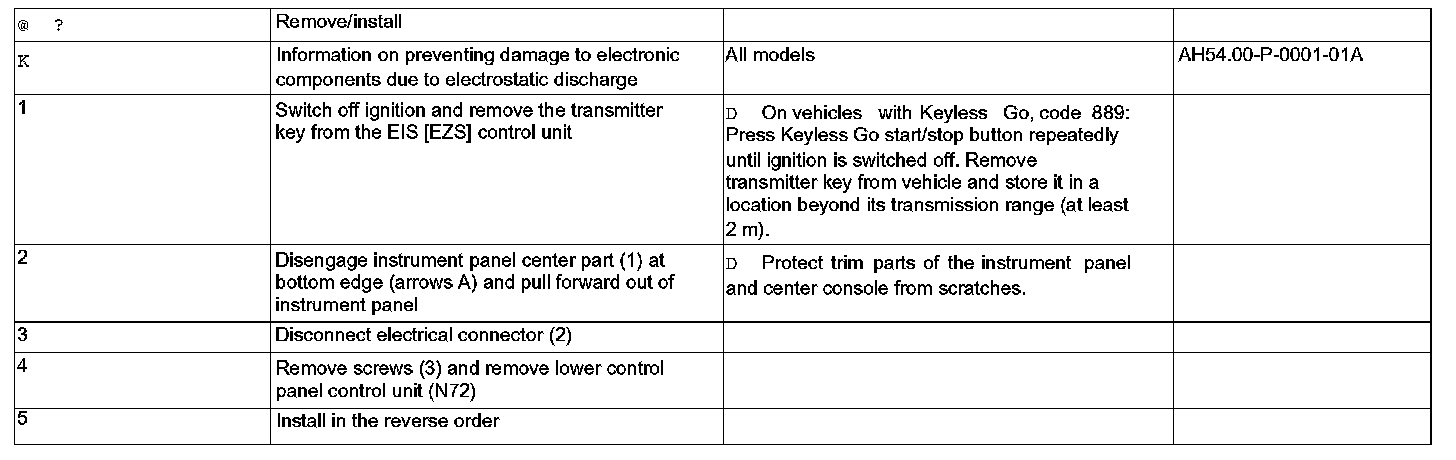

Steps 1 - 5:
