Removal and Replacement

AR27.10-P-0501-03RT Disconnect/Connect Transmission Oil Line





129 589 00 91 00
Set of stop plugs





Remove retaining clamp on connector
The area surrounding the separation point should be cleaned thoroughly before opening the hydraulic system. Even minute particles of dirt in the hydraulic components can result in malfunctions and total failure of the hydraulic system.

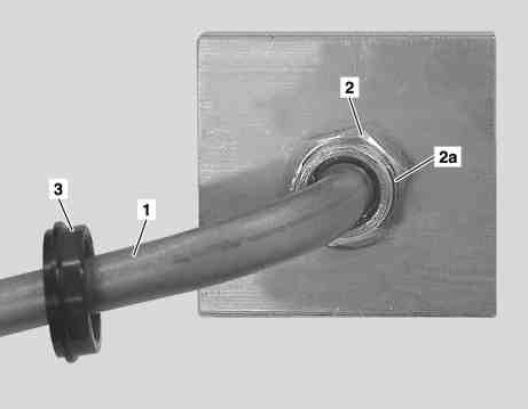

1 Detach dust cap (3) and push back along the transmission oil line (1) until the connector (2) is accessible.

2 Position a suitable tool at one end of securing clamp (2a), pull securing clamp (2a) off connector (2) and pull transmission oil line (1) out of connector (2).

Seal off line connections using plugs.

3 Pull dust cap (3) off transmission oil line (1).








Attach retaining clamp to connector
The safety clamp (2a) must be replaced after every disconnection of a transmission oil line (1).

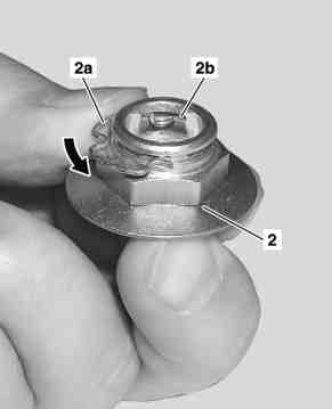

4 Insert securing clamp (2a) into in a cutout (2b) of connector (2) and then push in direction of arrow until securing clamp (2a) fully engages in connector (2).

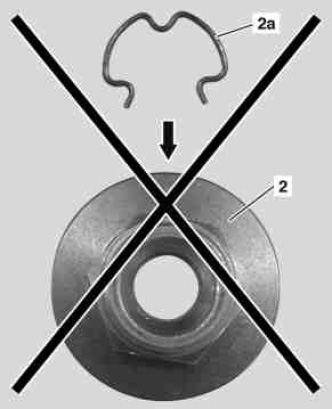

The securing clamp (2a) must not be pushed straight over the connector (2), otherwise the securing clamp (2a) will be overstretched and correct sealing of the line connection will no longer be guaranteed.

Attach transmission oil line to connector
5 Push dust cap (3) onto the transmission oil line (1).

6 Introduce transmission oil line (1) straight into the connector (2) until it audibly and noticeable latches.

7 Push dust cap (3) onto connector (2).

If the dust cap (3) cannot be pushed over the connecting point then the transmission oil line (1) is not fully latched in the connector (2) or the safety clamp (2a) is overstretched.
