AR54.65-P-0006GZ Remove/Install Parktronic System (PTS) Control Unit



AR54.65-P-0006GZ Remove/Install Parktronic System (PTS) Control Unit
- with CODE (220) Parktronic system (PTS)

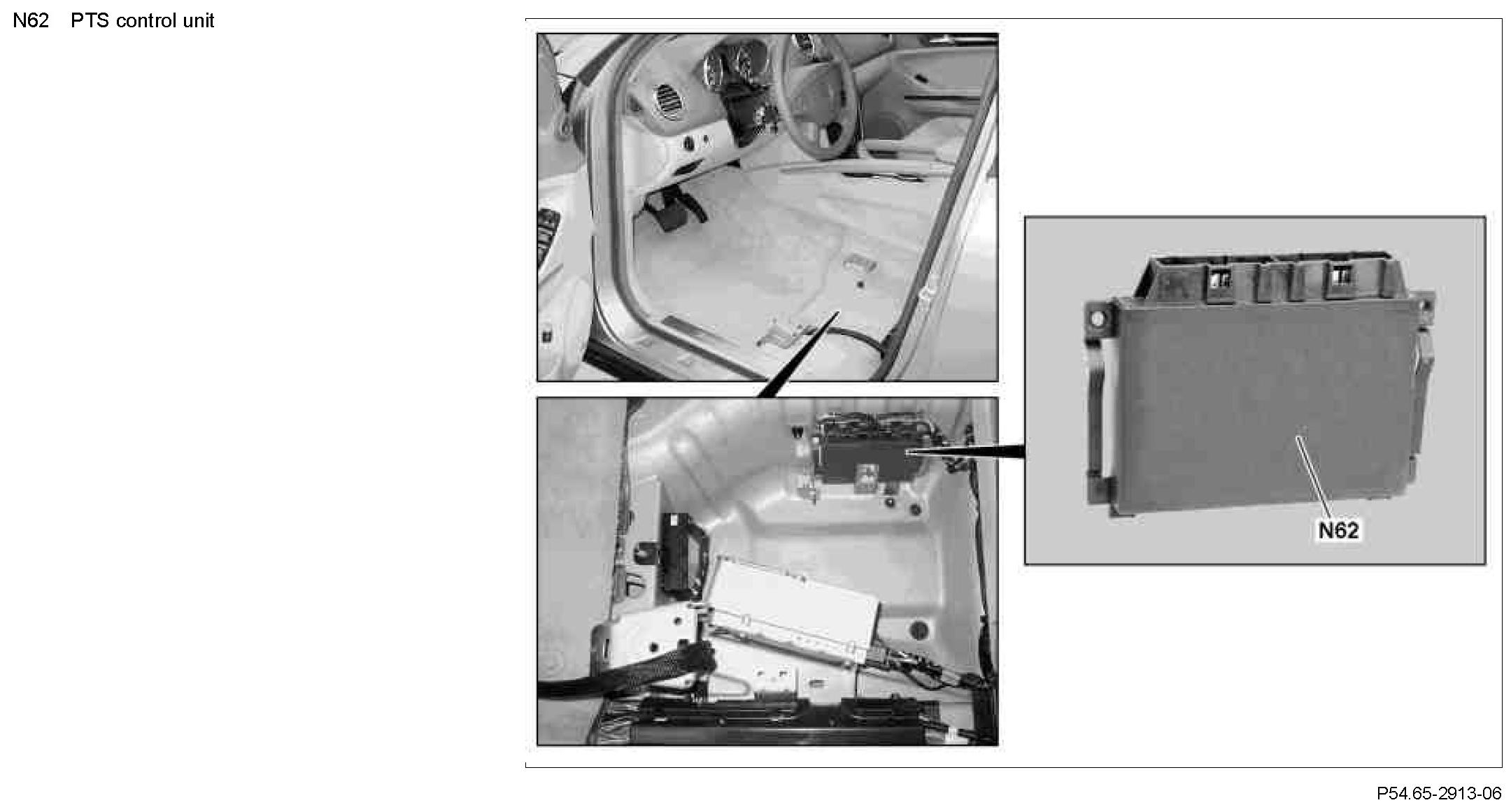

Component Identification:

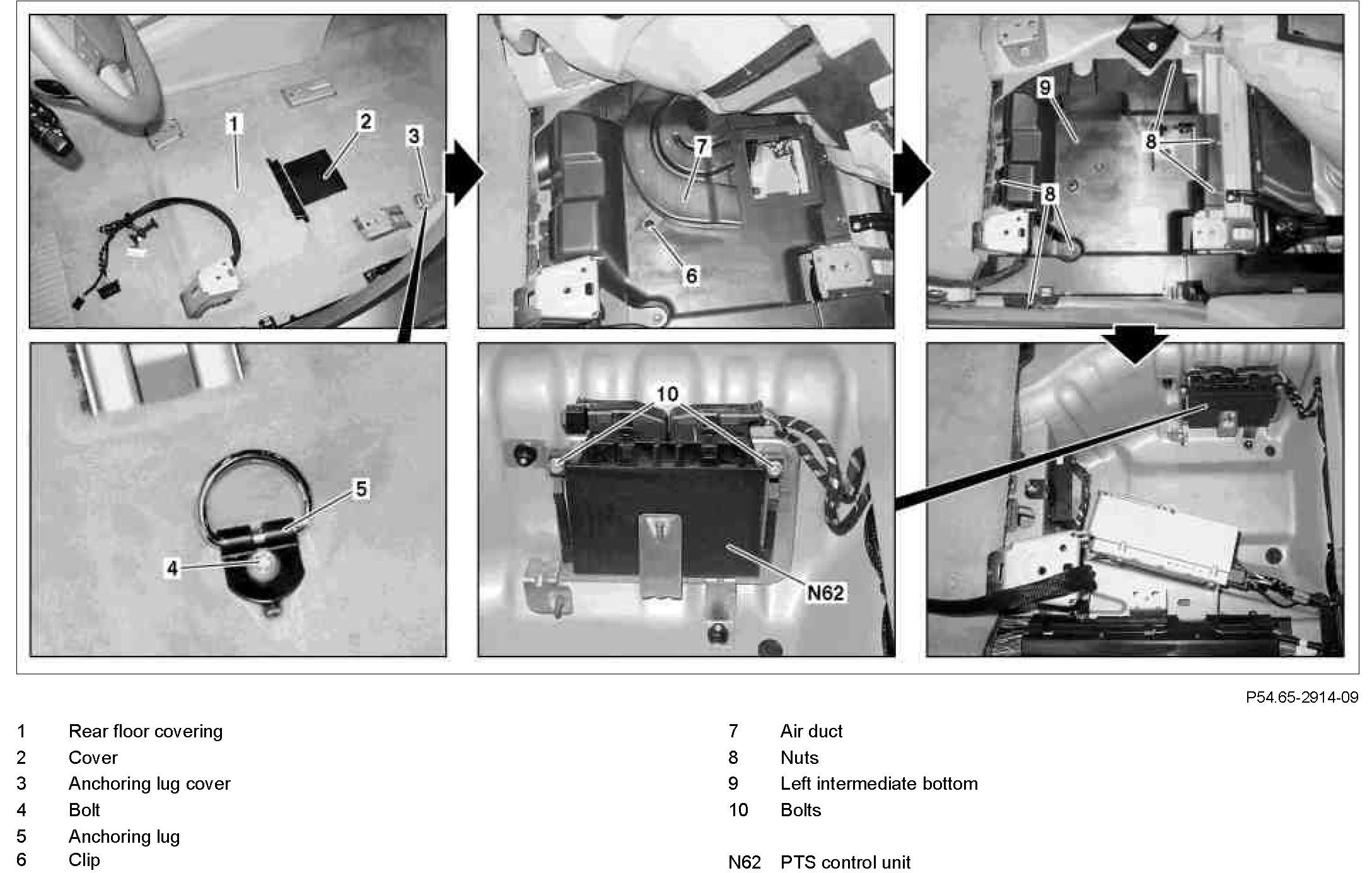

Component Identification:




Modification Notes:

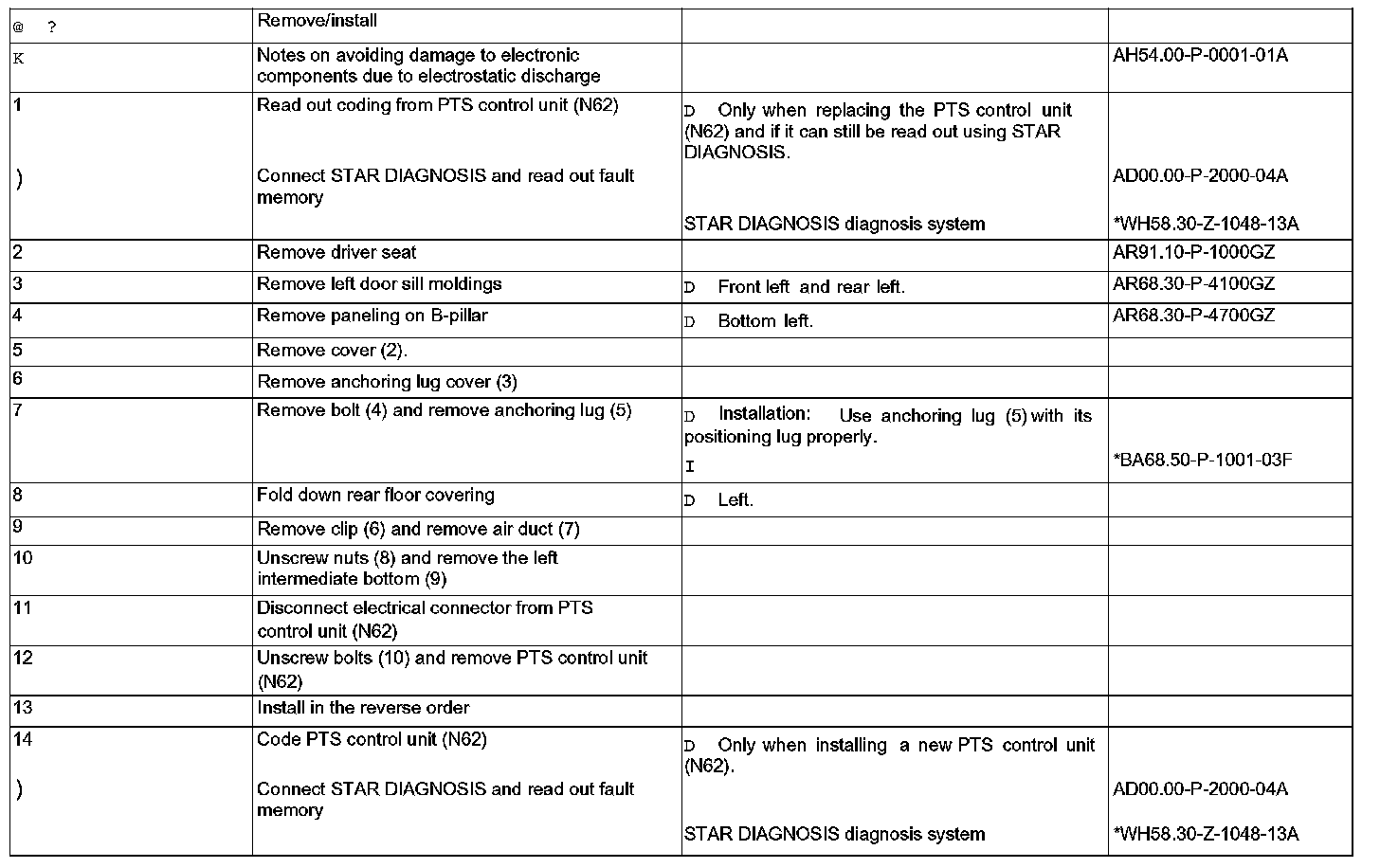

Steps 1 - 14:

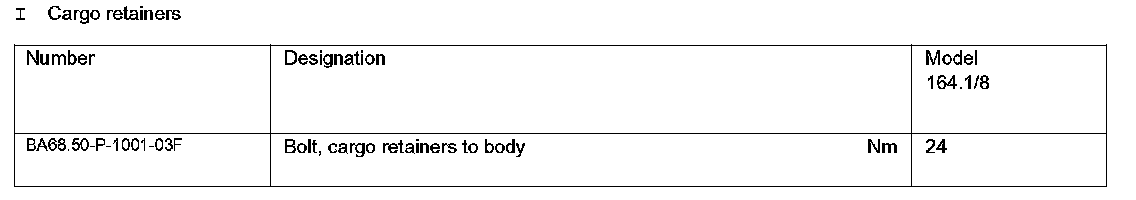

Cargo Retainers:

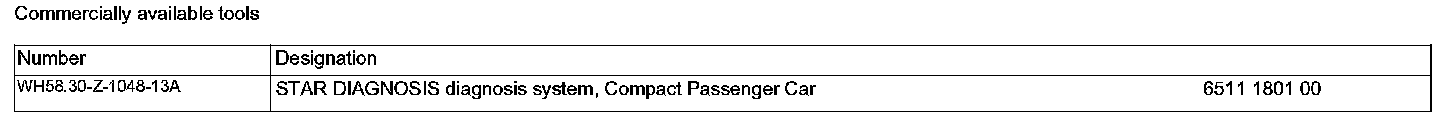

Commercially Available Tools:
