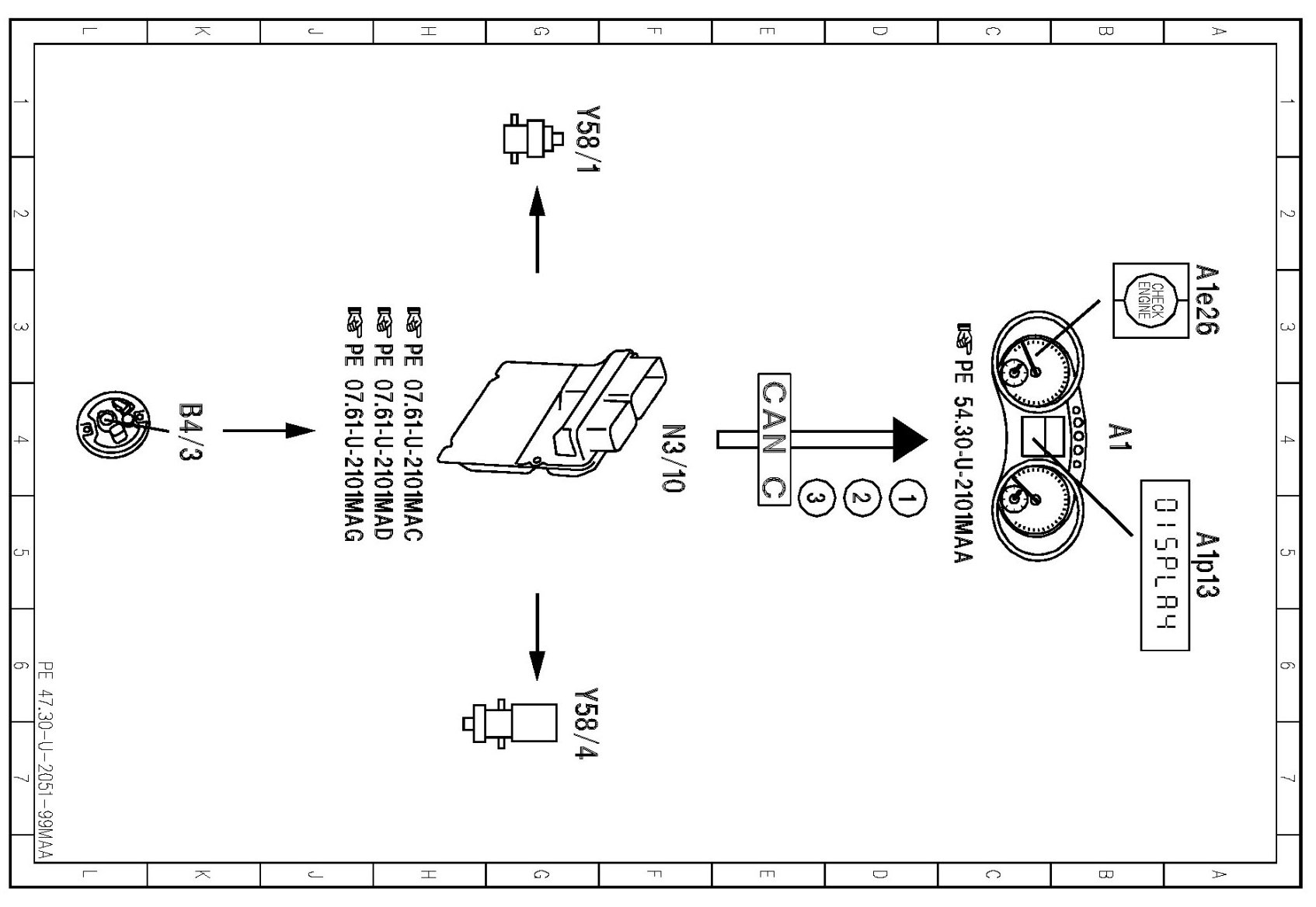

PE47.30-U-2051MAA Electrical Function Diagram For System Purging With Leak Test

PE47.30-U-2051MAA Electrical Function Diagram For System Purging With Leak Test

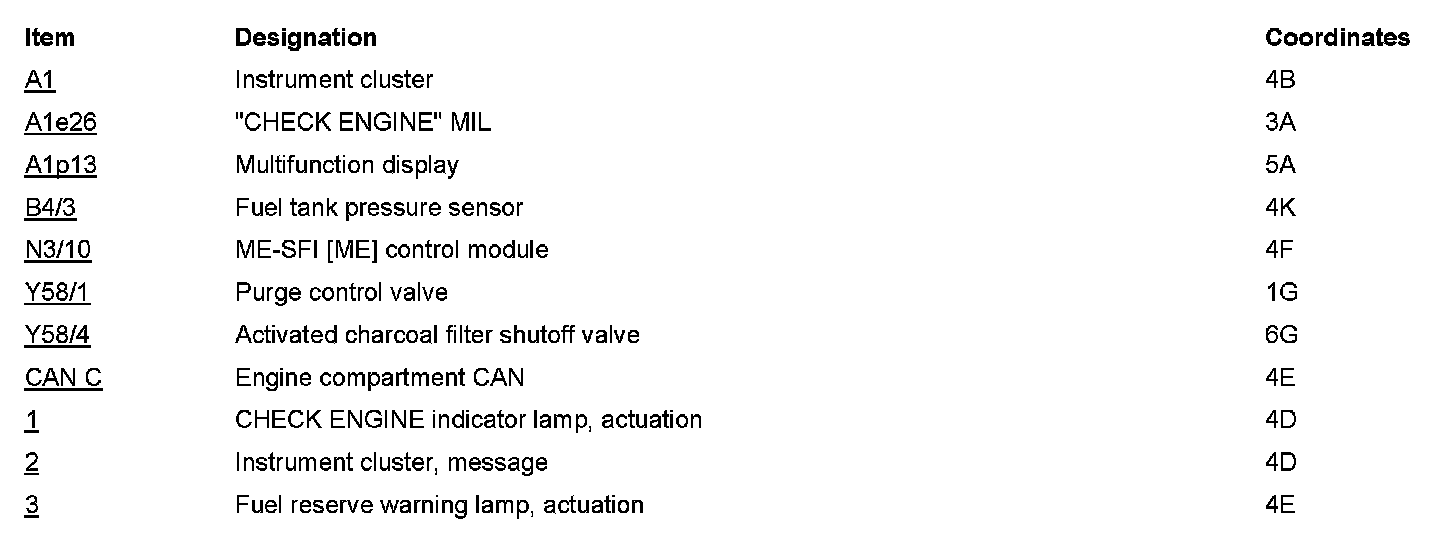

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
