Home
>>
Mercedes Benz Truck
>>
2011
>>
ML 350 4MATIC (164.186) V6-3.5L (272.967)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
>>
GF54.15-P-1256-15GM Fuse Assignment of Battery Compartment Prefuse Box
GF54.15-P-1256-15GM Fuse Assignment of Battery Compartment Prefuse Box
GF54.15-P-1256-15GM Fuse Assignment of Battery Compartment Prefuse Box

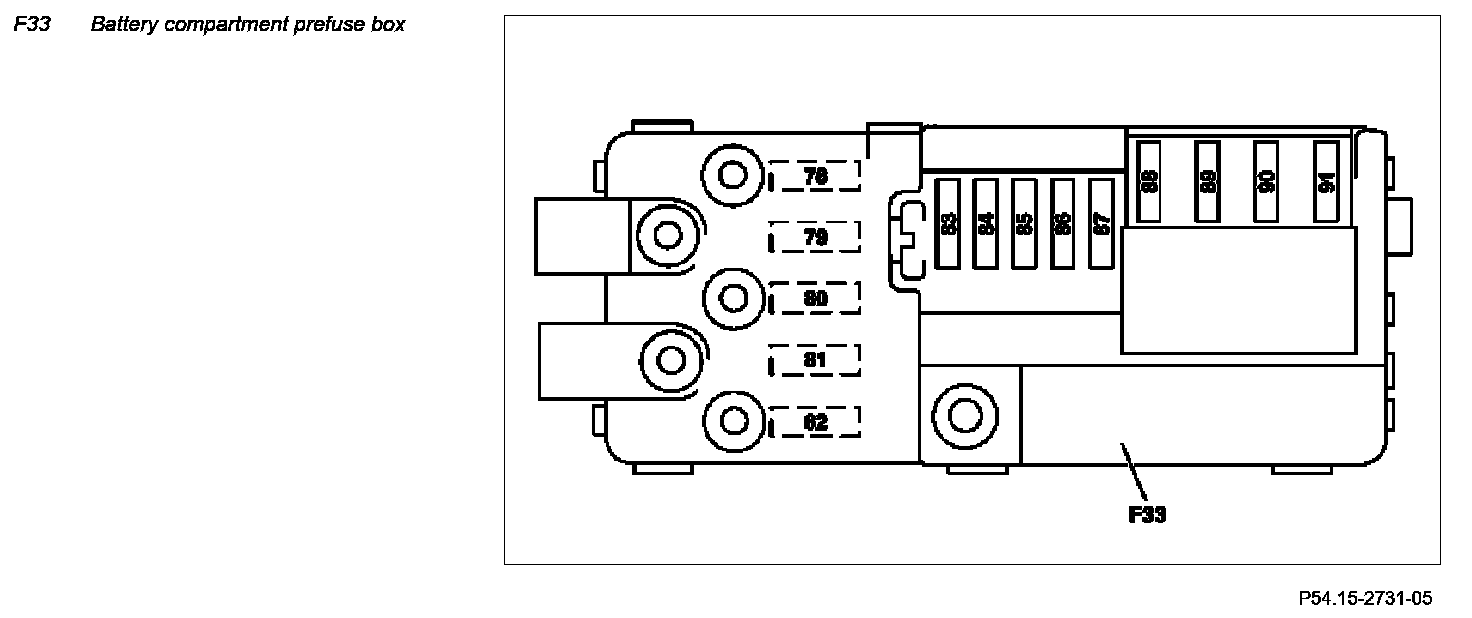

Component Location:

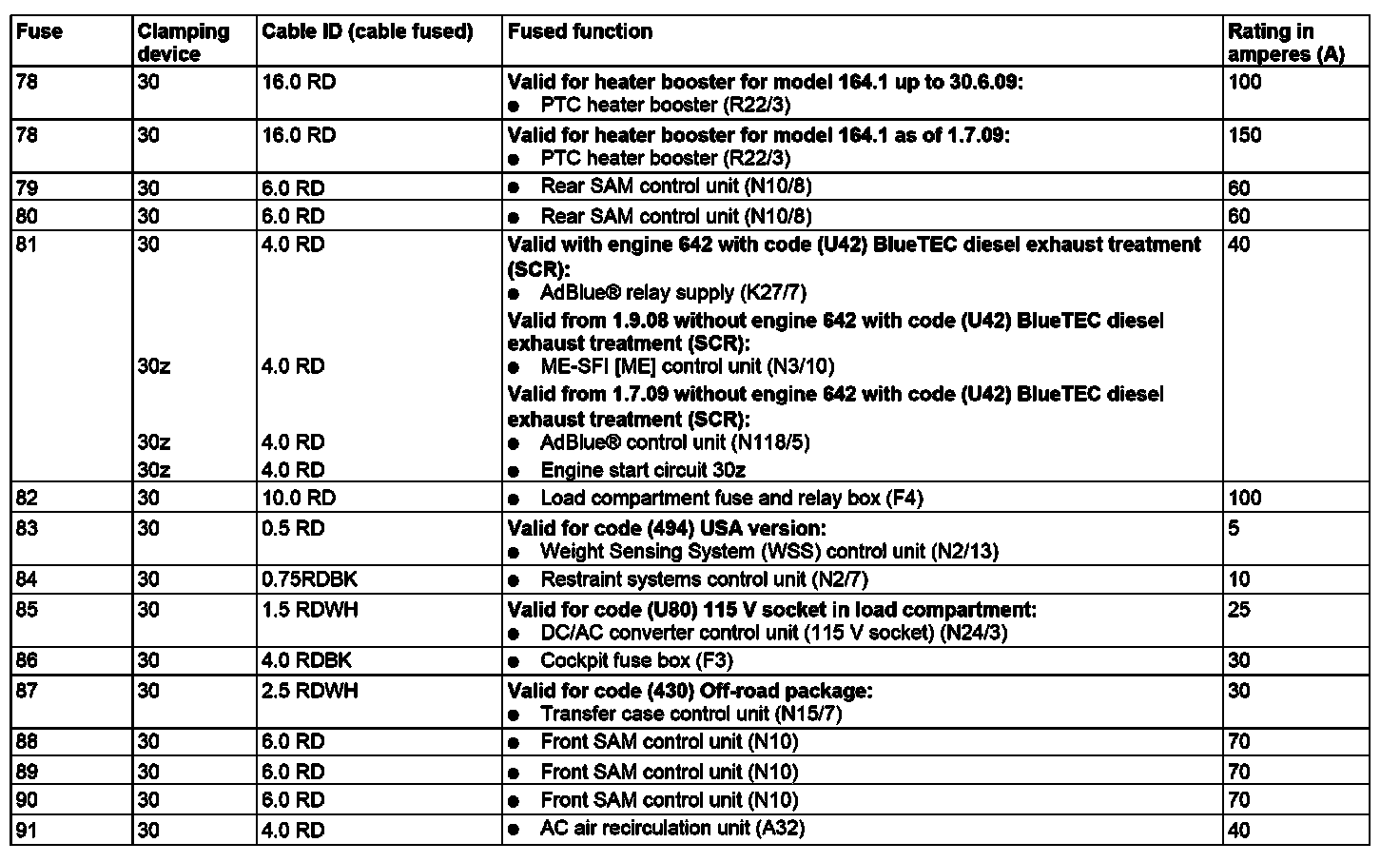

Fuse 78 To 91:
