GF54.15-P-1256-14GM Fuse Assignment of Load Compartment Fuse and Relay Box




GF54.15-P-1256-14GM Fuse Assignment of Load Compartment Fuse and Relay Box

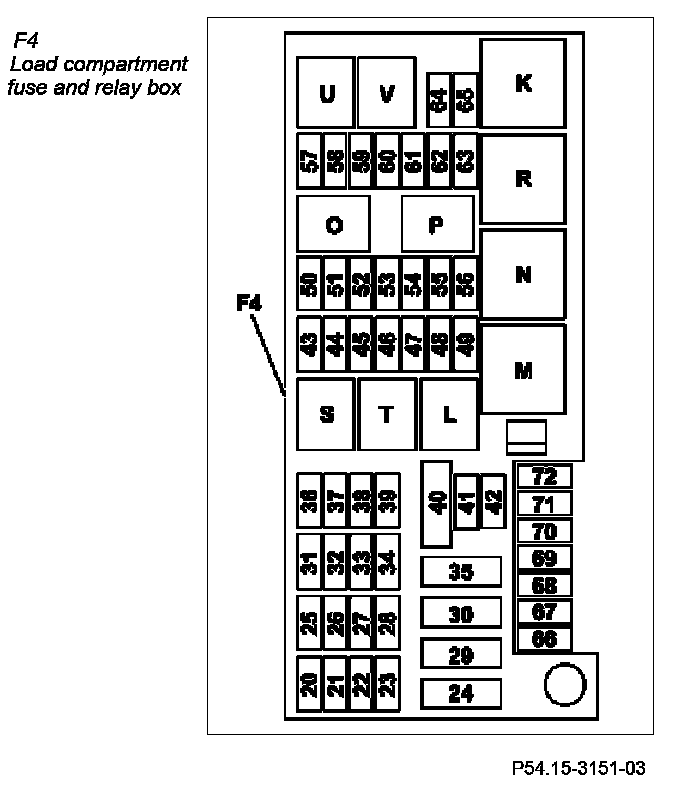

Component Location:

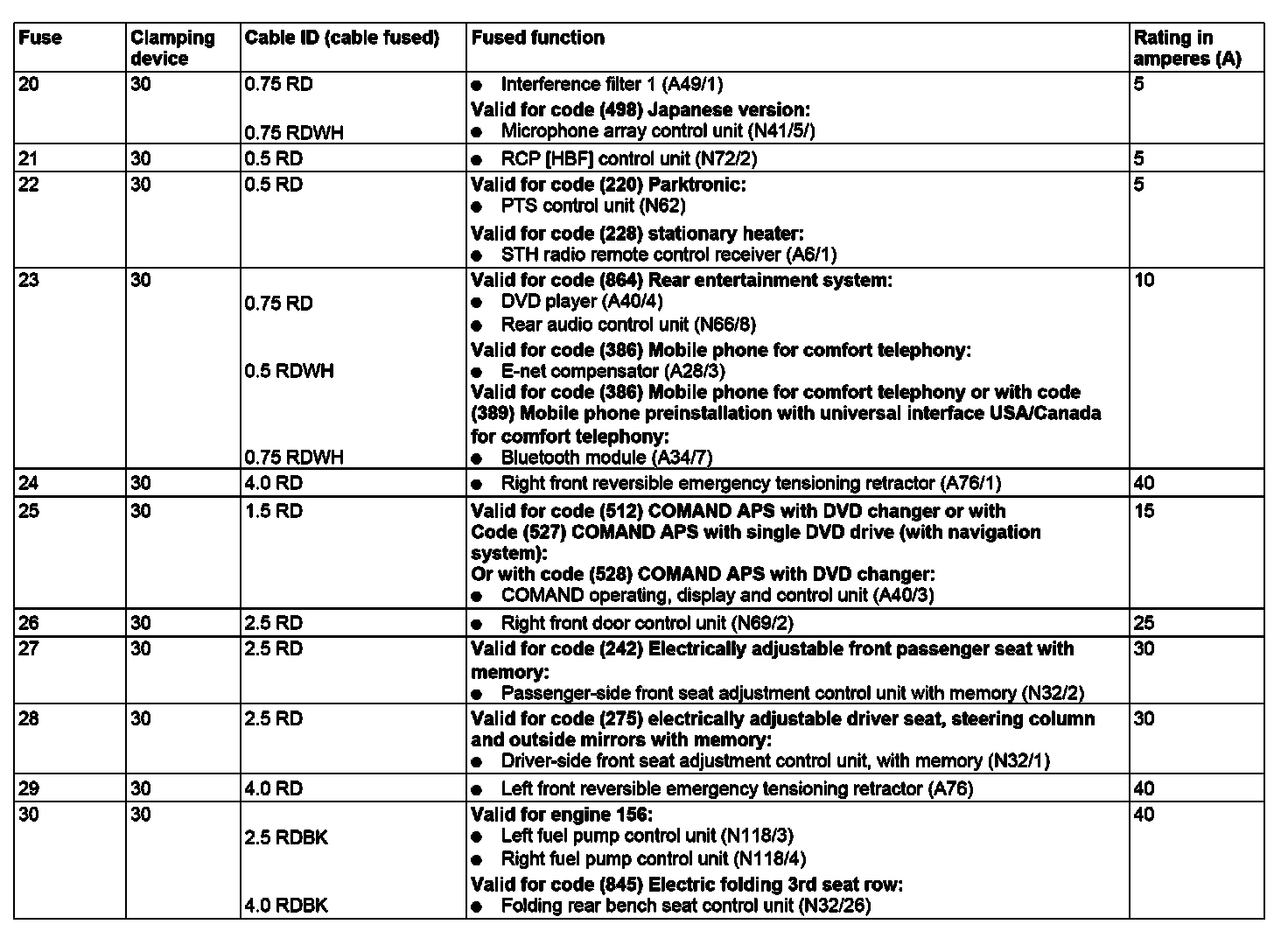

Fuse 20 To 30:
