Mercedes Benz Truck
>>
2011
>>
ML 350 4MATIC (164.186) V6-3.5L (272.967)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
>>
GF54.15-P-1256-07GM Fuse Assignment of Front Prefuse Box
GF54.15-P-1256-07GM Fuse Assignment of Front Prefuse Box
GF54.15-P-1256-07GM Fuse Assignment of Front Prefuse Box

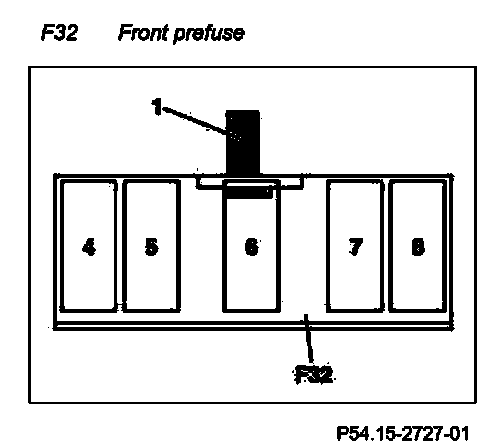

Component Location:

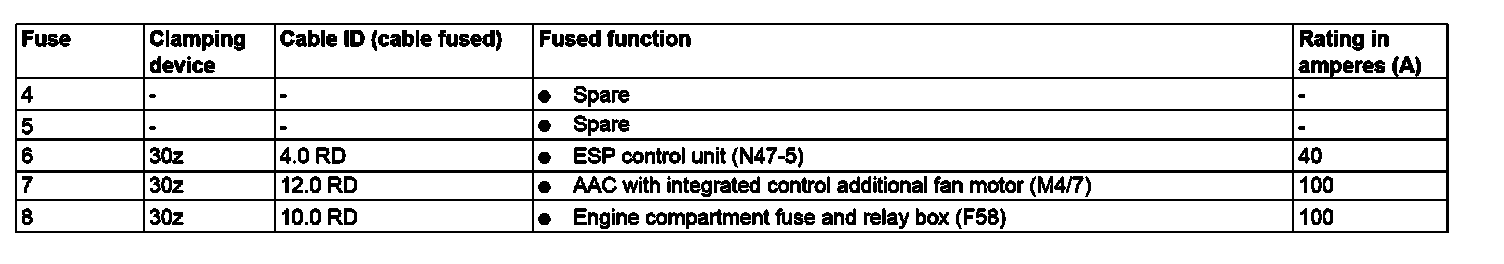

Fuse 4 To 8:
