GF54.15-P-1256-02GM Fuse Assignment of Fuse and Relay Box In Right Engine Compartment




GF54.15-P-1256-02GM Fuse Assignment of Fuse and Relay Box In Right Engine Compartment

Component Location:

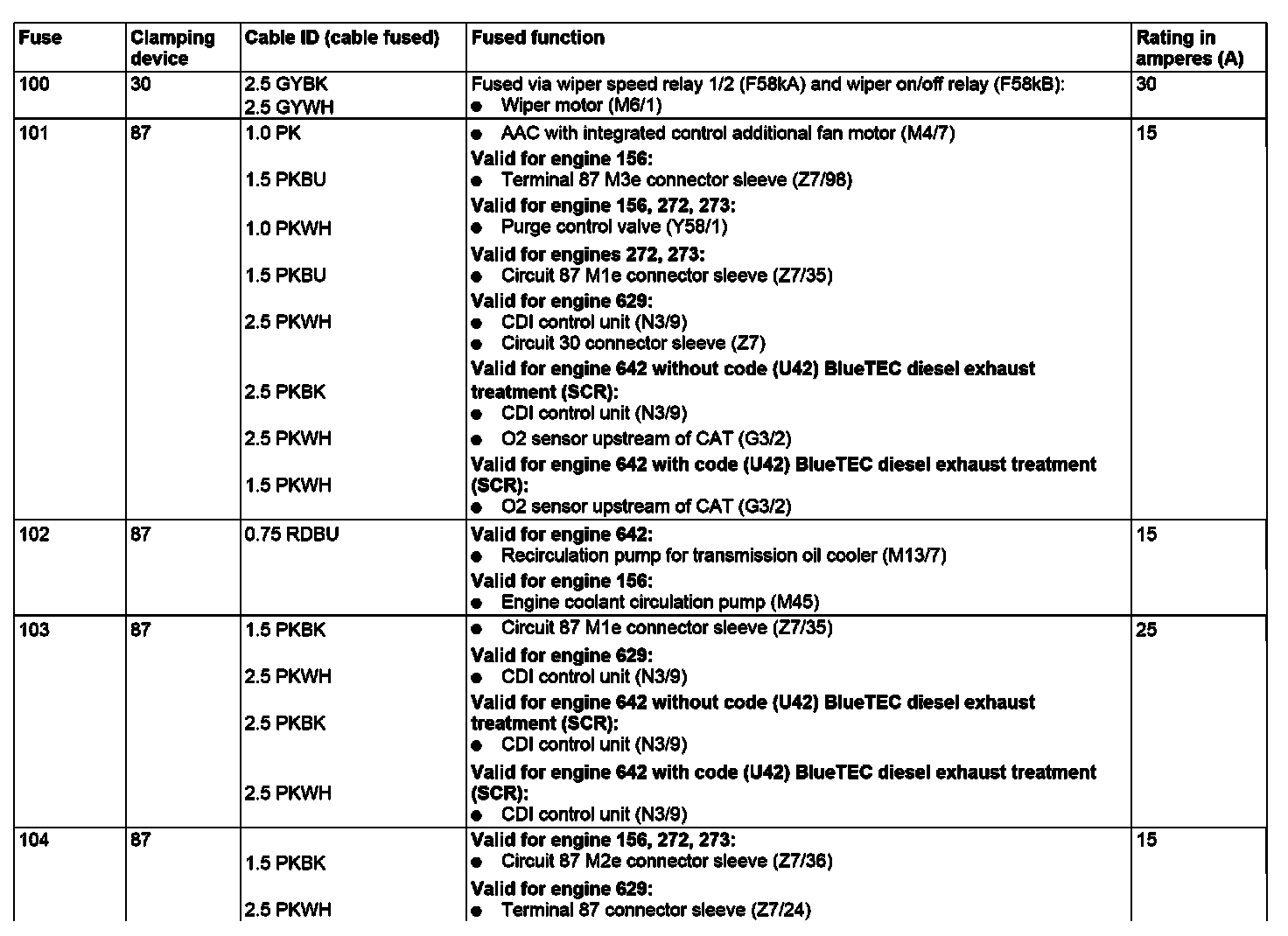

Fuse 100 To 104:

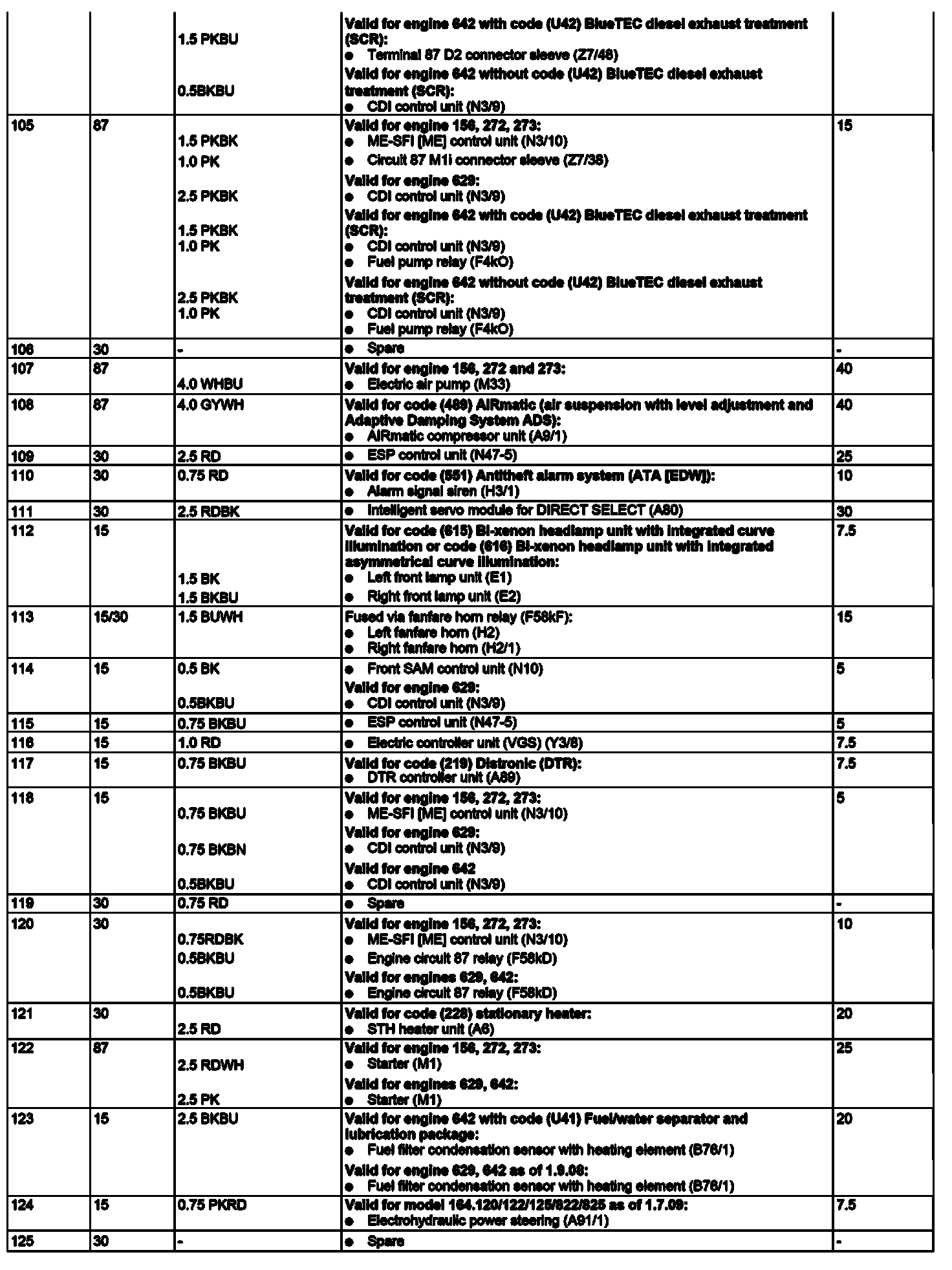

Fuse 104 Continued To 125:
