Skid Plate: Service and Repair

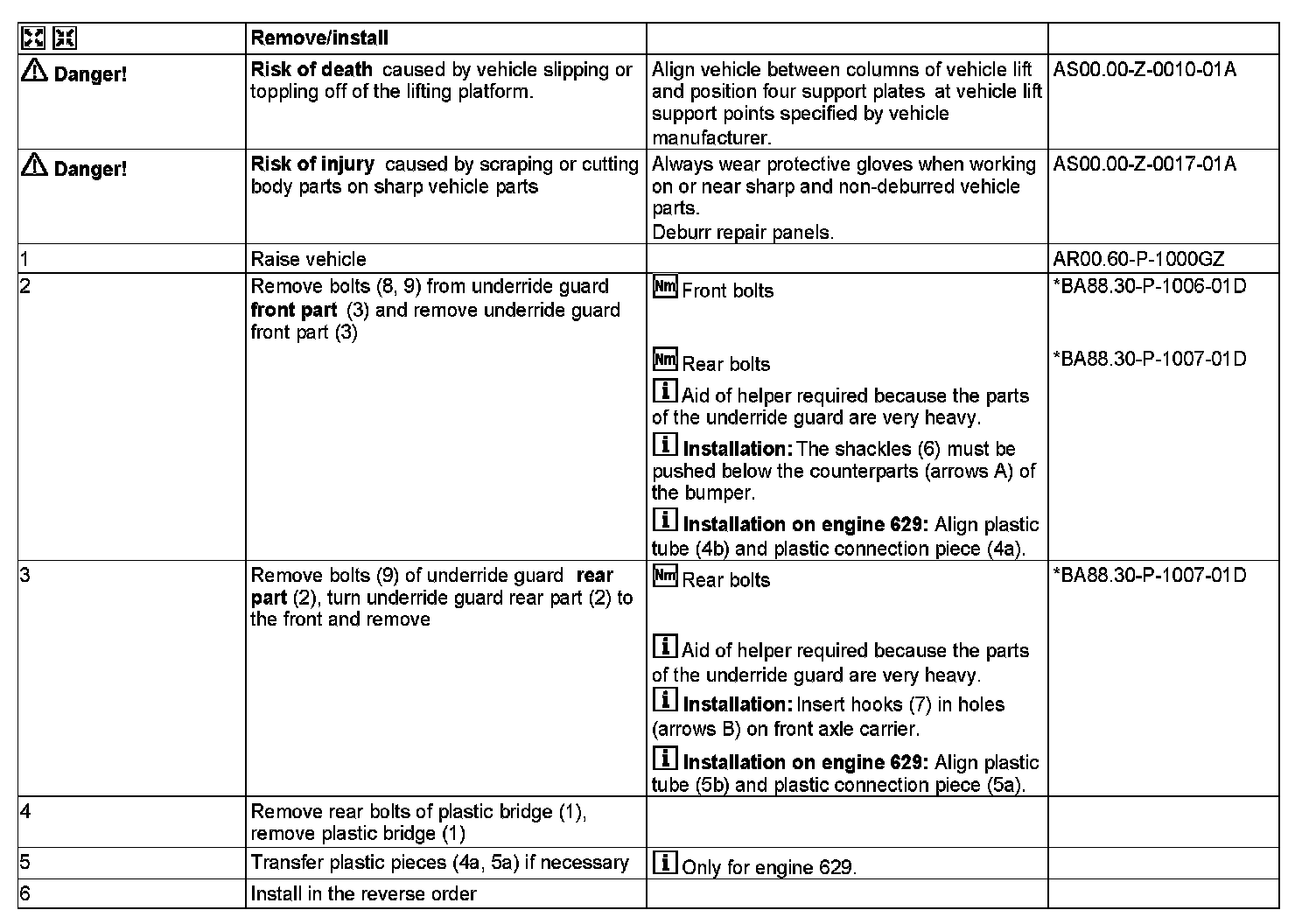

AR88.30-P-0010GZ Remove/Install Underride Guard
MODEL 164
- with CODE (430) Off-Road package

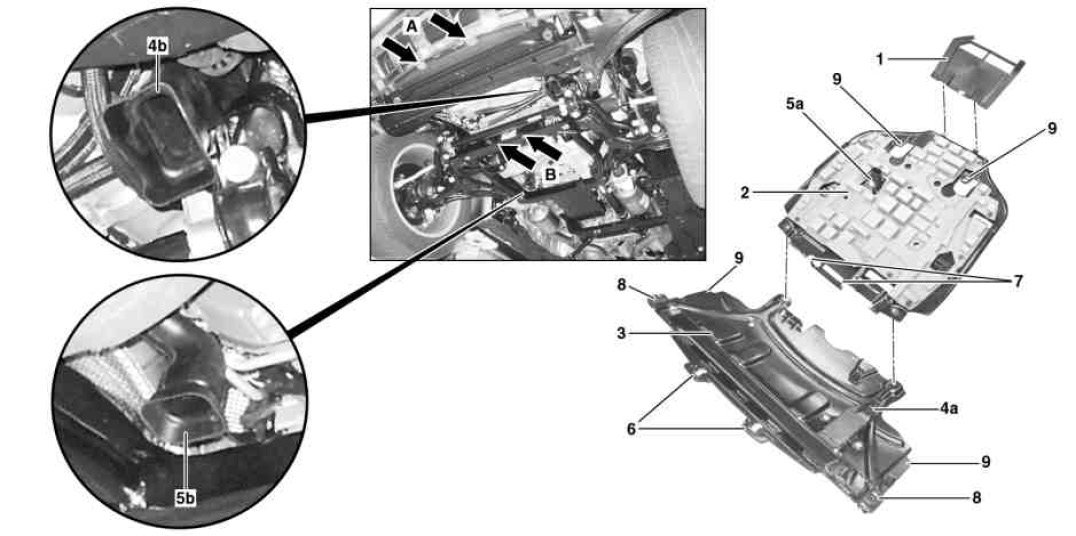

Shown on model 164.8 with engine 629

1 Plastic bridge
2 Underride guard rear part
3 Underride guard front part
4a Plastic connection piece
4b Plastic tube
5a Plastic connection piece
5b Plastic tube
6 Shackles
7 Hook

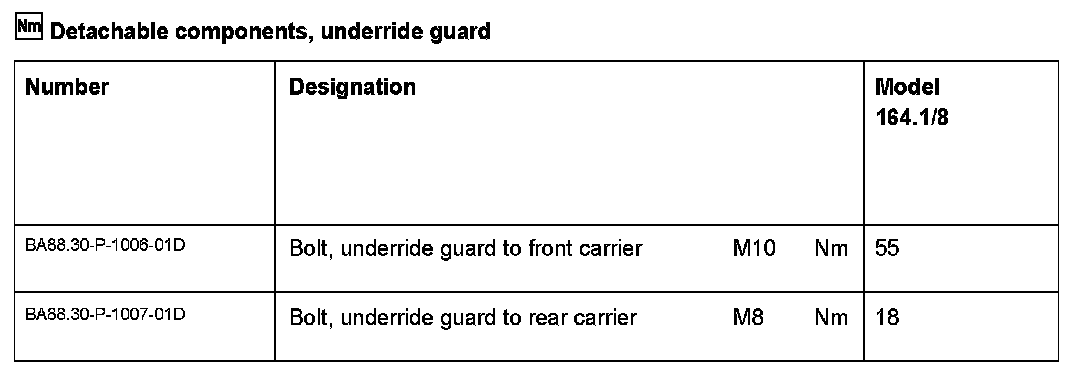

8 Front bolts
9 Rear bolts
