Tire Pressure Module: Service and Repair
AR40.15-P-0100CY Remove/install tire pressure monitoring system control unit
- with CODE (470) Tire pressure monitor (base)
- with CODE (494) USA version

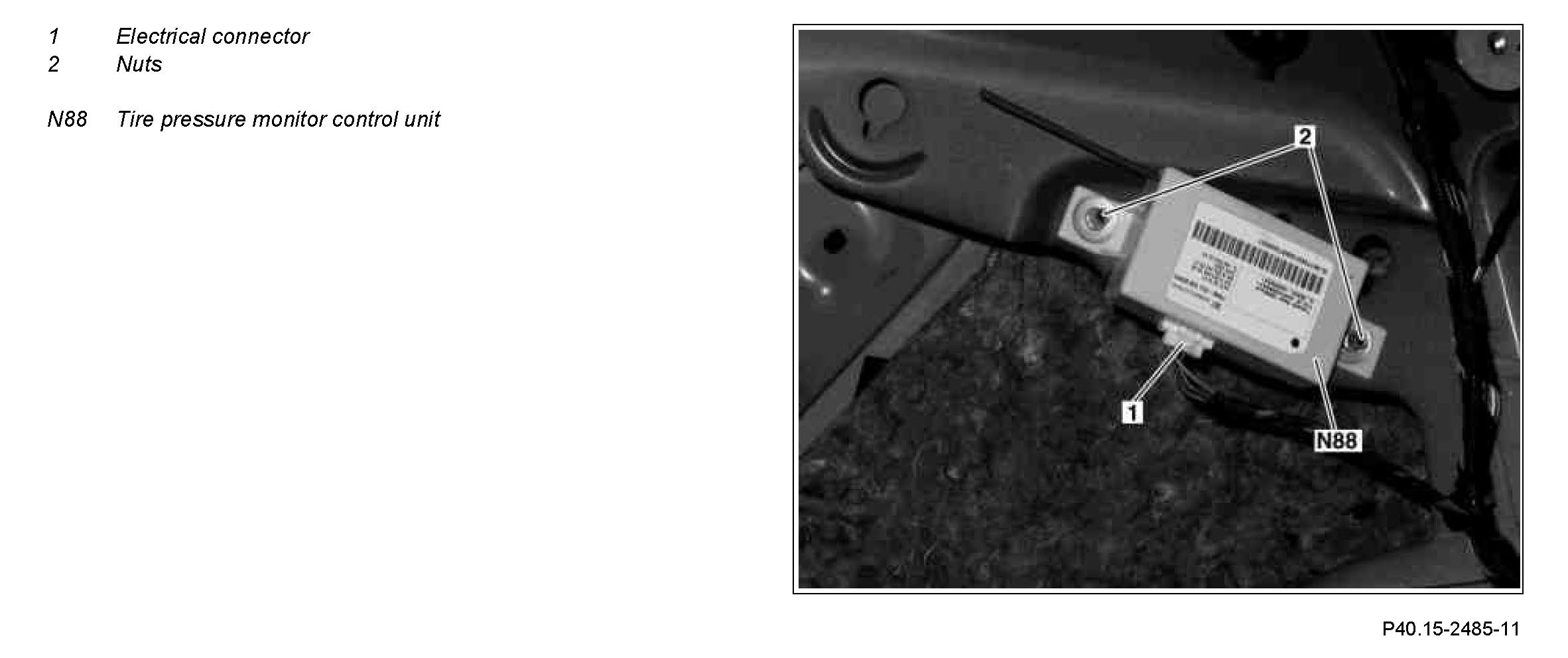

Component Identification:

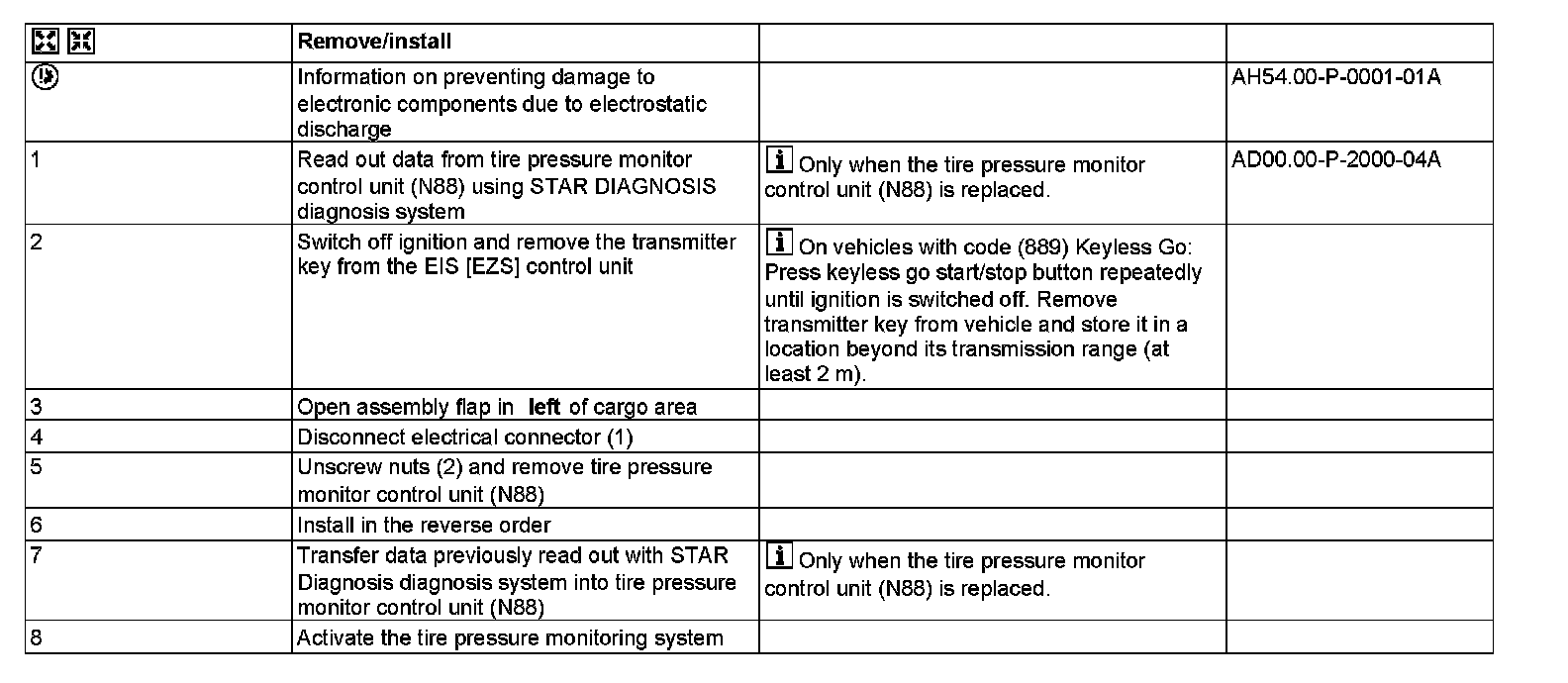

Steps 1-8:
AR40.15-P-0100CY Remove/install tire pressure monitoring system control unit
- with CODE (470) Tire pressure monitor (base)
- with CODE (494) USA version
