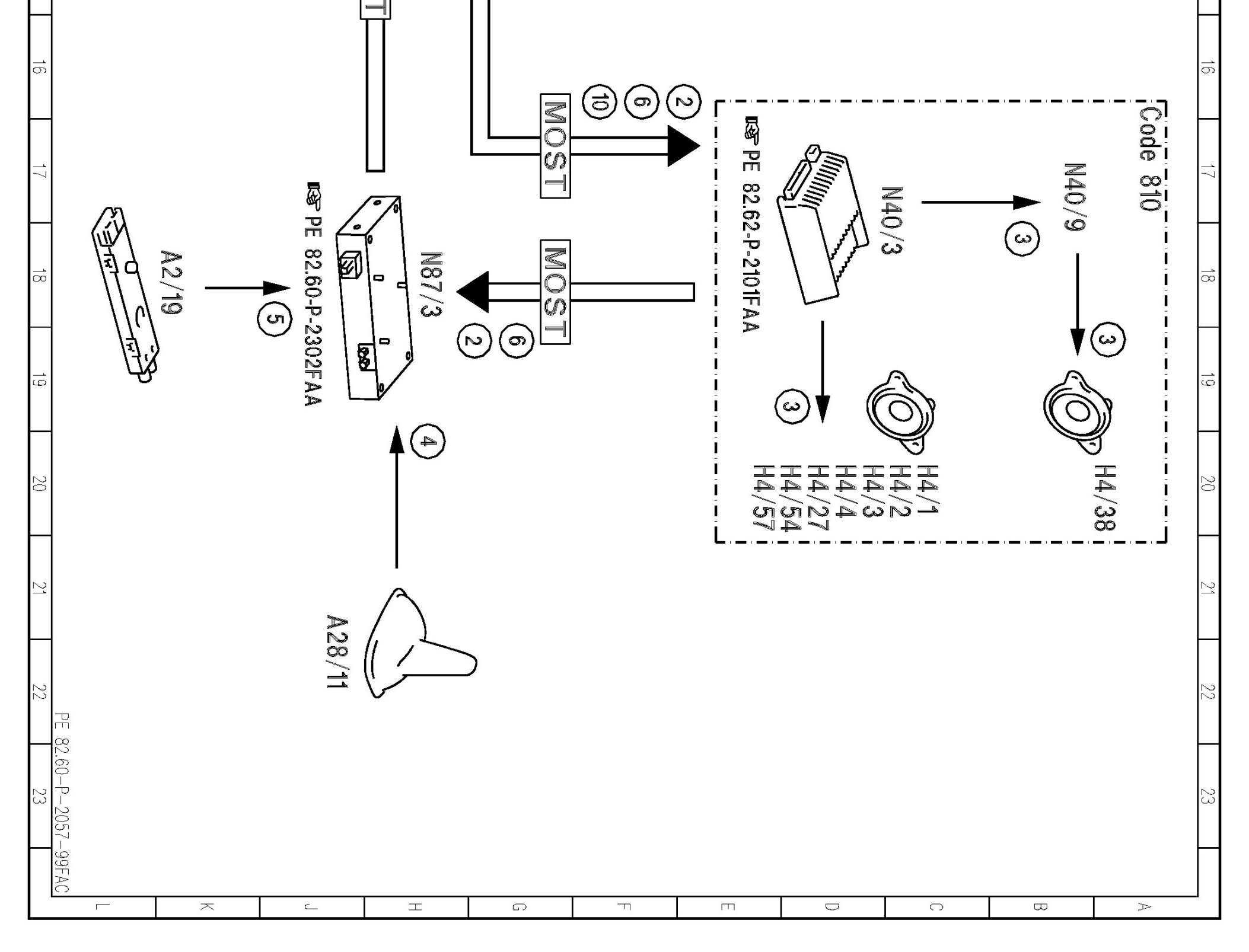

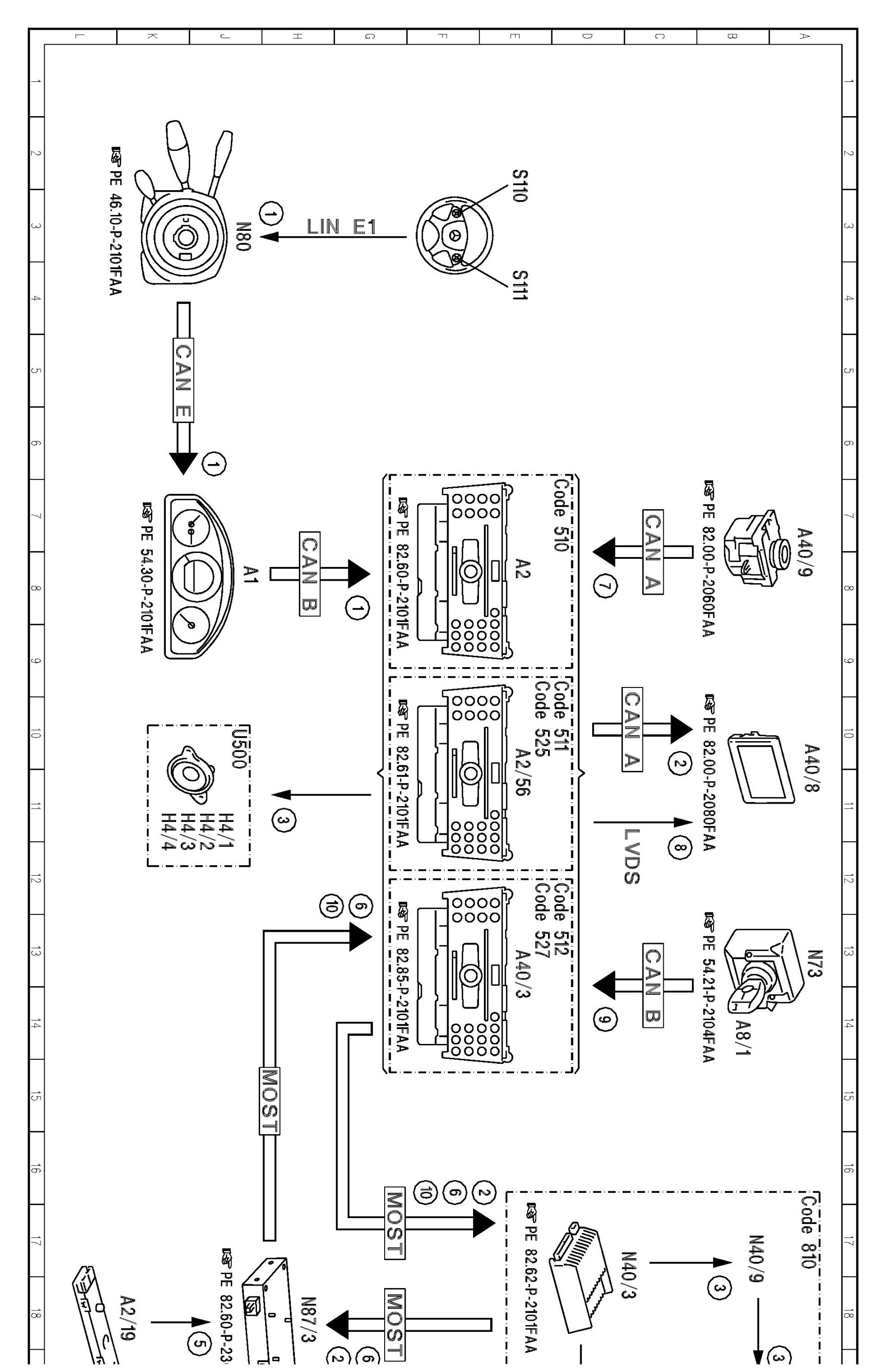

PE82.60-P-2057FAC Electrical Function Diagram For Digital Audio Broadcasting, Function

PE82.60-P-2057FAC Electrical Function Diagram For Digital Audio Broadcasting, Function

MODEL 204.9
- with CODE (537) Digital radio
- with CODE (833) Great Britain version

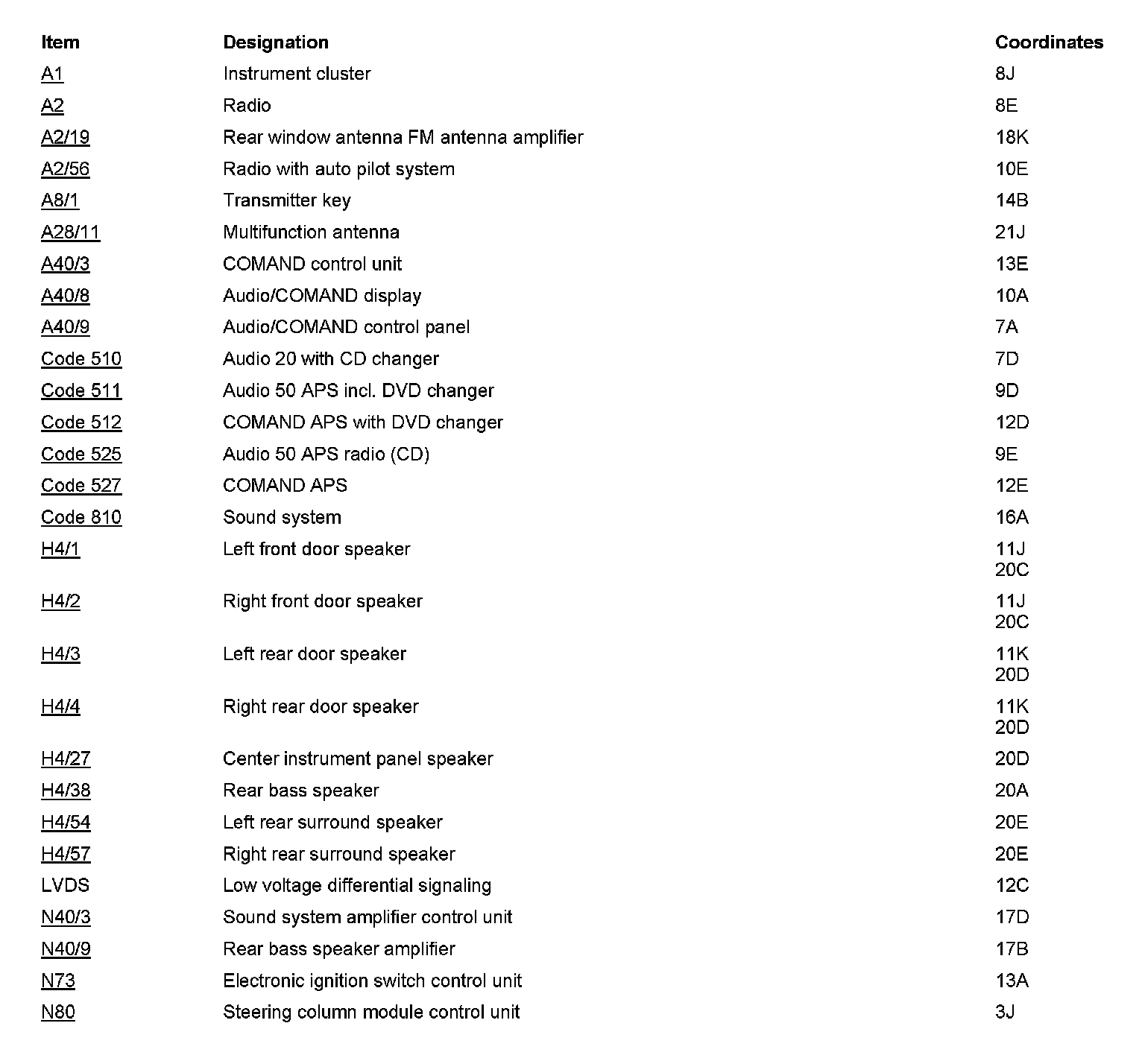

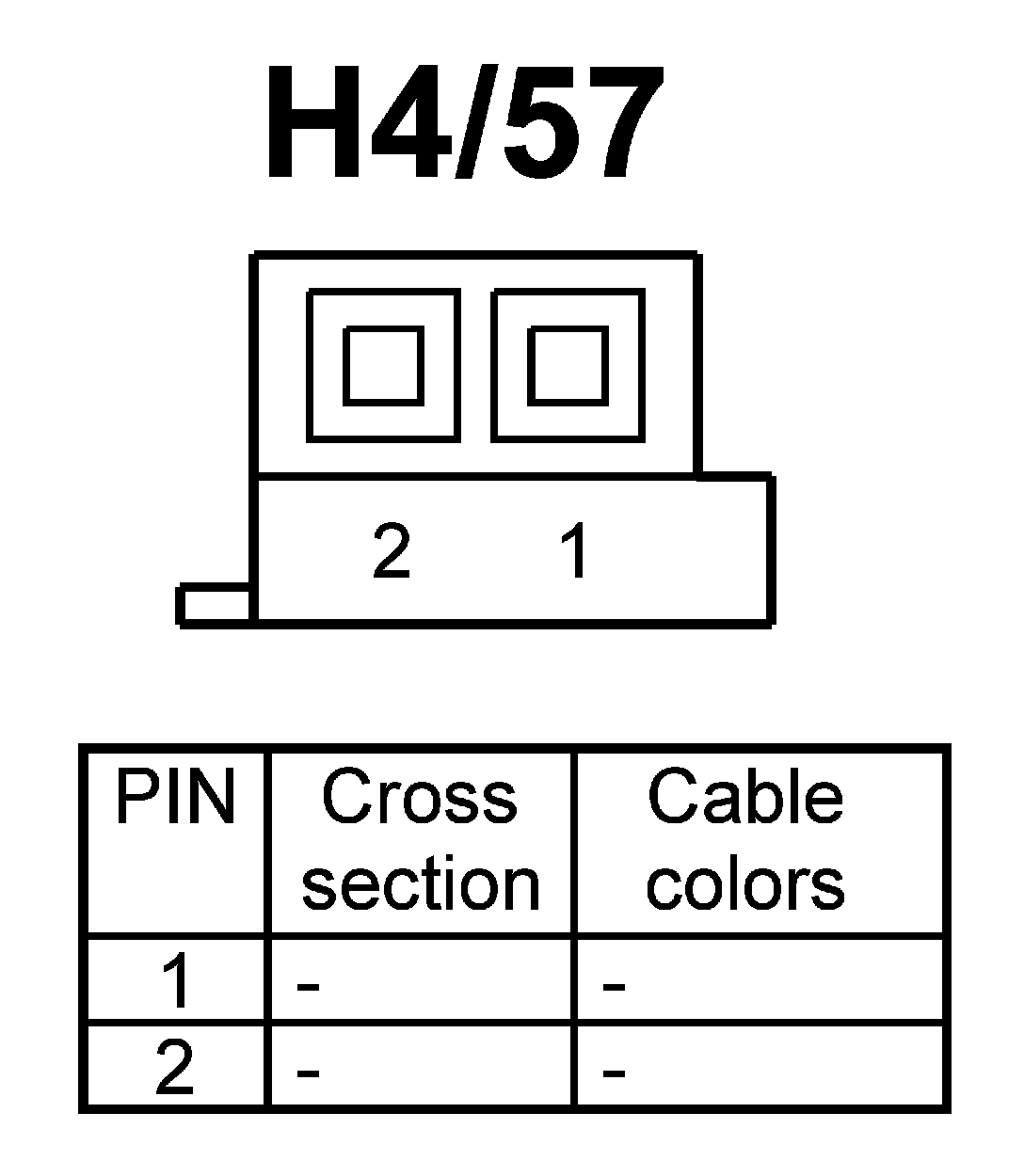

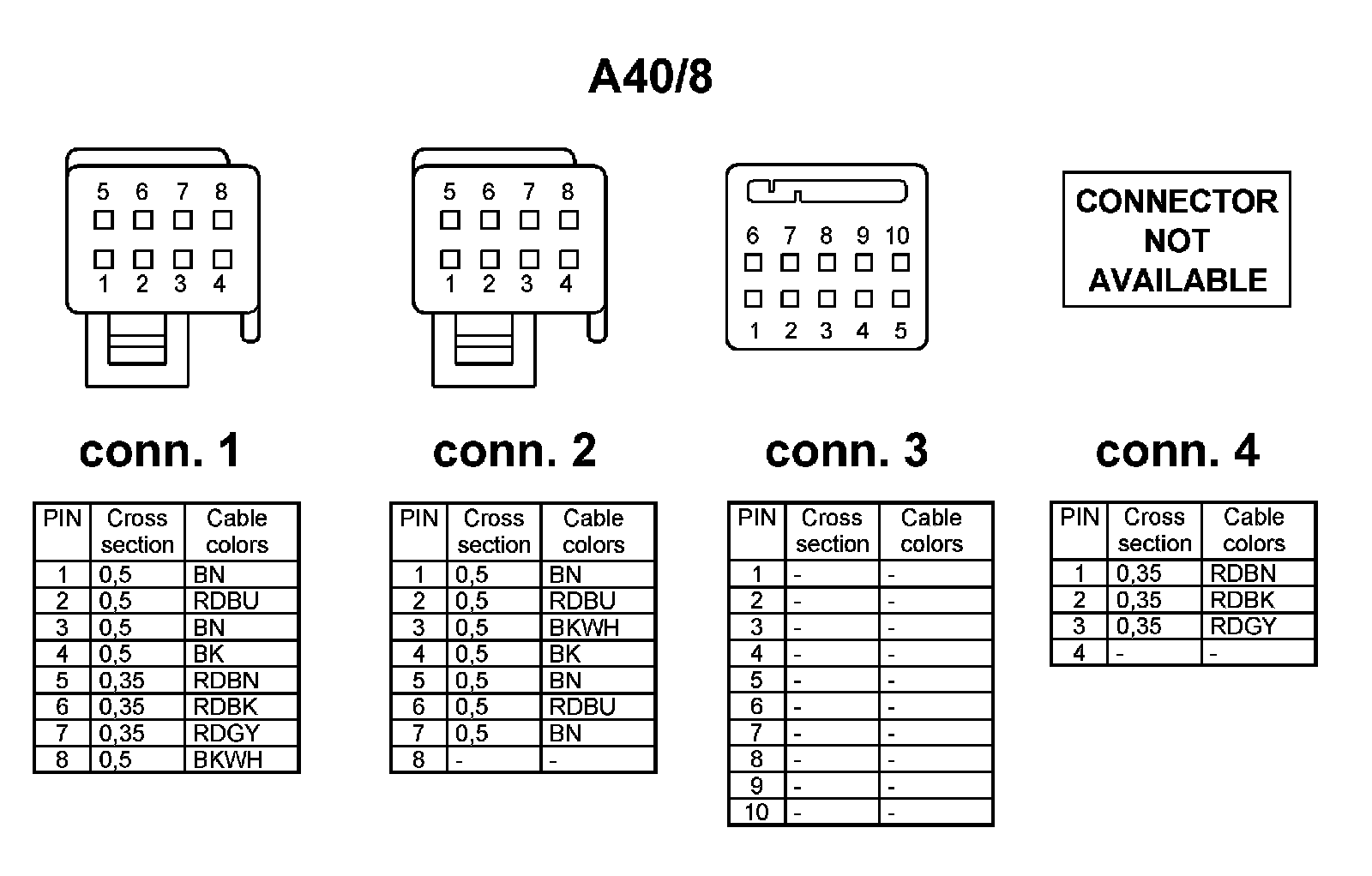

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
