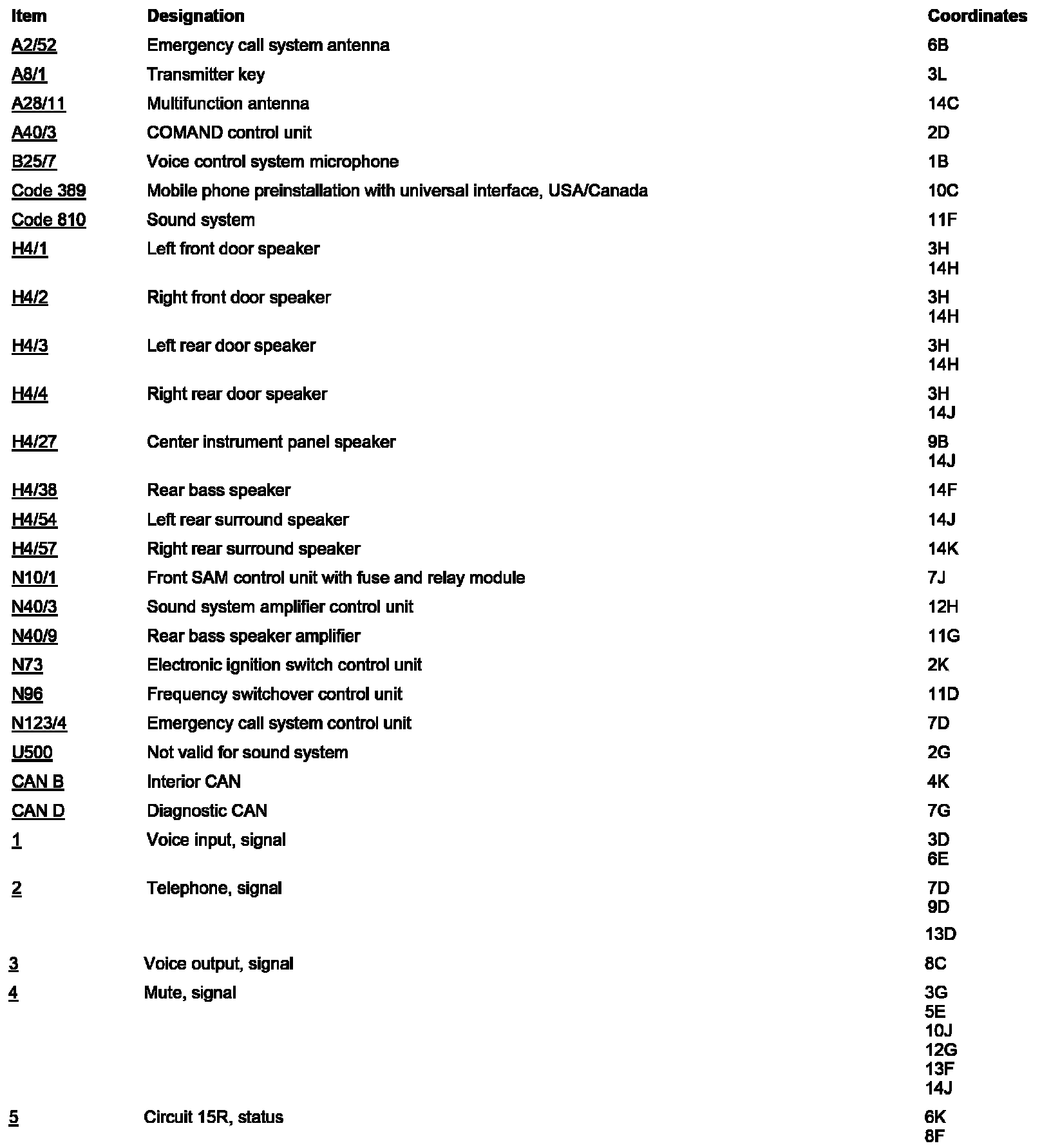

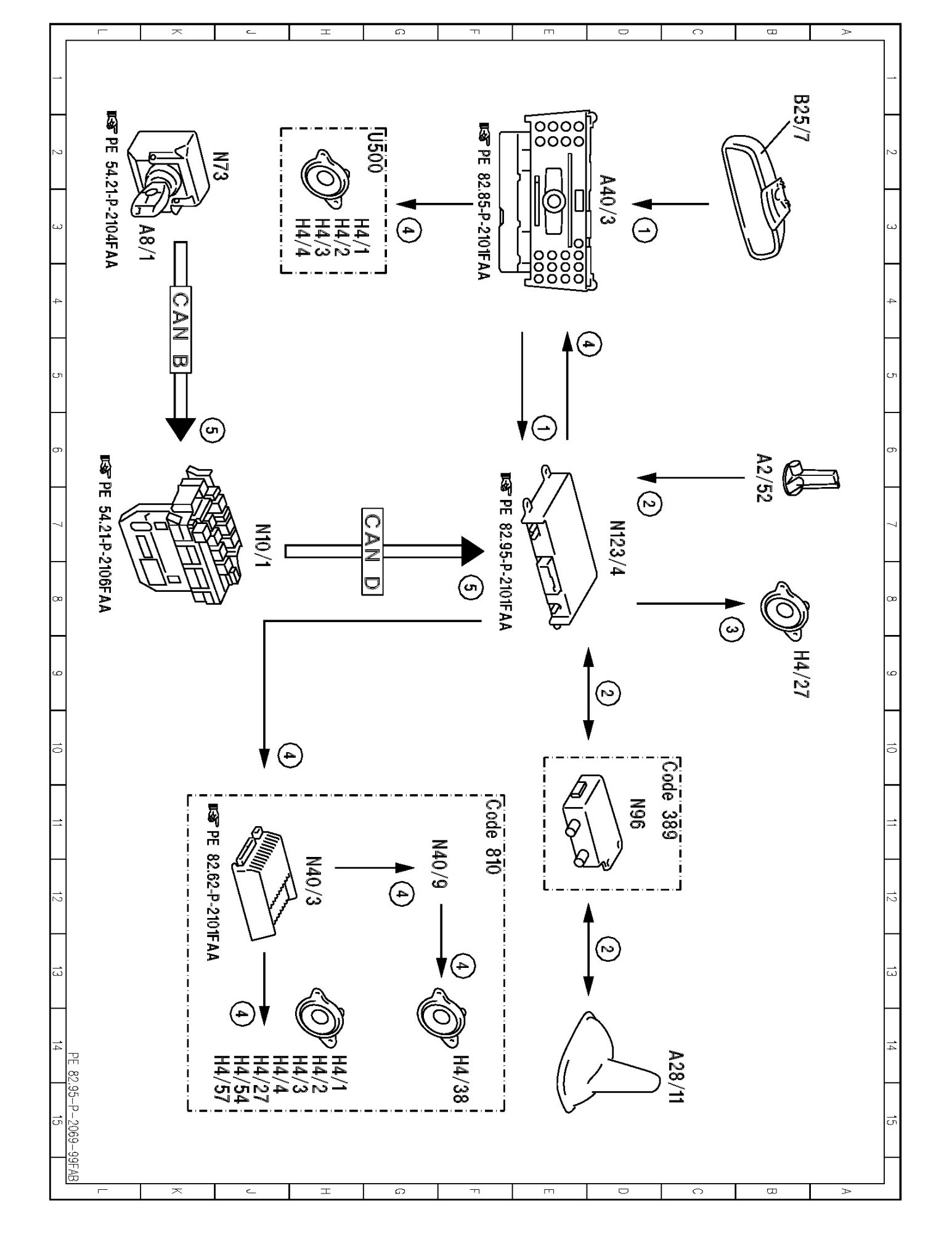

PE82.95-P-2069FAB Electrical Function Diagram For Voice Connection Between Vehicle and Service Center, Function

PE82.95-P-2069FAB Electrical Function Diagram For Voice Connection Between Vehicle and Service Center, Function
- with CODE (359) TELE AID emergency call system










Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
