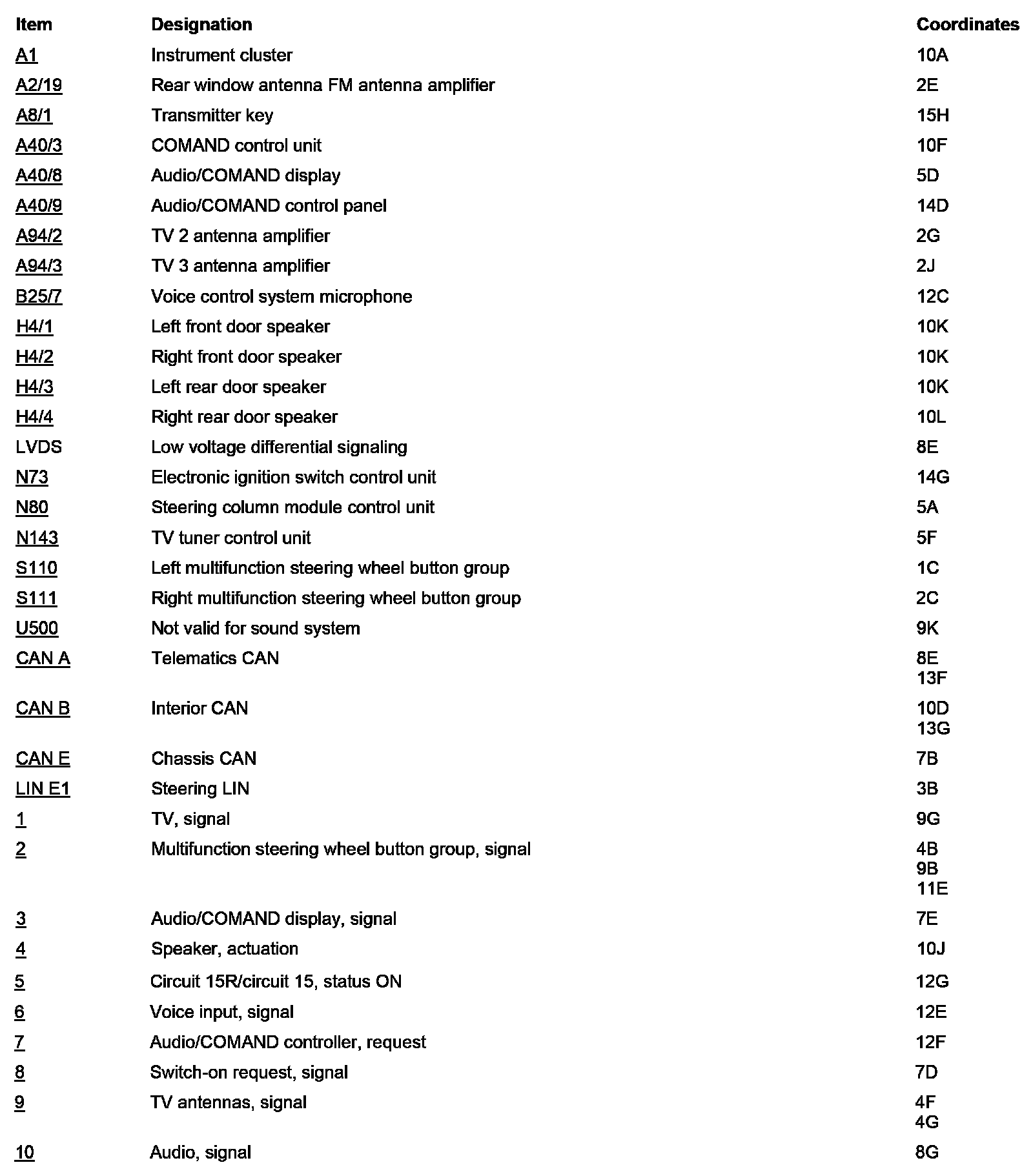

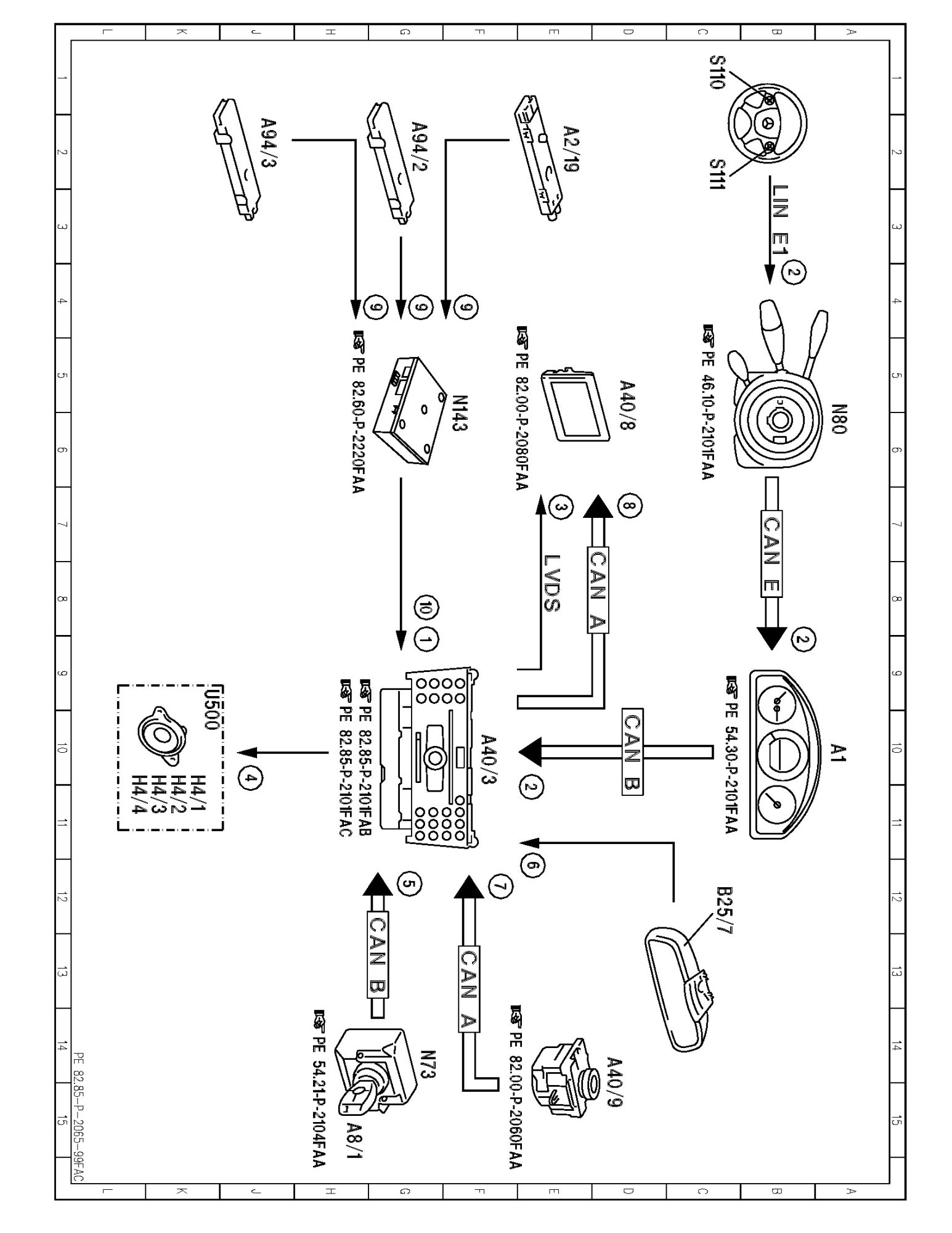

PE82.85-P-2065FAC Electrical Function Diagram For TV Mode, Function

PE82.85-P-2065FAC Electrical Function Diagram For TV Mode, Function
- with CODE (527) COMAND APS with single DVD drive (with navigation system)
- with CODE (498) Japan version










Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
