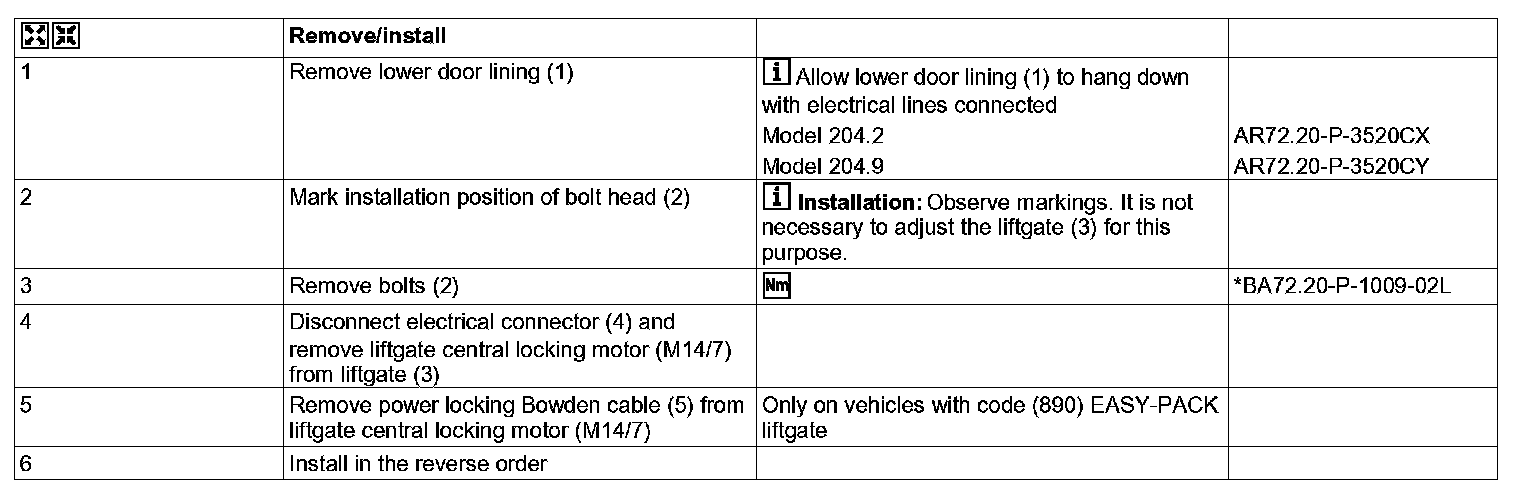

AR72.20-P-2550CX Remove/Install Liftgate Lock

AR72.20-P-2550CX Remove/Install Liftgate Lock

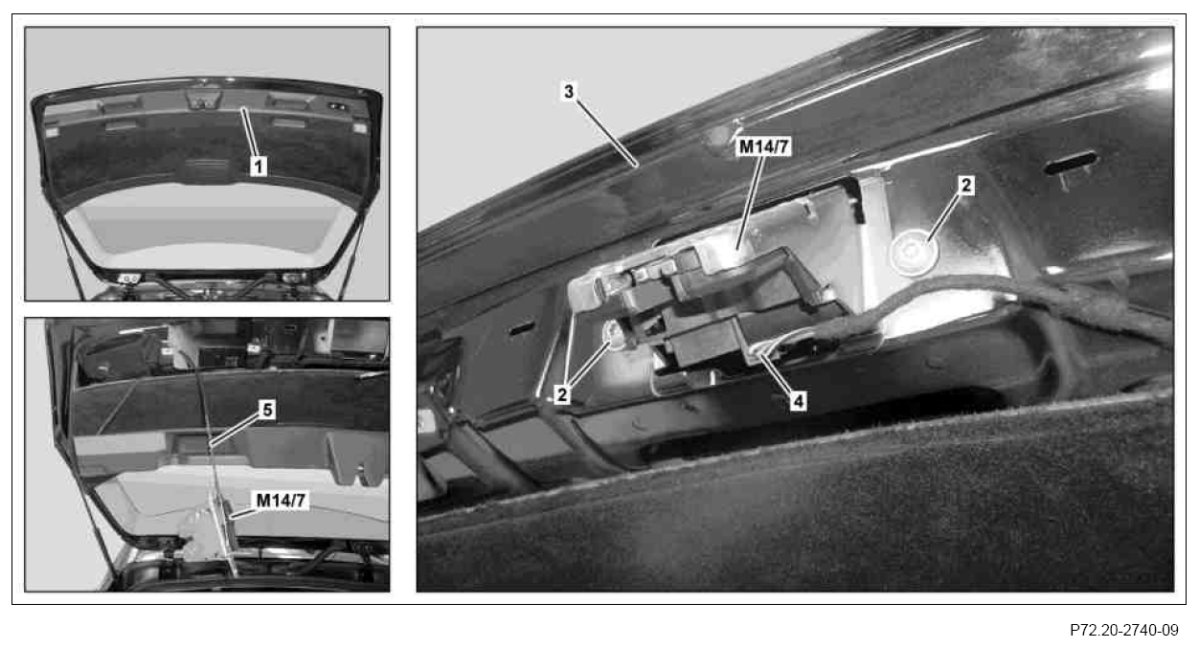

Shown on model 204.2







1 Lower door lining
2 Screw
3 Liftgate
4 Electrical connector
5 Power locking Bowden cable (with code (890) EASY-PACK liftgate)
M14/7 Liftgate central locking motor
