Rear Subframe: Service and Repair

AR35.10-P-0042-01CWG Remove/install strut

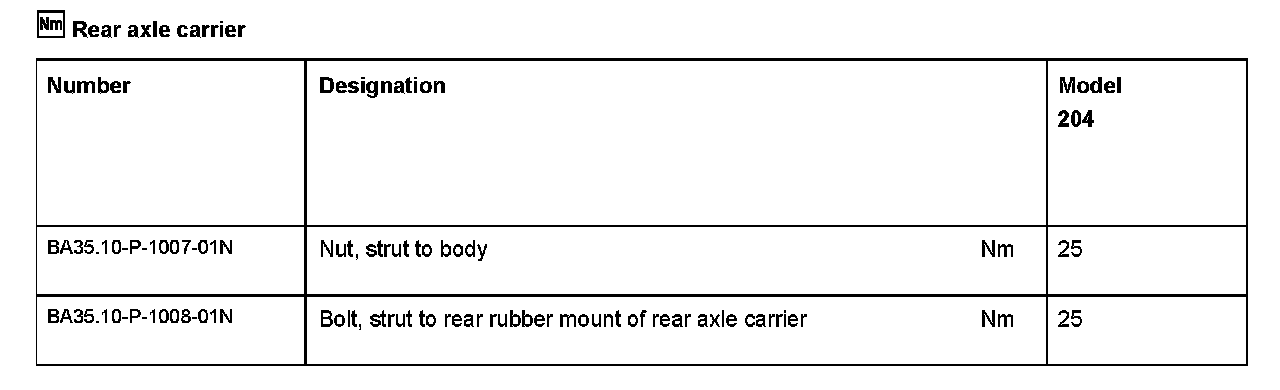

Rear axle carrier:

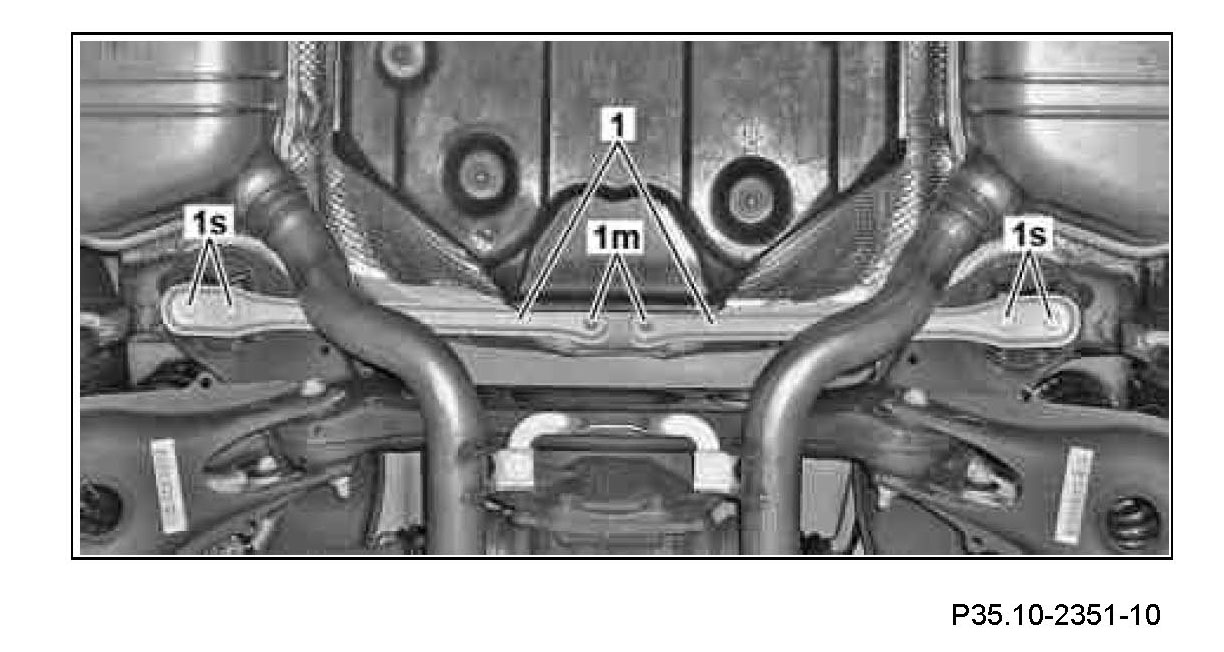

Component Identification:

1 Unscrew nuts (1m).
2 Remove bolts (1s) and remove struts (1s)
3 Install in the reverse order.
