Quarter Window Motor: Service and Repair

AR67.39-P-1050GY Remove/Install Electric Vent Window Motor
- with CODE (414) Power glass tilting/sliding roof

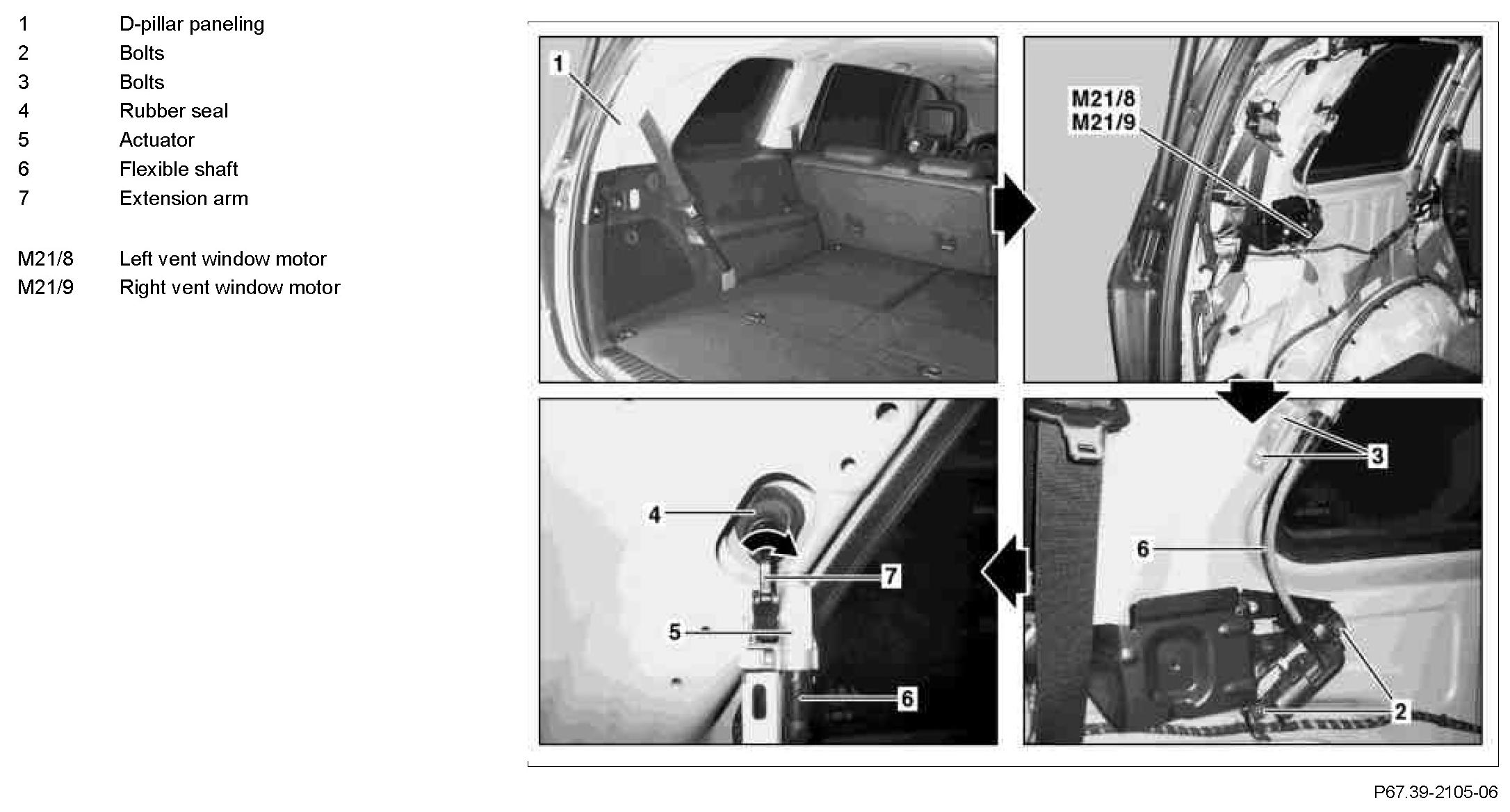

Component Identification:

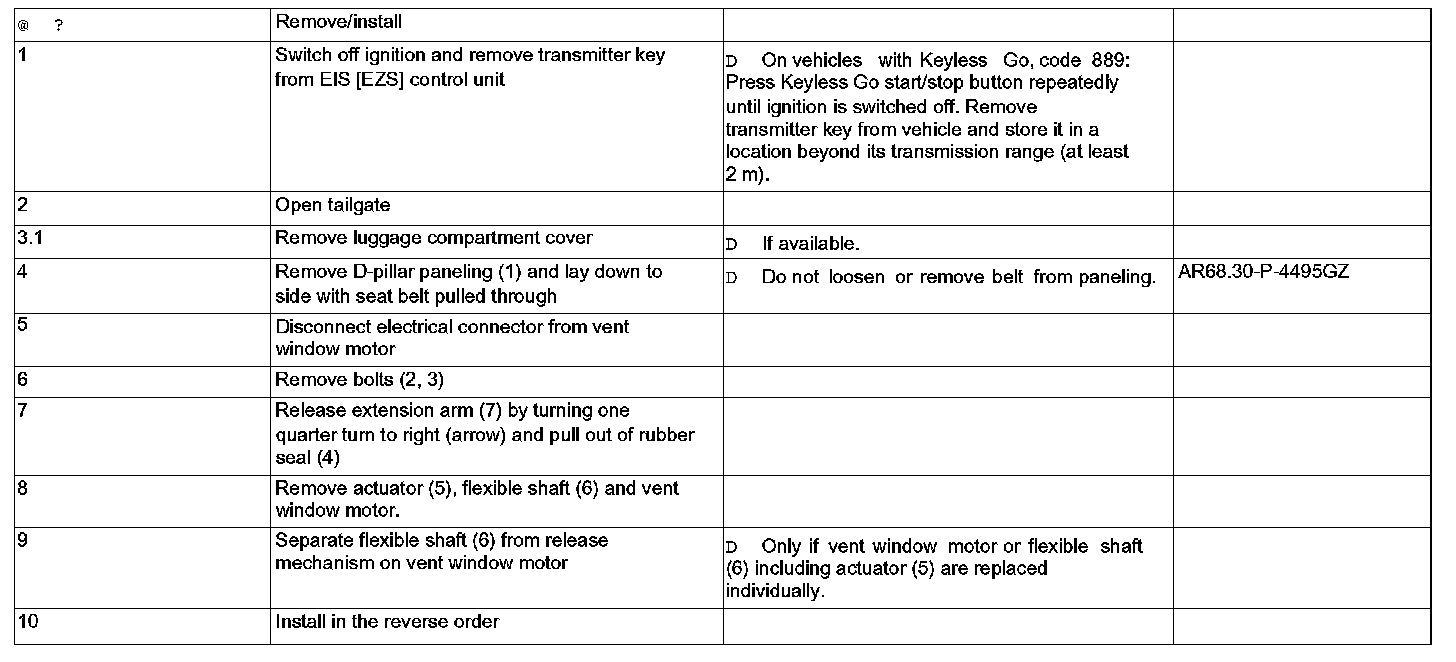

Steps 1 - 10:
