Starter Motor: Service and Repair

AR15.30-P-7100RT Removing and Installing Starter
ENGINE 113.971 in MODELS 251.075 /175

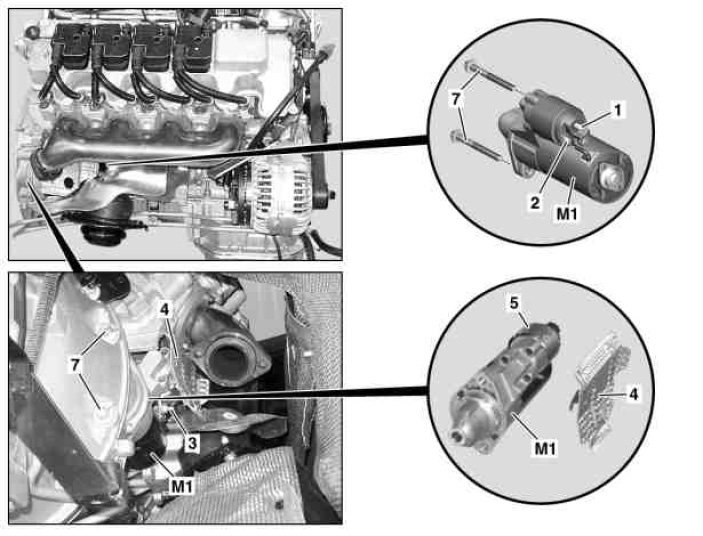

1 Electrical line for circuit 30
2 Electrical line for circuit 50
3 Nuts
4 Shield
5 Mounting clamp
7 Bolts

M1 Starter
