BE03.10-P-1000-01D Inspection Data of Connecting Rod
BE03.10-P-1000-01D Inspection Data of Connecting Rod
BE03.10-P-1000-01D Check values for
connecting rod

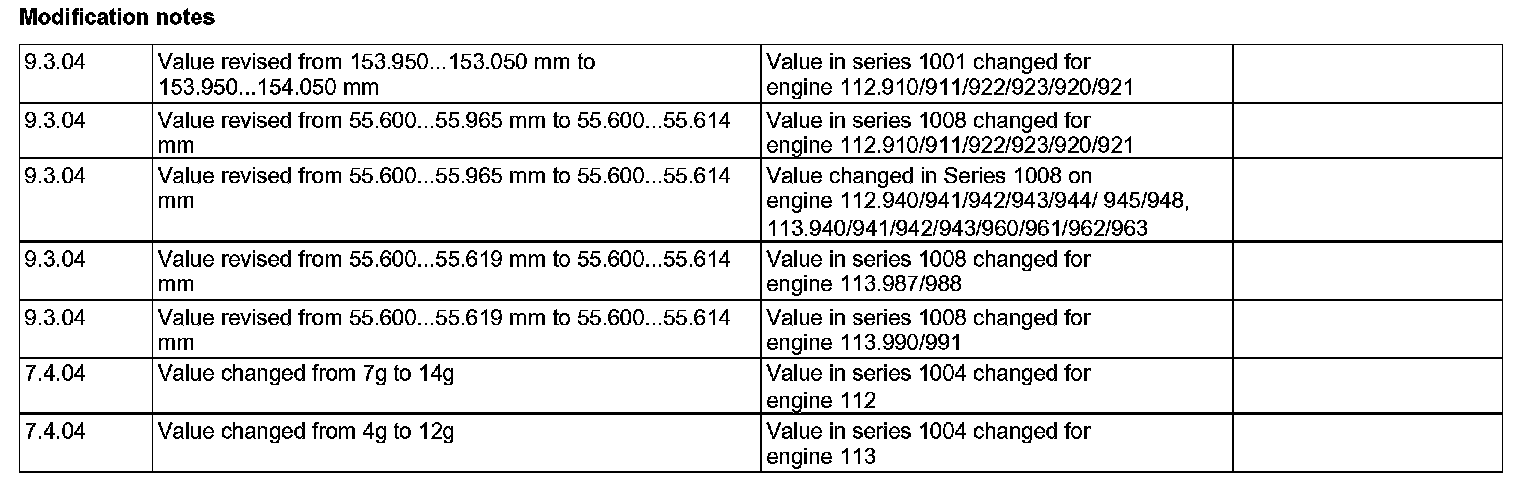

Modification notes:

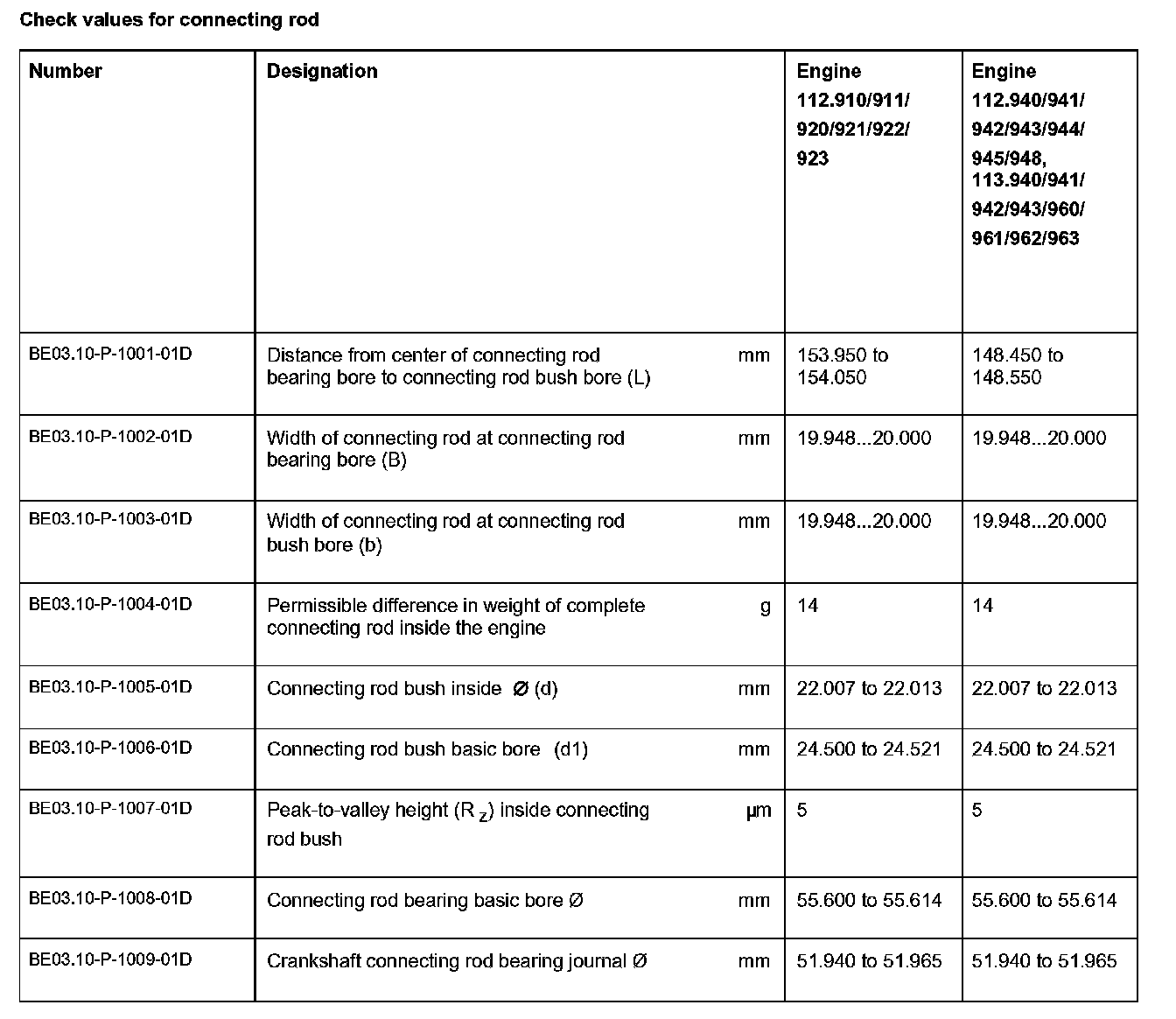

Check values for connecting rod:
Check values for connecting rod:
