AR72.12-P-1500RT Remove/Install Rear Door Window Guide Rail



AR72.12-P-1500RT Remove/Install Rear Door Window Guide Rail
- At rear of rear door

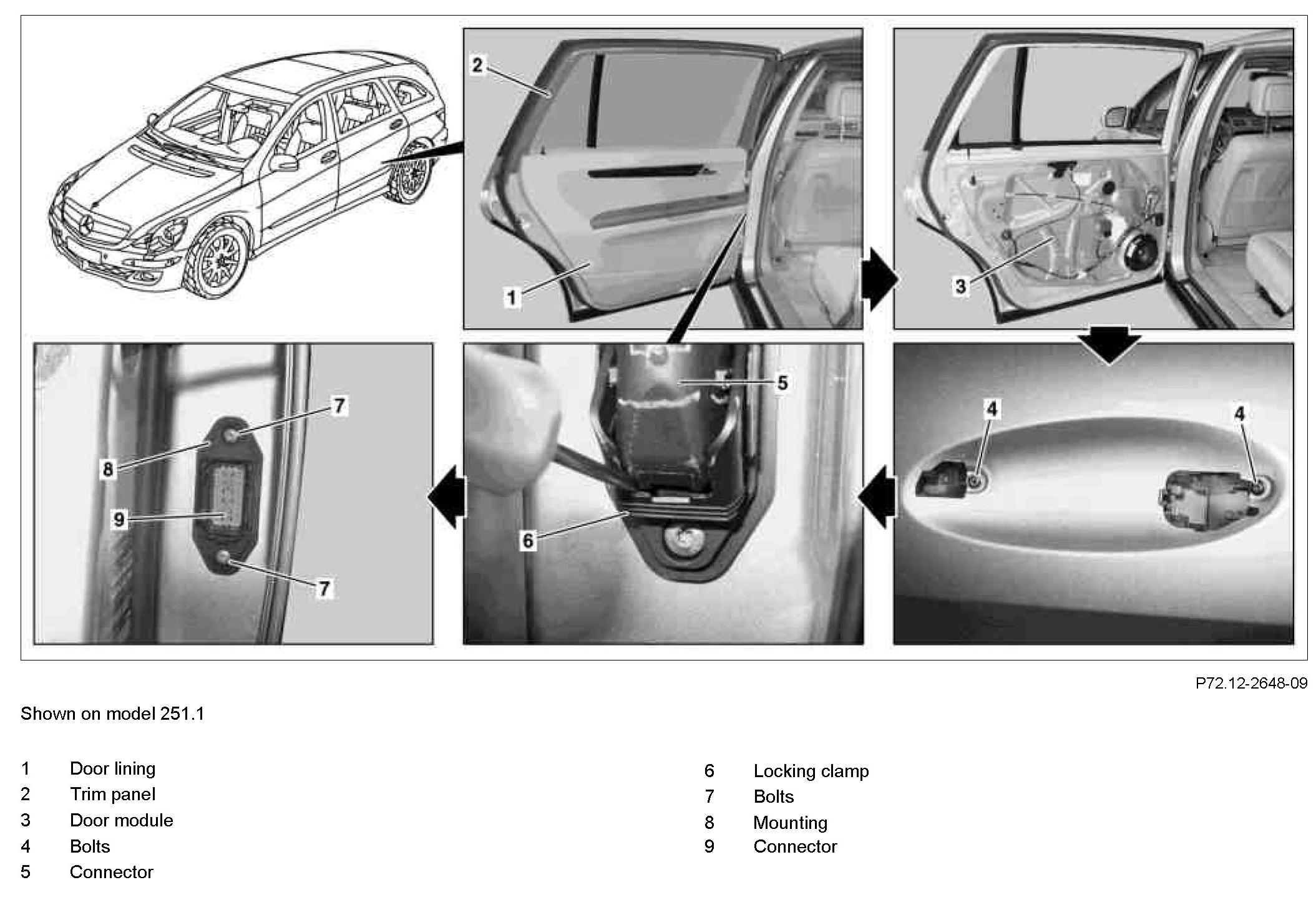

Component Identification:




Component Identification:

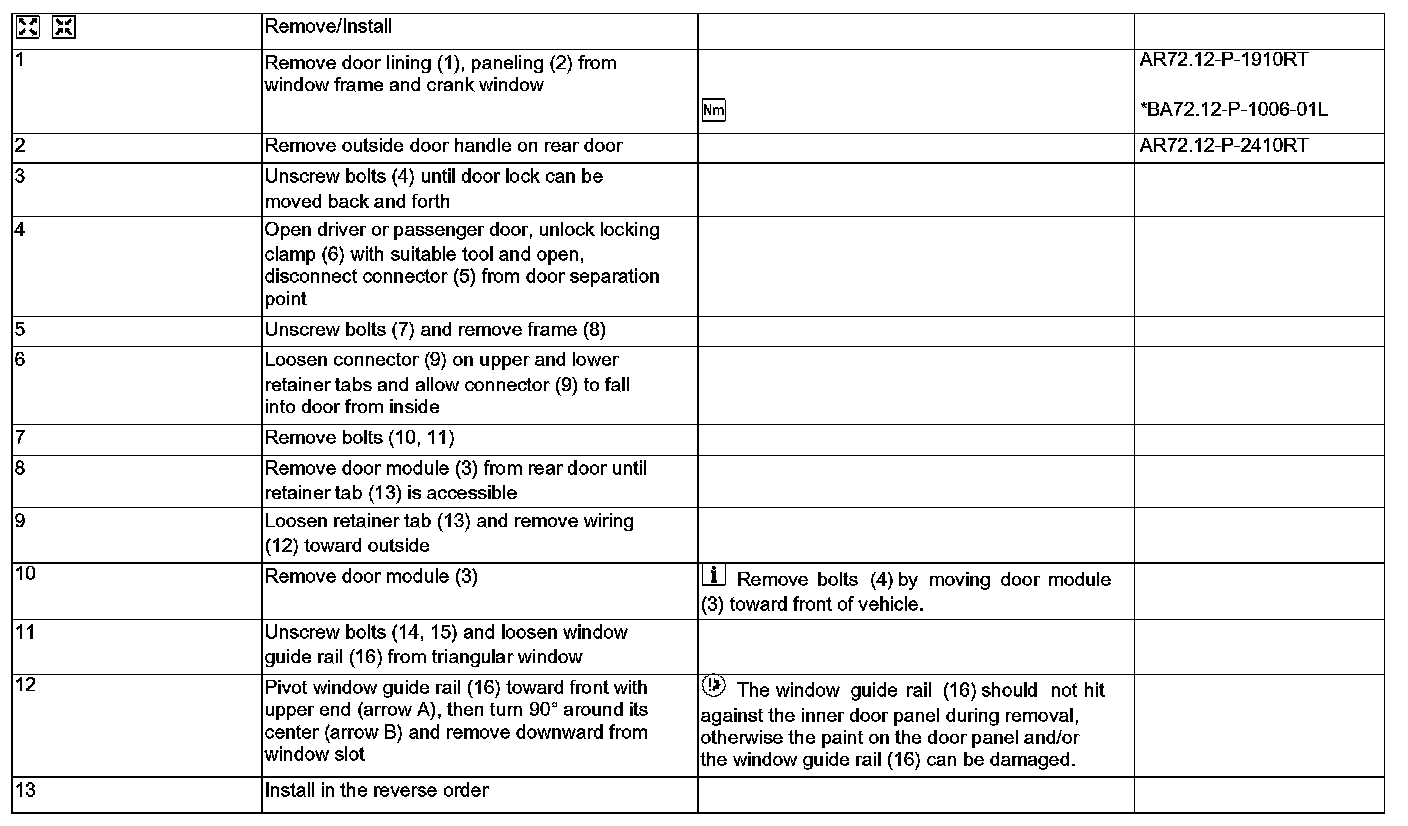

Steps 1 - 13:

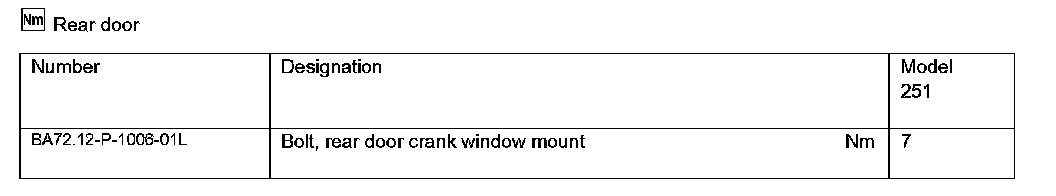

Rear Door:
