Starter Motor: Service and Repair

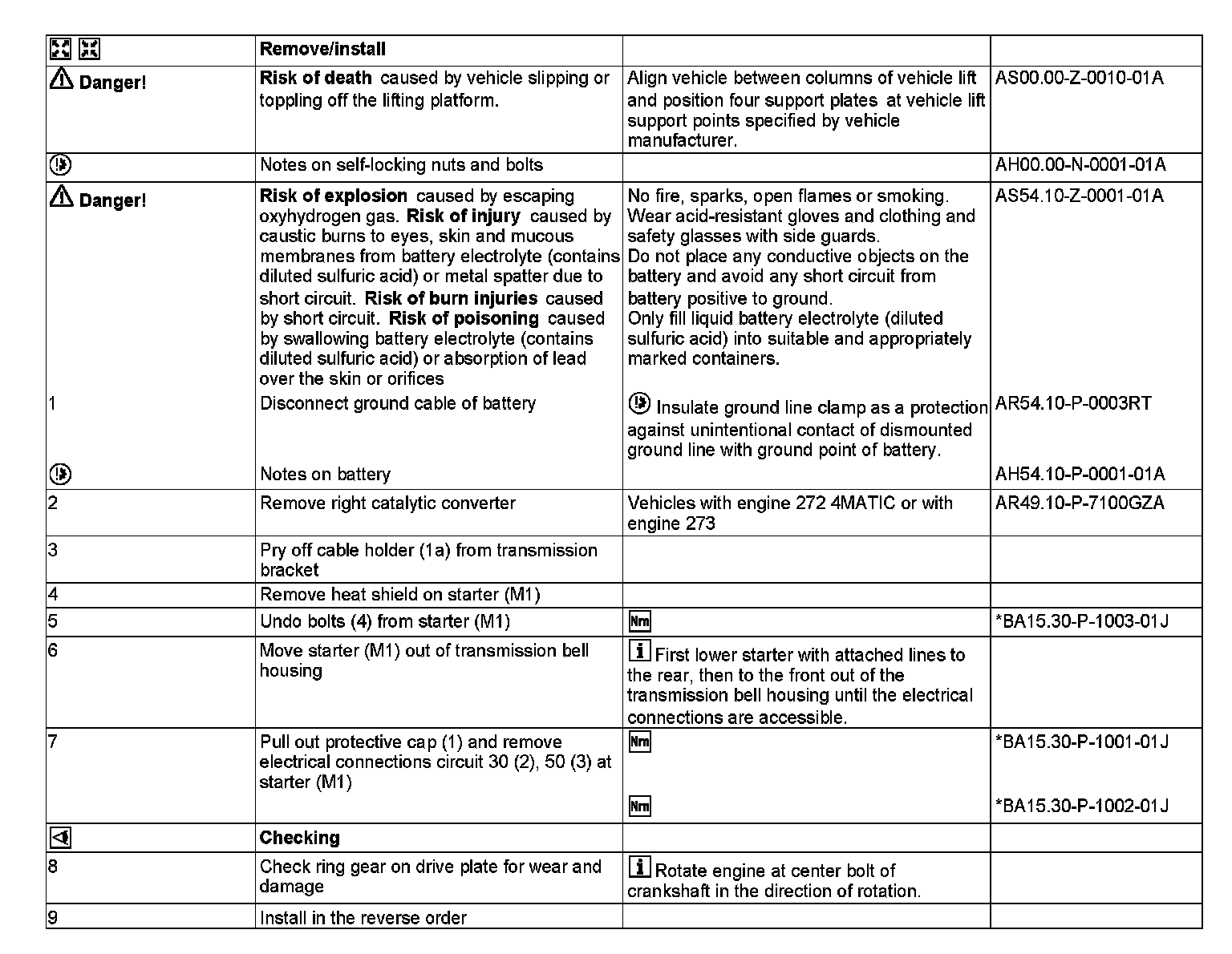

AR15.30-P-7100RTA Remove/Install Starter
ENGINE 272, 273 in MODEL 251





1 Protective cap
1a Cable holder
2 Electrical connection circuit 30
3 Electrical connection circuit 50
4 Bolts

M1 Starter
