Negative: Service and Repair



AR54.10-P-0003RT Disconnect/Connect Battery's Ground Cable

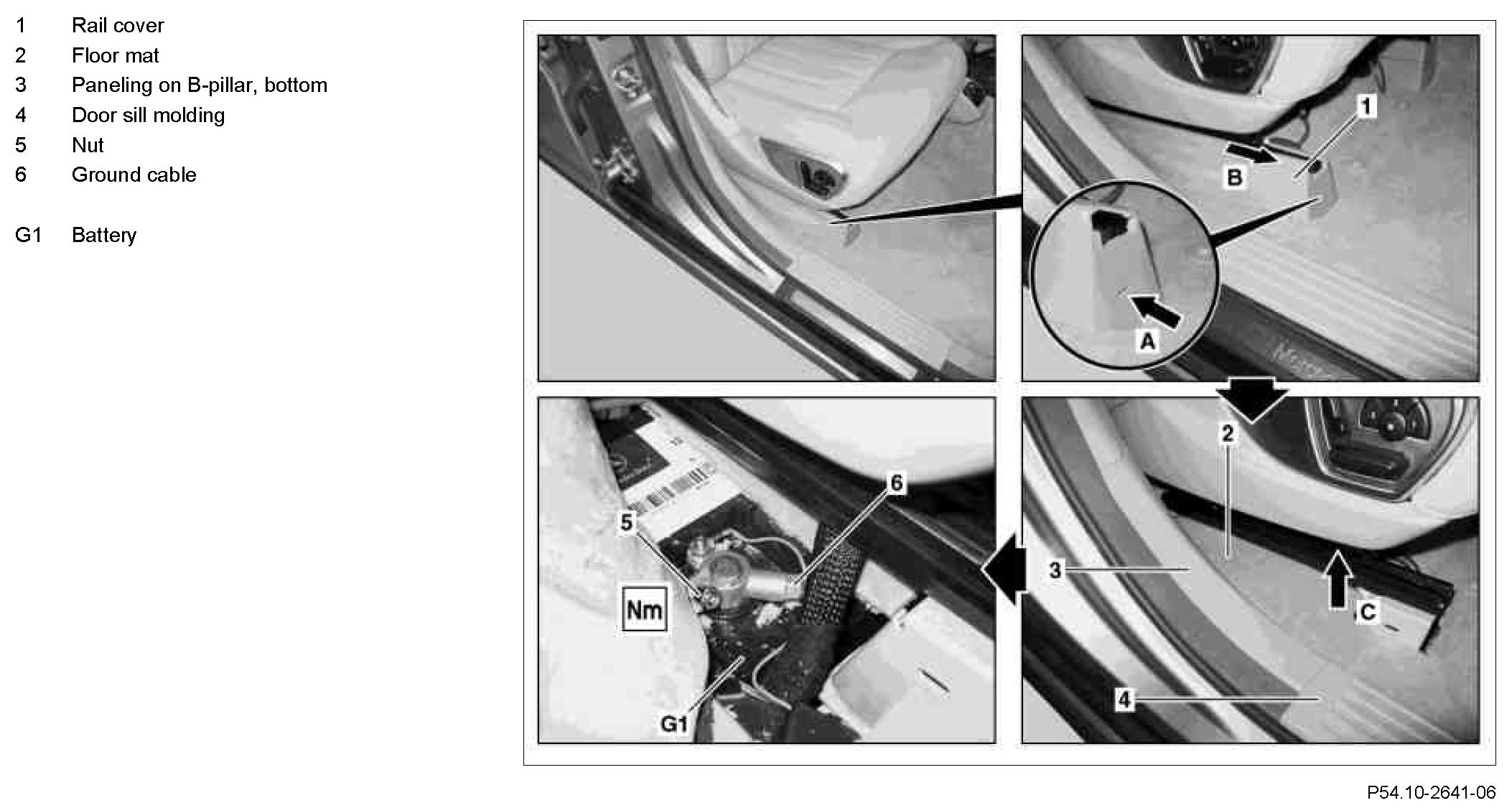

Component Identification:

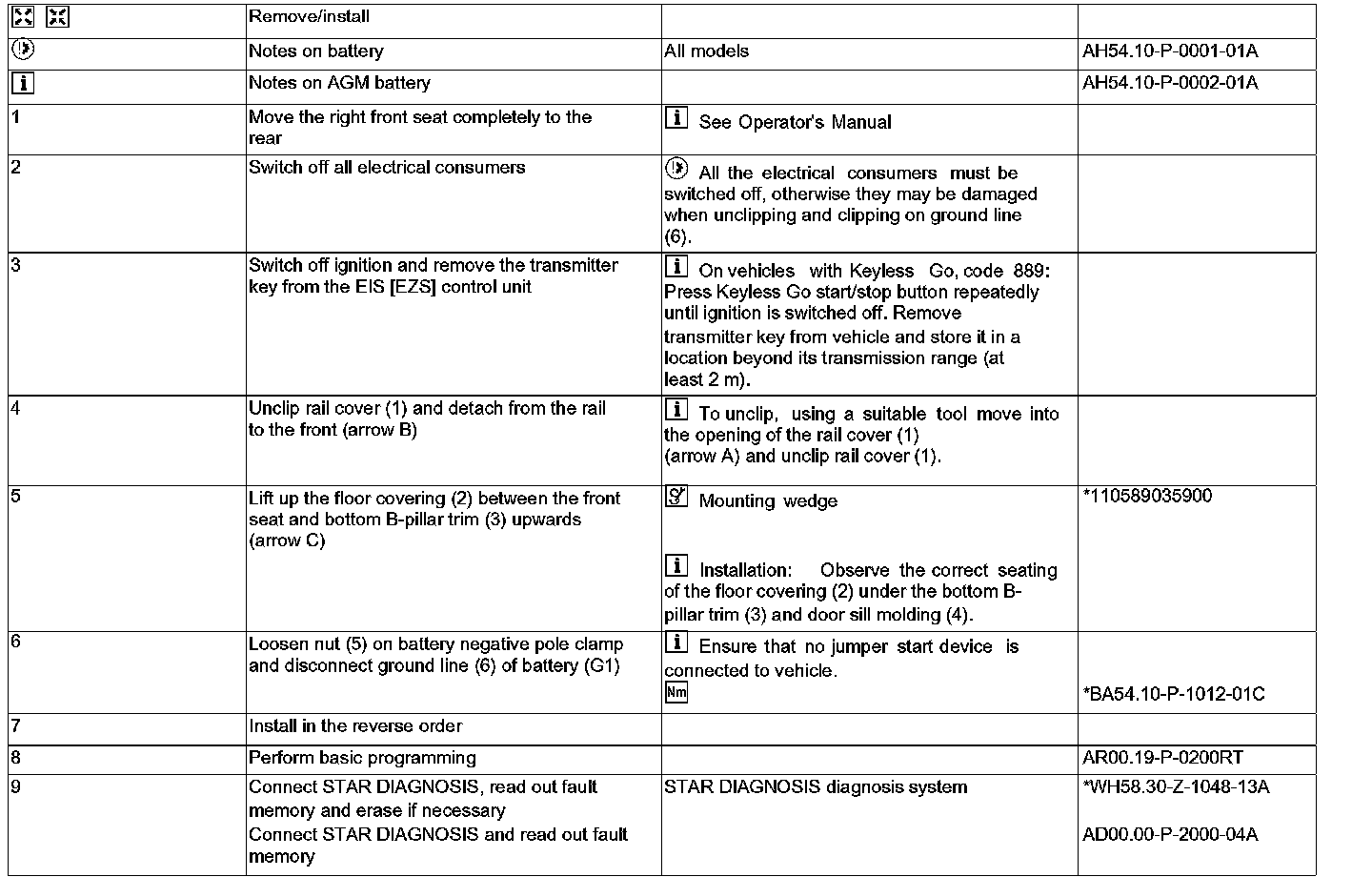

Steps 1- 9:

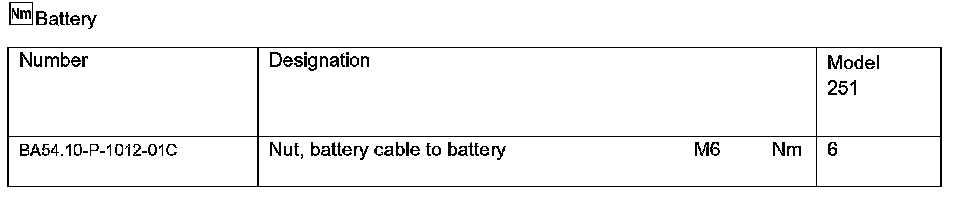

Battery:

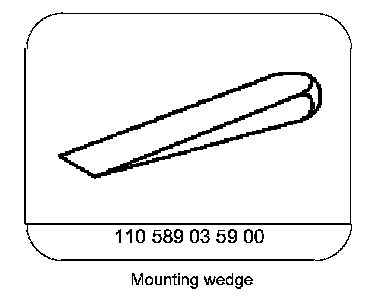

Special Tools:

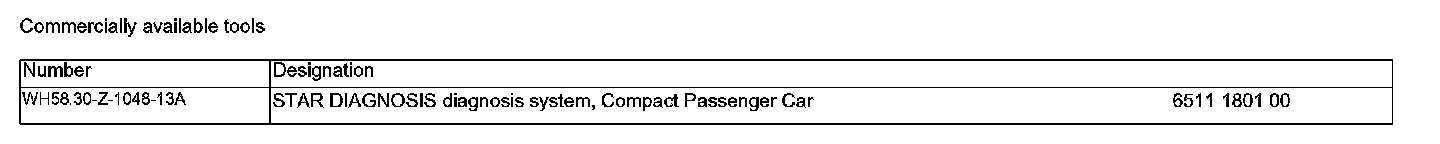

Commercially Available Tools:
