AR15.12-P-2003RTA Remove/Install Ignition Coils



Remove/Install Ignition Coils

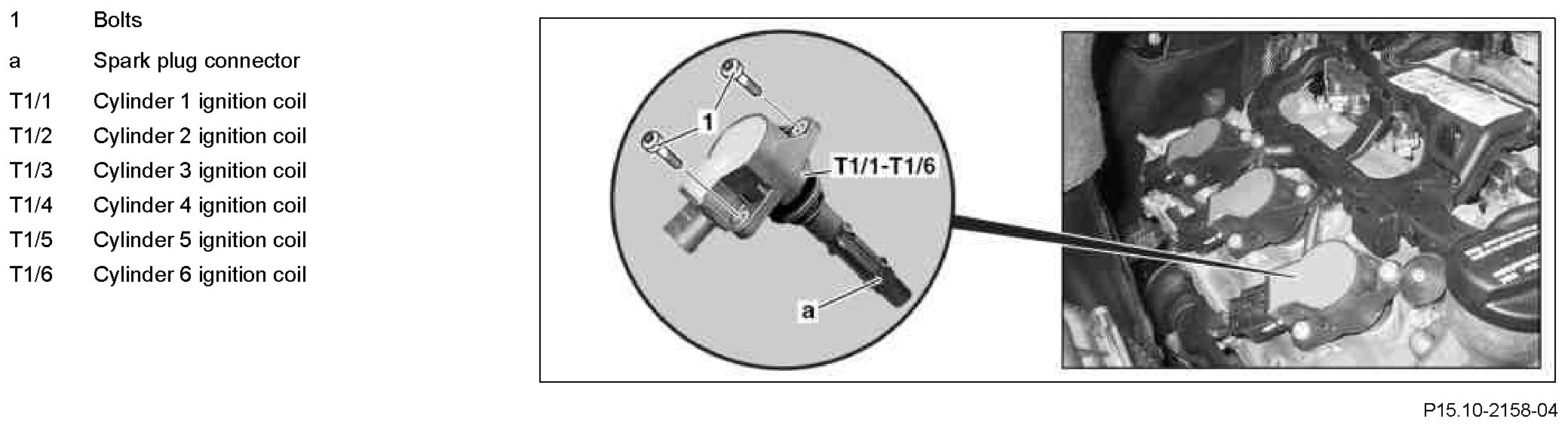

Component Identification:

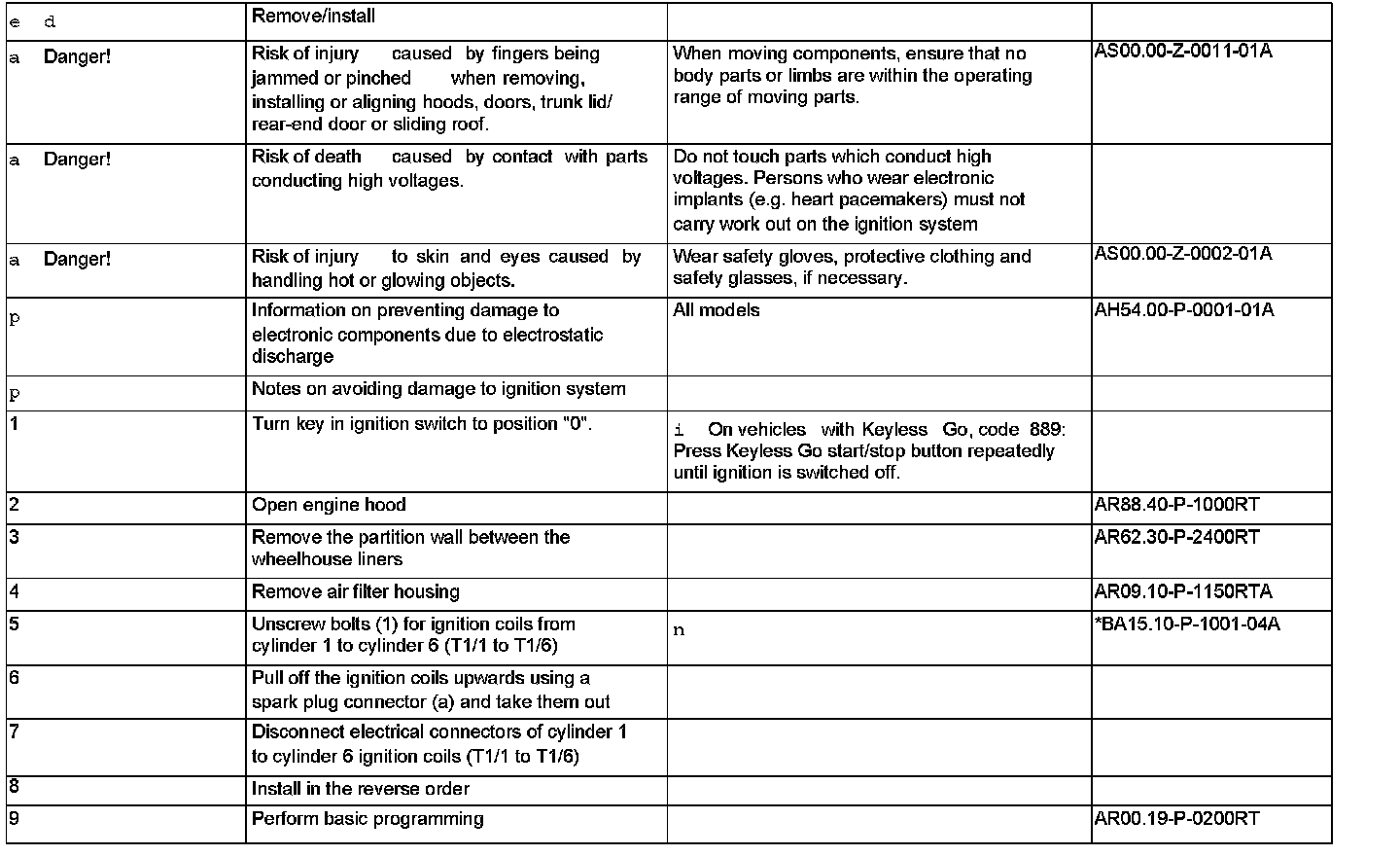

Steps 1 - 9:

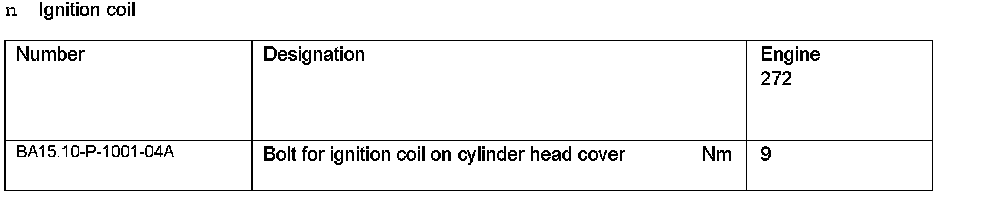

Ignition Coil:
