Engine Oil Level Indicator

Engine oil level indicator

Note: The vehicle must be horizontal for at least 5 minutes with the engine switched off at operating temperature. Otherwise measurement accuracy can be compromised.







1. Switch on ignition

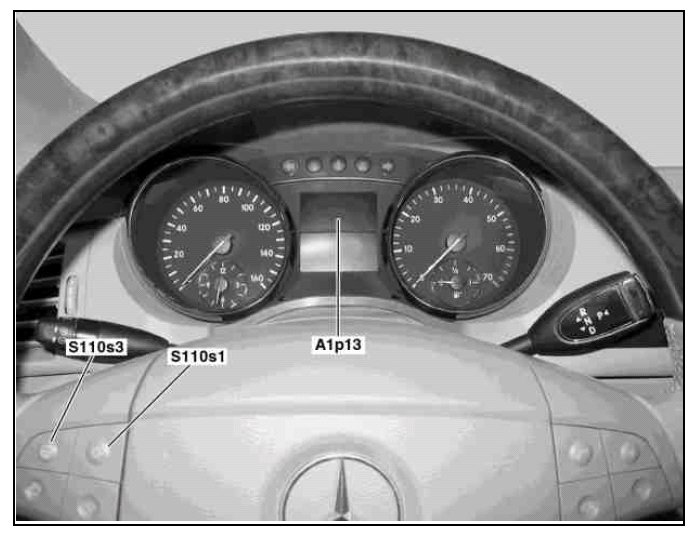

2. Press the system selection button (S110s3) repeatedly until the kilometer reading is displayed in the multifuntion display (A1p13).

3. Press the scroll back and forward button (S110s1) repeatedly until "Engine oil level measurement in progress" appears in multifunction display (A1p13).

4. Engine oil level is shown in multifuntion display (A1p13).

5. Correct the engine oil level if necessary and check engine oil level again.

6. Switch off the ignition.
