AR40.20-P-0331RT Check Rear Axle Camber
AR40.20-P-0331RT Check Rear Axle Camber
AR40.20-P-0331RT Check rear axle camber

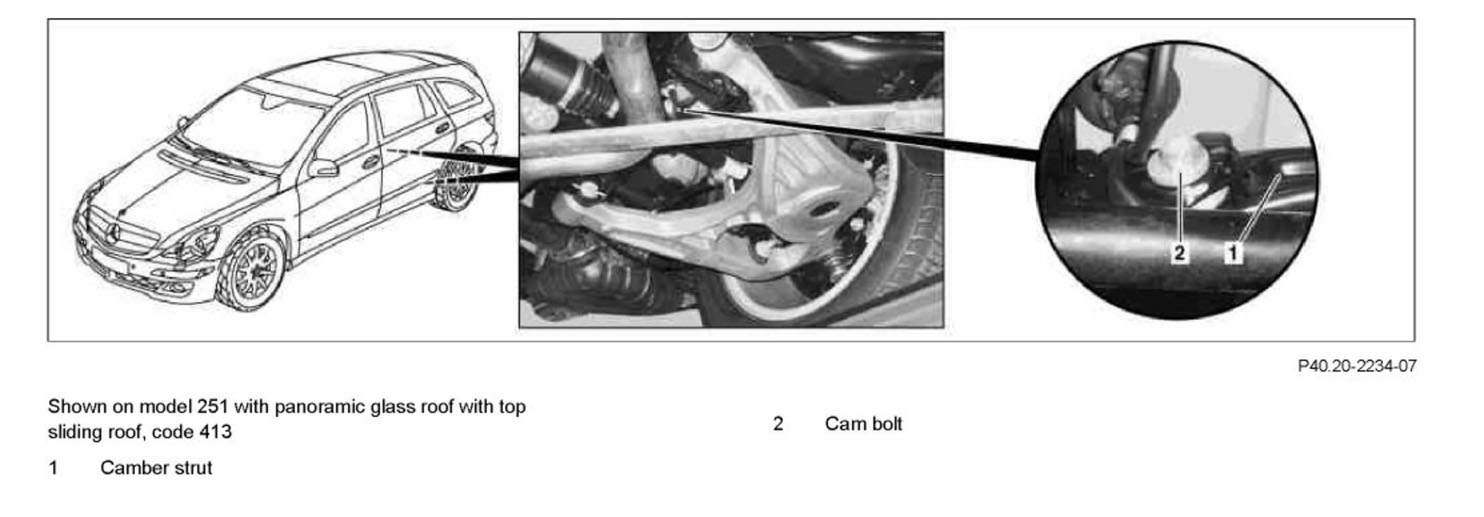

Component Identification:

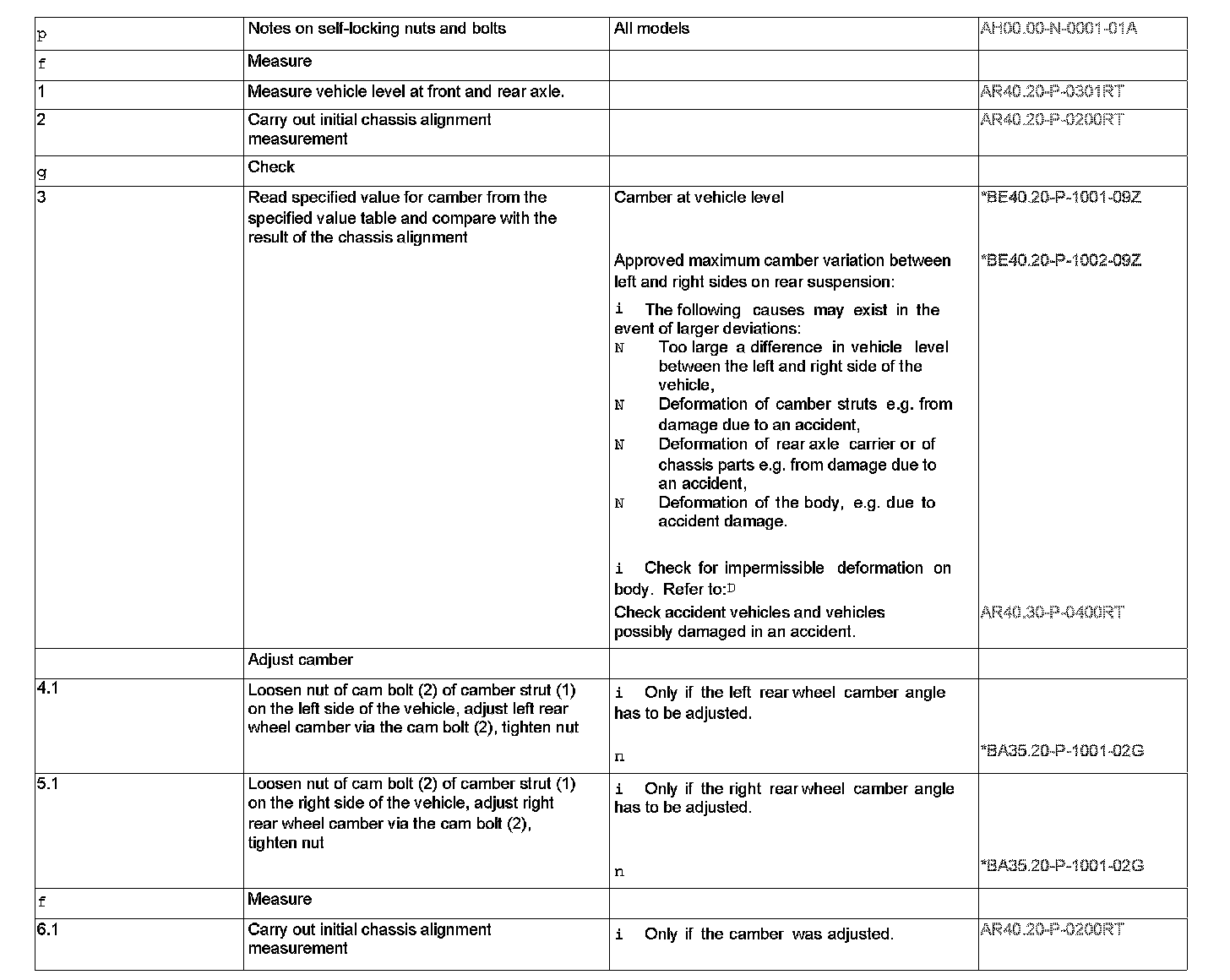

Steps 1-6.1:

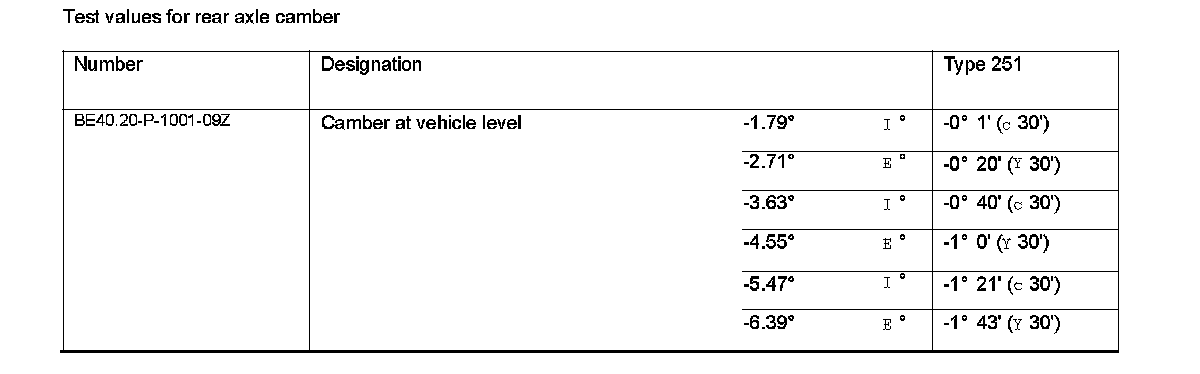

Test values for rear axle camber:

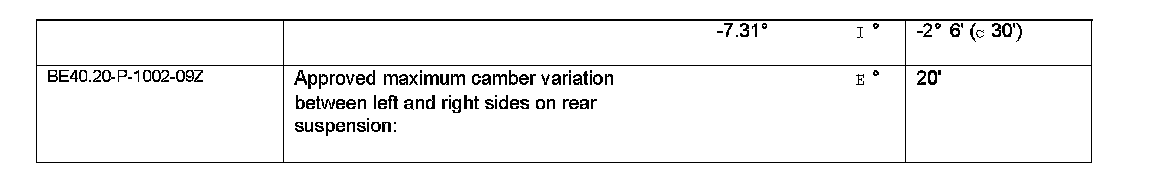

Test values for rear axle camber:

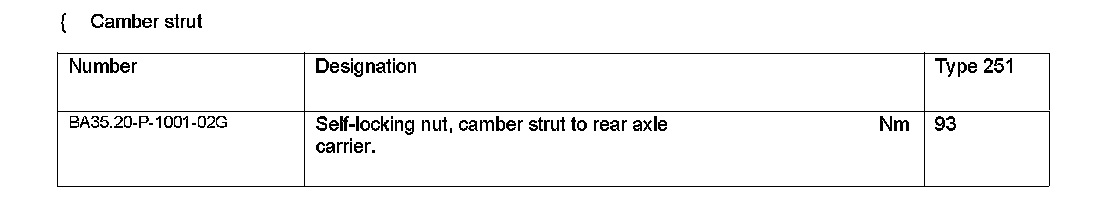

Camber strut:
